Product Specifications
| Manufacturer Part Number | 03278811 |
| Cutting Diameter (Decimal Inch) | 1.106" |
| Cutting Diameter (mm) | 28.09mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.181" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Thread Diameter Size | M16 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.606" |
| Minimum Helical Interpolation Hole Diameter (mm) | 66.18mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 2.471" |
| Overall Length (mm) | 62.75mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 6 Degree |
| Maximum Rotational Speed (rpm) | 19300 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |

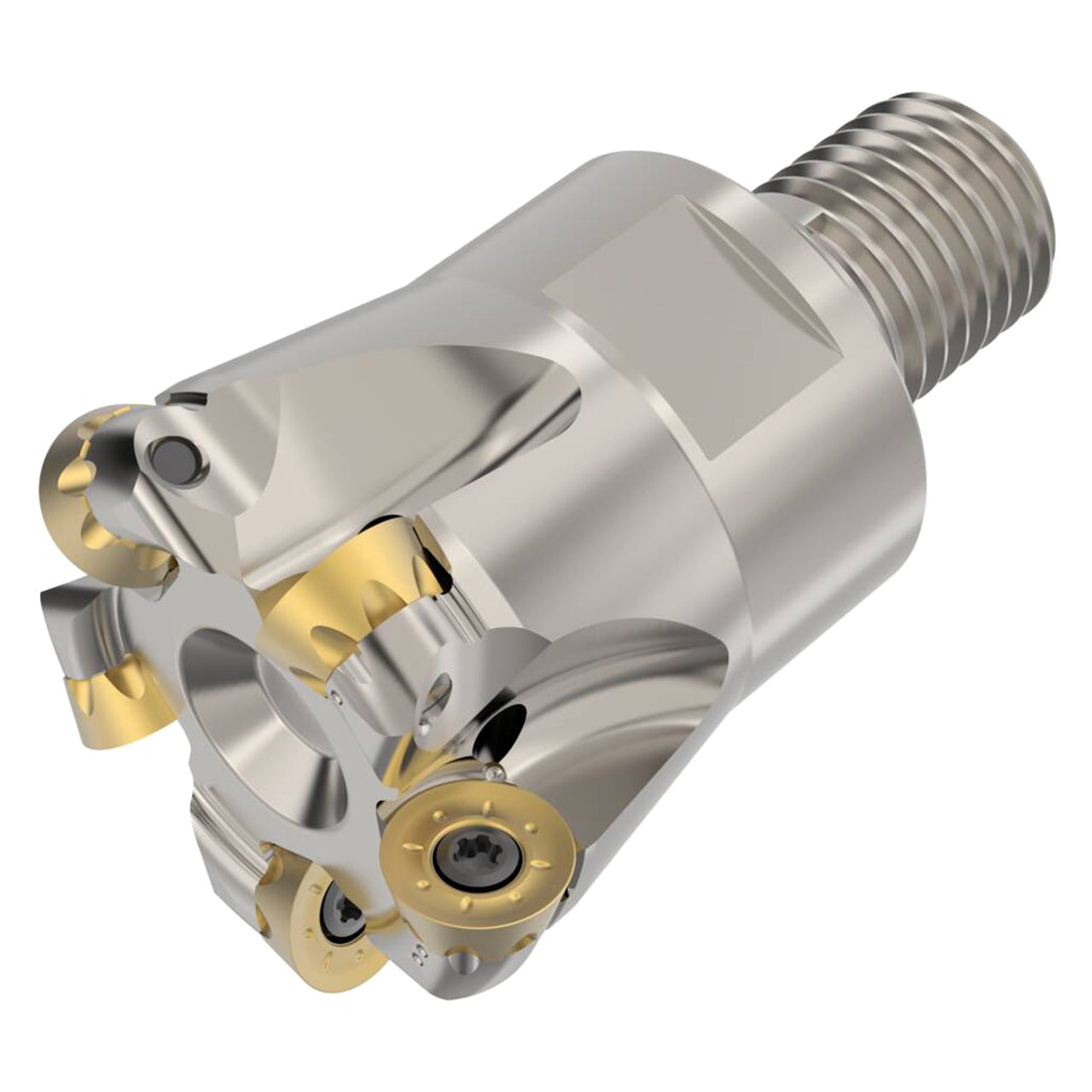

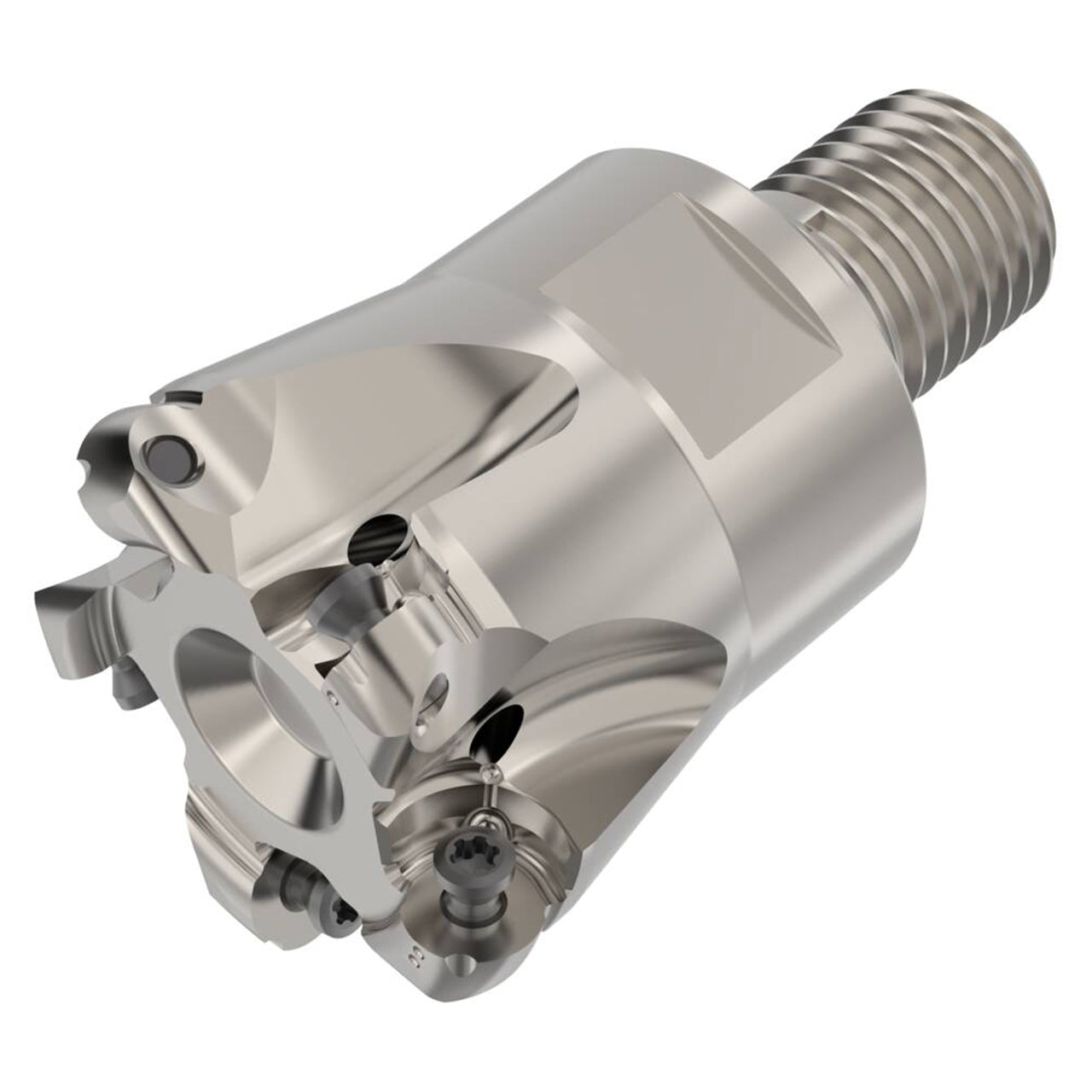

| Product Type | Indexable Copy End Mill |
