Product Specifications
| Manufacturer Part Number | 03278802 |
| Cutting Diameter (mm) | 22.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Maximum Cutting Diameter (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 62.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 54.00mm |
| Functional Length (mm) | 84.00mm |
| Protruding Length (mm) | 60.00mm |
| Shank Length (mm) | 59.50mm |
| Overall Length (mm) | 119.50mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 8.7 Degree |
| Maximum Rotational Speed (rpm) | 21600 rpm |
| Insert Shape Code | R |
| Shank Type | Weldon |

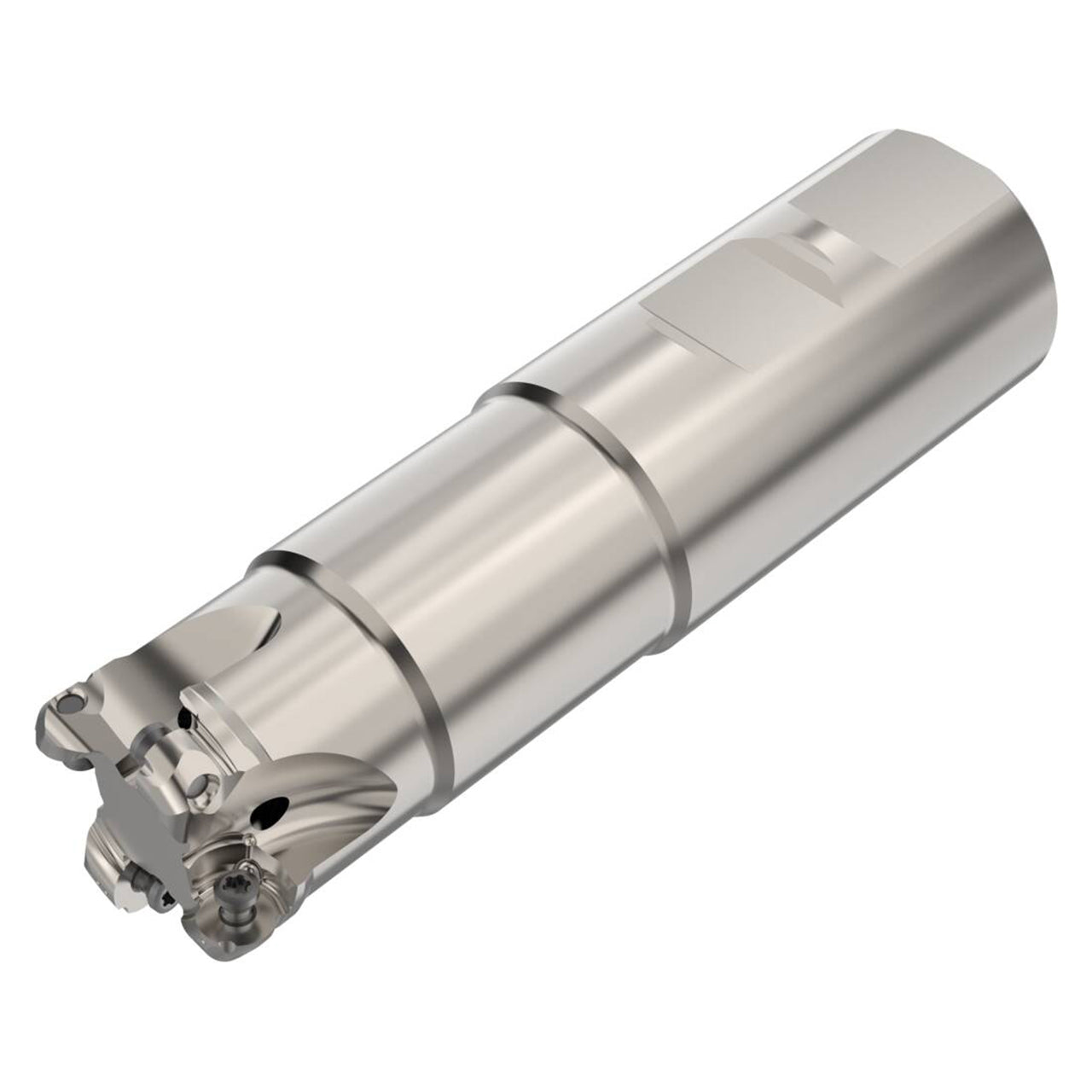

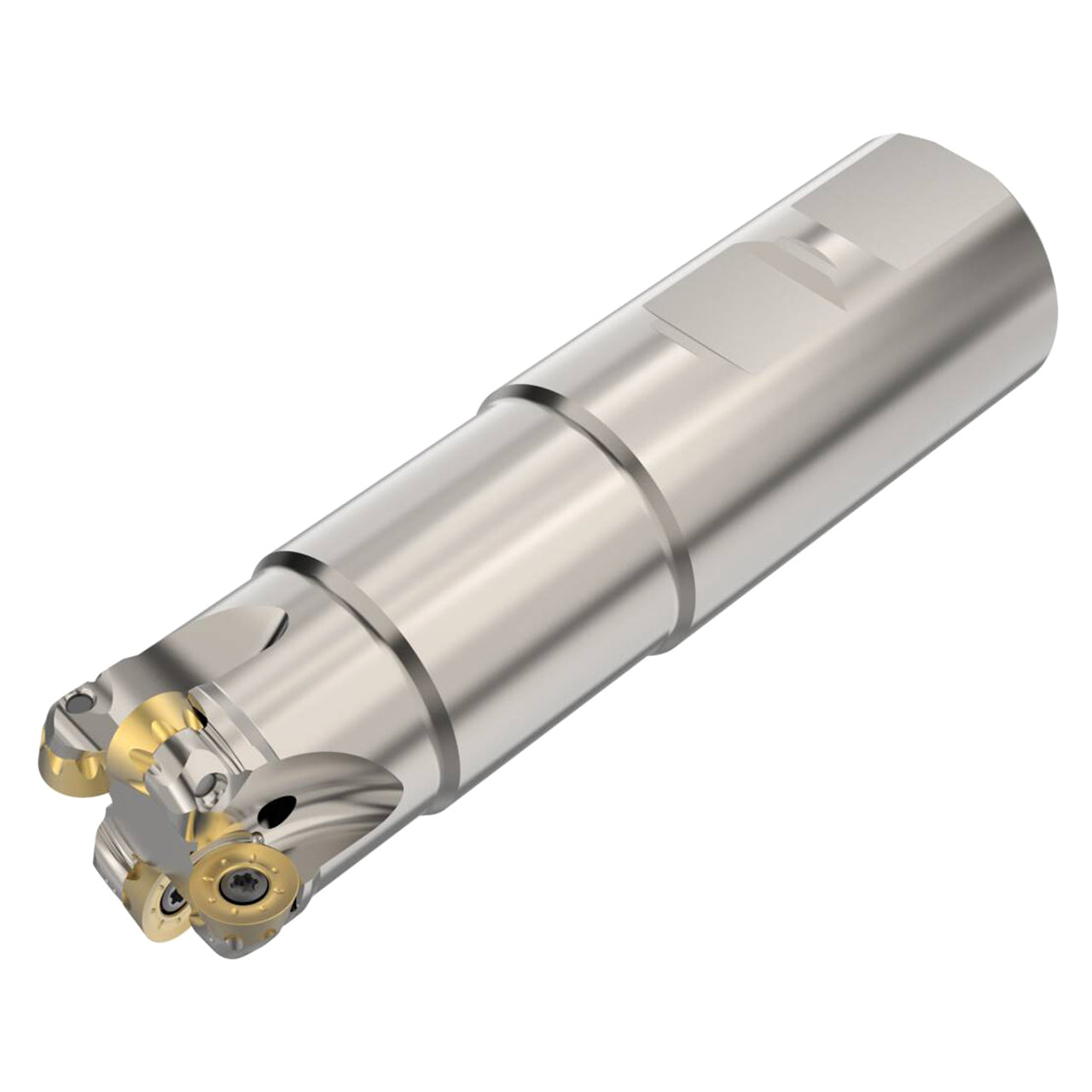

| Product Type | Indexable Copy End Mill |
