Product Specifications
| Manufacturer Part Number | 03278796 |
| Cutting Diameter (mm) | 5.90mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 21.80mm |
| Protruding Length (mm) | 100.00mm |
| Shank Length (mm) | 90.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | -5 Degree |
| Maximum Ramping Angle (Degree) | 6.9 Degree |
| Maximum Rotational Speed (rpm) | 29900 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |

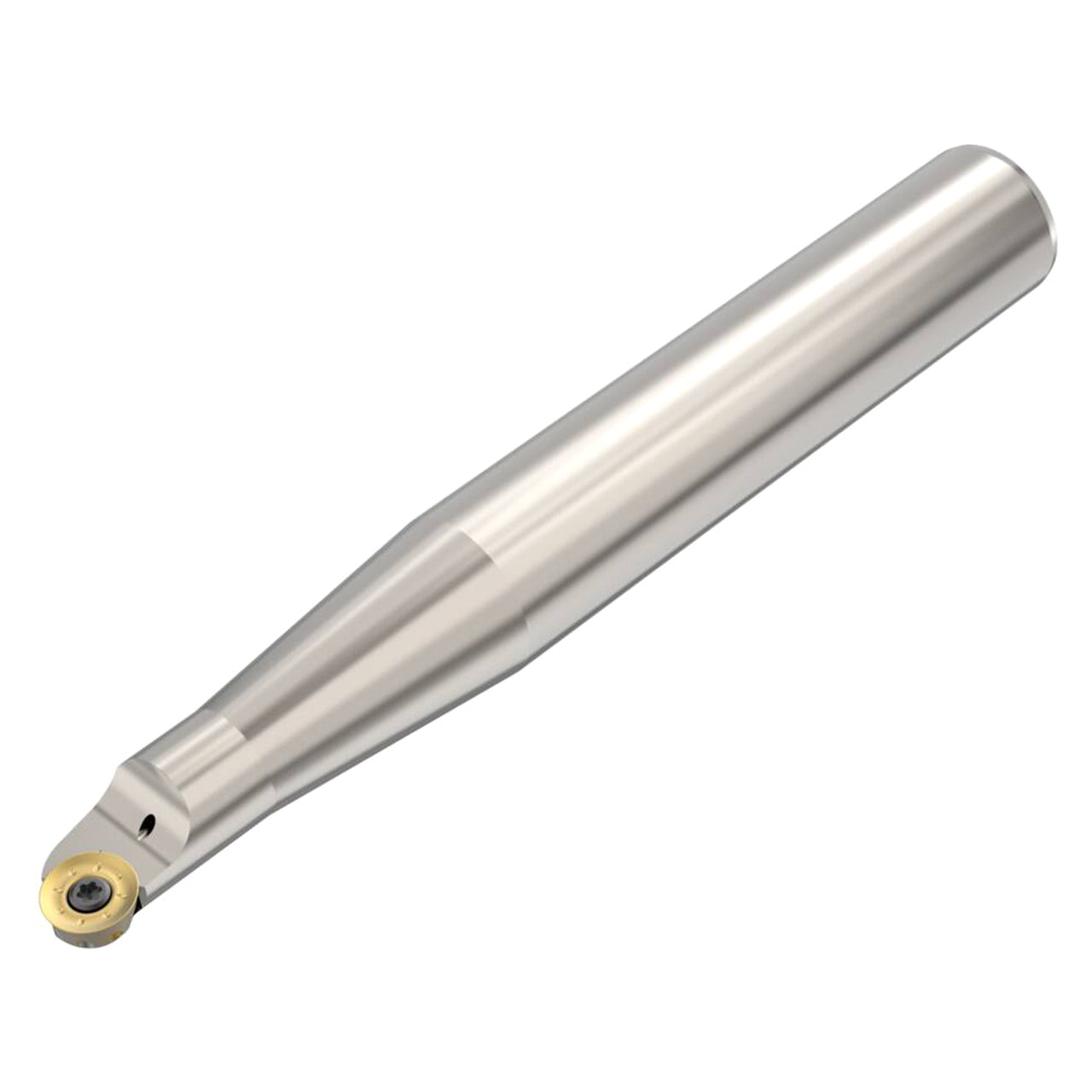

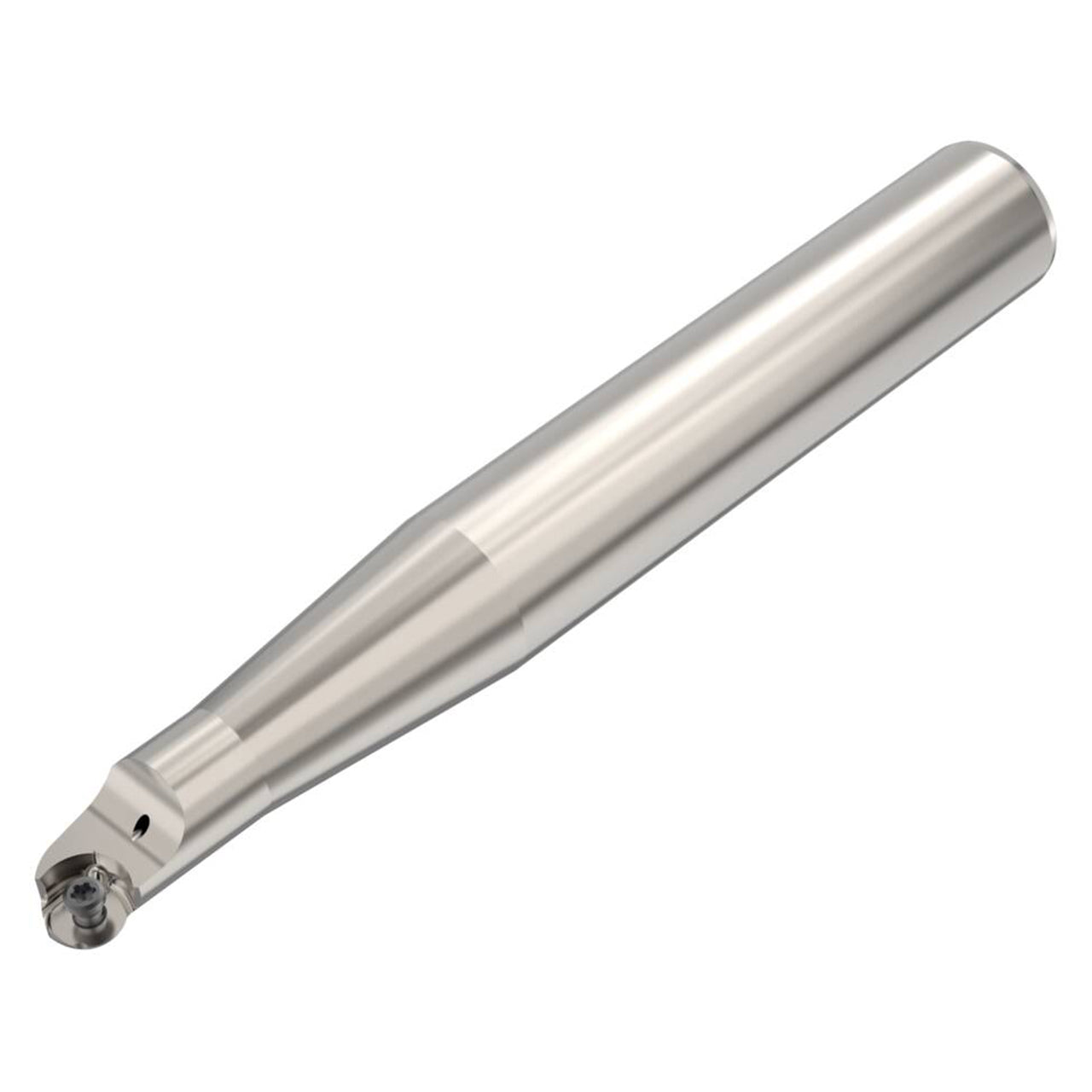

| Product Type | Indexable Copy End Mill |
