Product Specifications
| Manufacturer Part Number | 03278791 |
| Cutting Diameter (mm) | 30.20mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 70.40mm |
| Functional Length (mm) | 40.00mm |
| Overall Length (mm) | 67.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 5.9 Degree |
| Maximum Rotational Speed (rpm) | 19300 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |

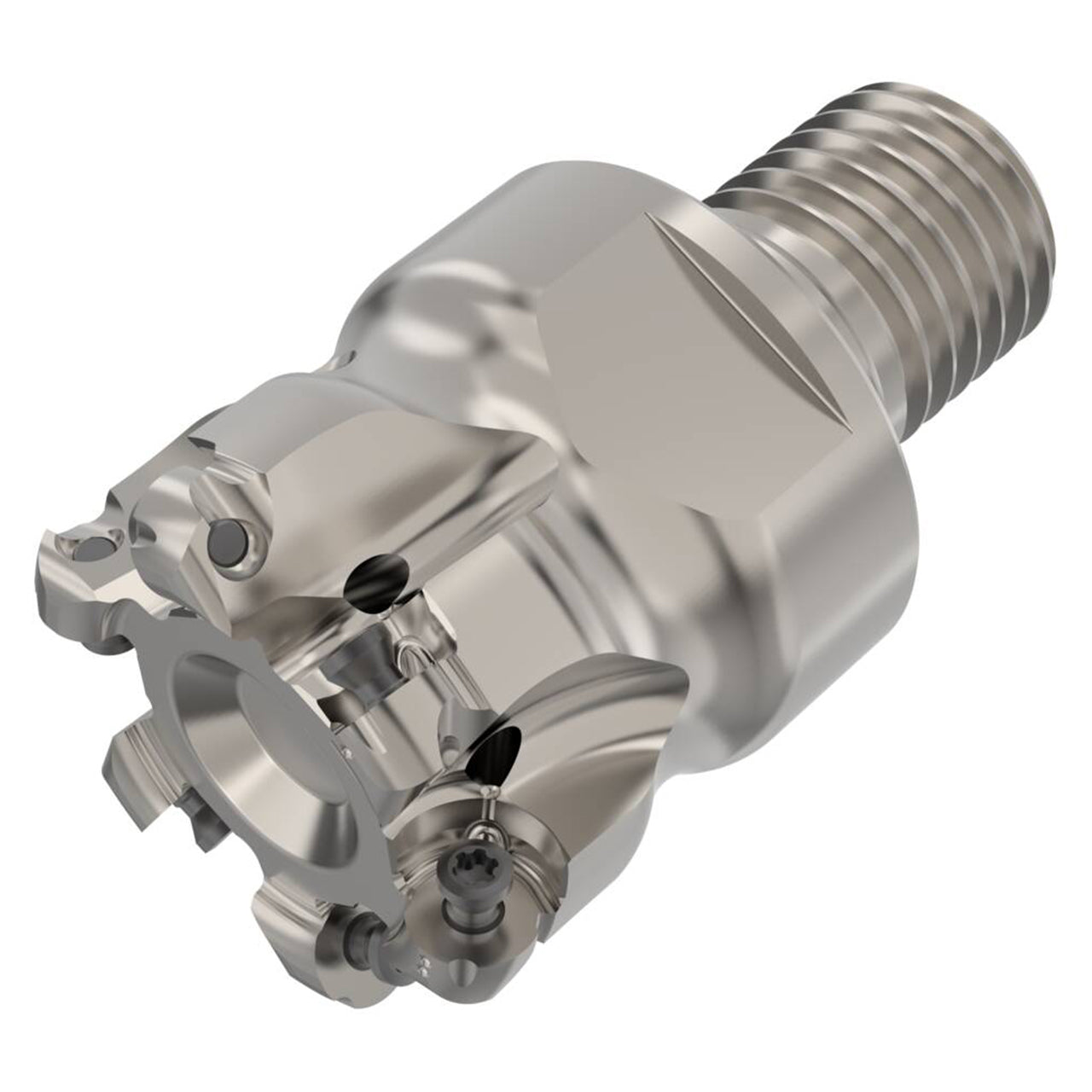

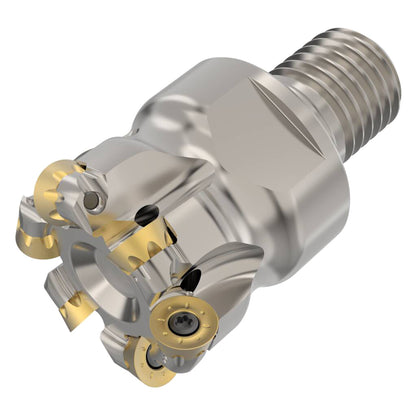

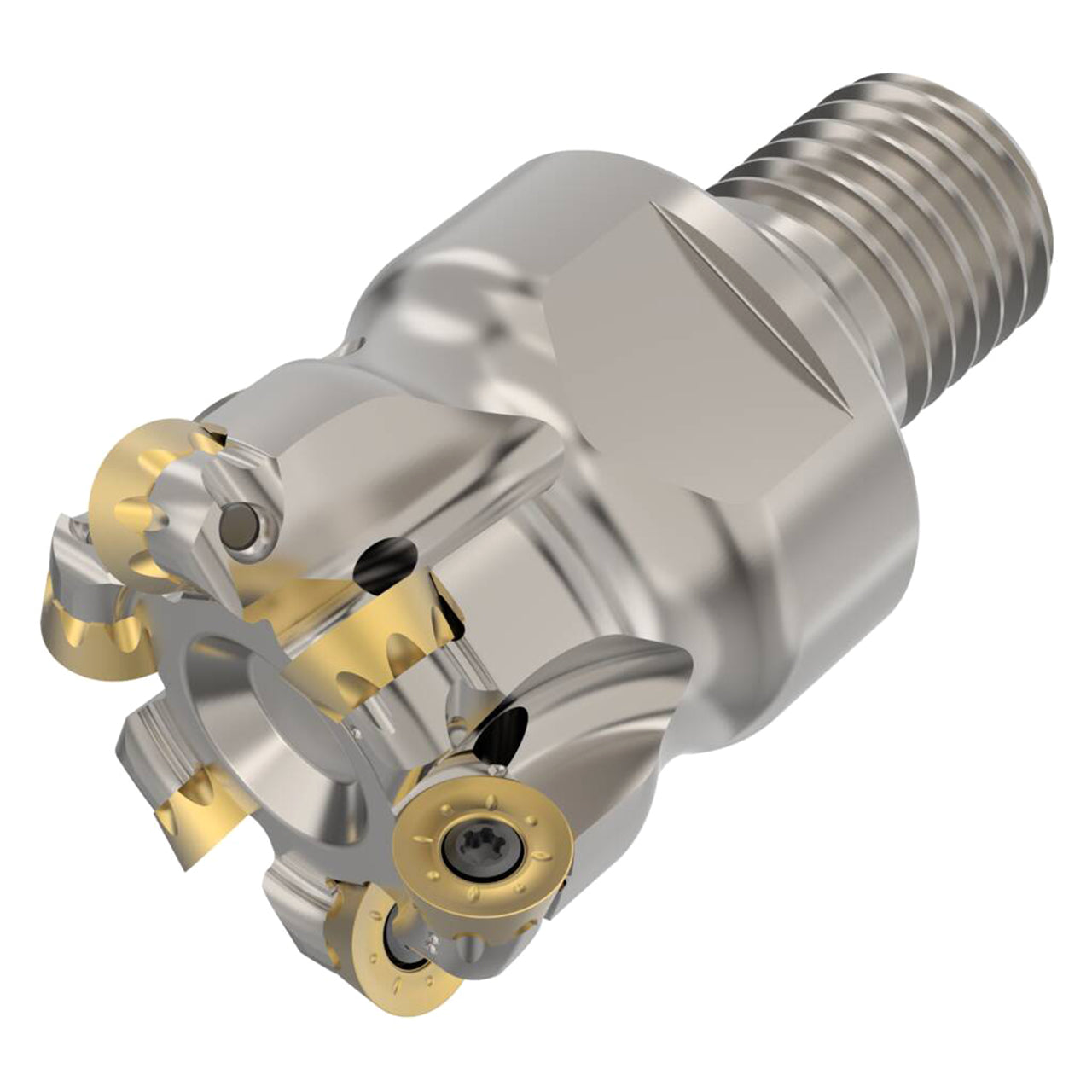

| Product Type | Indexable Copy End Mill |
