Product Specifications
| Manufacturer Part Number | 03277886 |
| Cutting Diameter (Decimal Inch) | 4.000" |
| Cutting Diameter (mm) | 101.60mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.437" |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Body Diameter (Decimal Inch) | 1.297" |
| Body Diameter (mm) | 32.95mm |
| Body Length (Decimal Inch) | 0.445" |
| Body Length (mm) | 11.29mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Cutting Width (Decimal Inch) | 0.156" |
| Cutting Width (mm) | 3.97mm |
| Maximum Depth of Cut (Decimal Inch) | 0.156" |
| Maximum Depth of Cut (mm) | 3.97mm |
| Maximum Cutting Depth (Decimal Inch) | 1.319" |
| Maximum Cutting Depth (mm) | 33.50mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 13500 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 335.19-1102 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

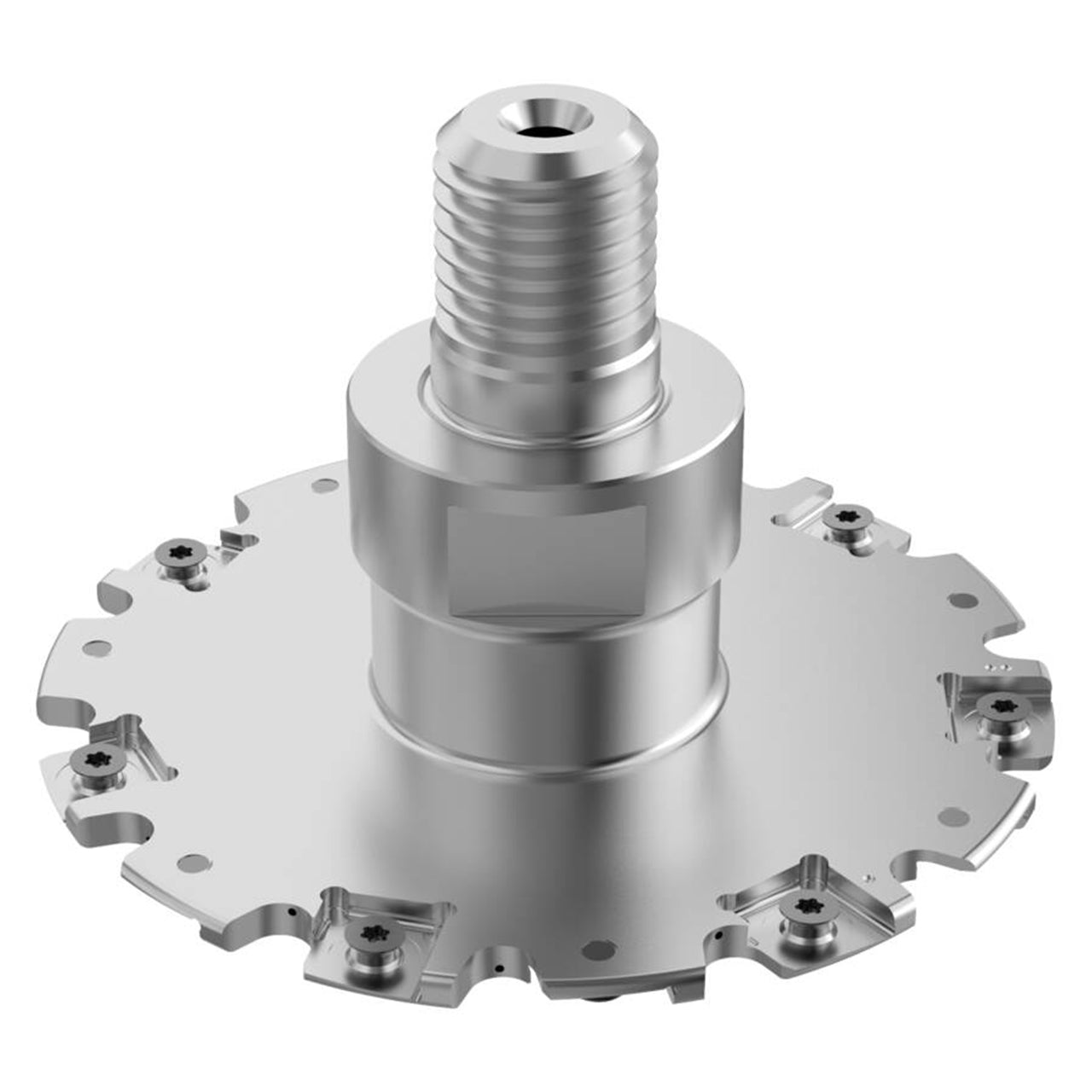

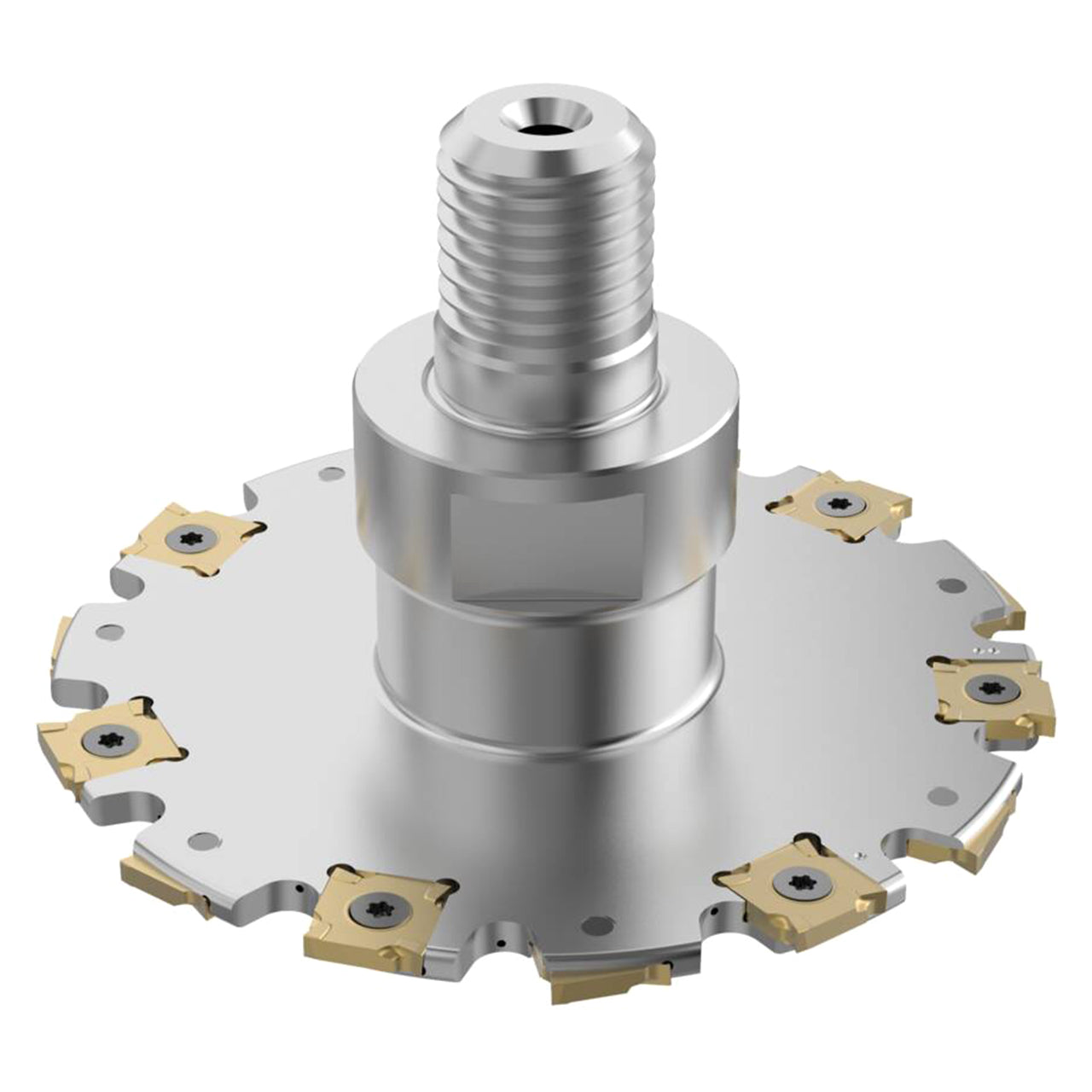

| Product Type | Indexable Slotting Cutter |
