Product Specifications
| Manufacturer Part Number | 03277876 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.728" |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Body Diameter (Decimal Inch) | 0.543" |
| Body Diameter (mm) | 13.80mm |
| Body Length (Decimal Inch) | 0.295" |
| Body Length (mm) | 7.50mm |
| Functional Length (Decimal Inch) | 0.906" |
| Functional Length (mm) | 23.00mm |
| Cutting Width (Decimal Inch) | 0.187" |
| Cutting Width (mm) | 4.76mm |
| Maximum Depth of Cut (Decimal Inch) | 0.187" |
| Maximum Depth of Cut (mm) | 4.76mm |
| Maximum Cutting Depth (Decimal Inch) | 0.445" |
| Maximum Cutting Depth (mm) | 11.30mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -18 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 19100 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 335.19-1103 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

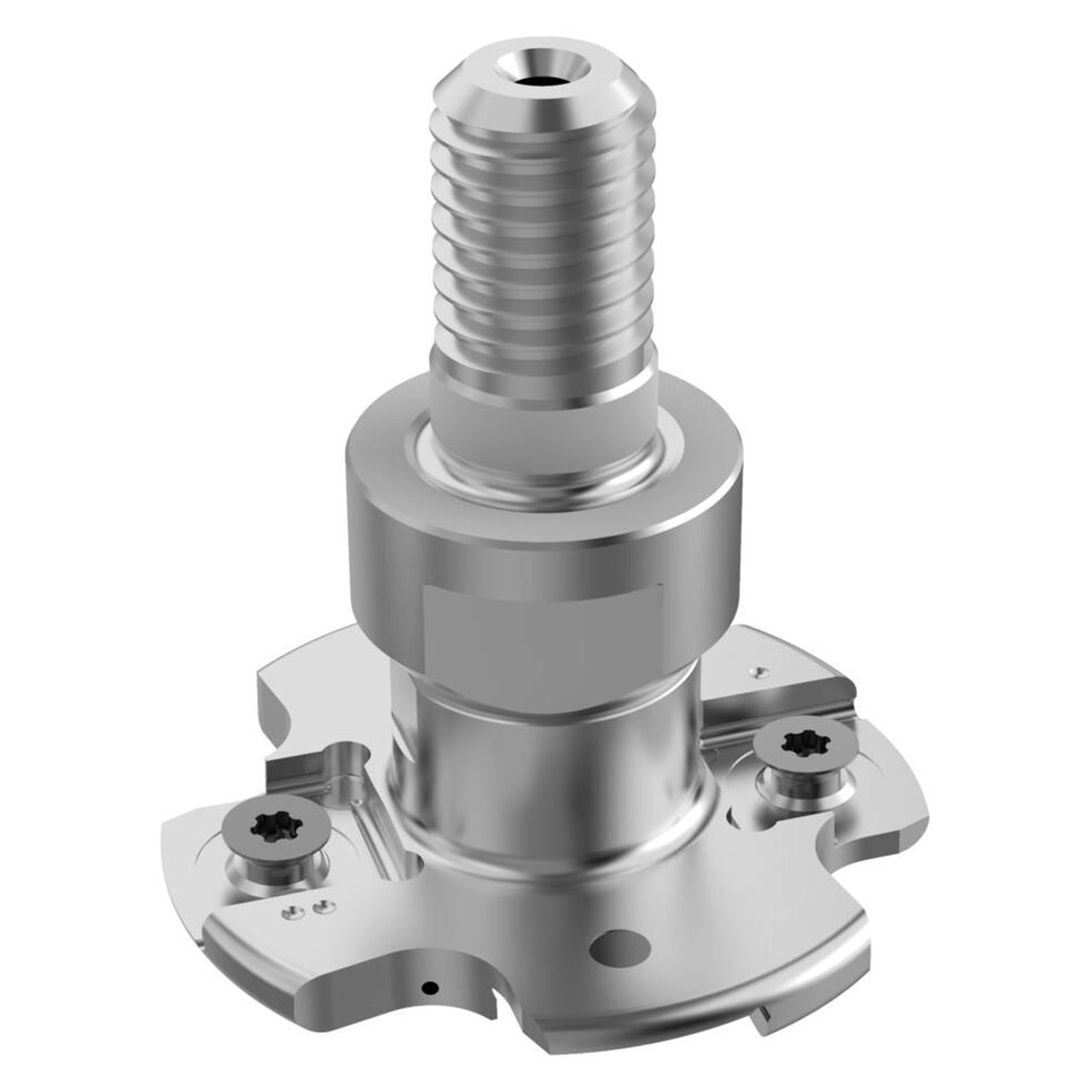

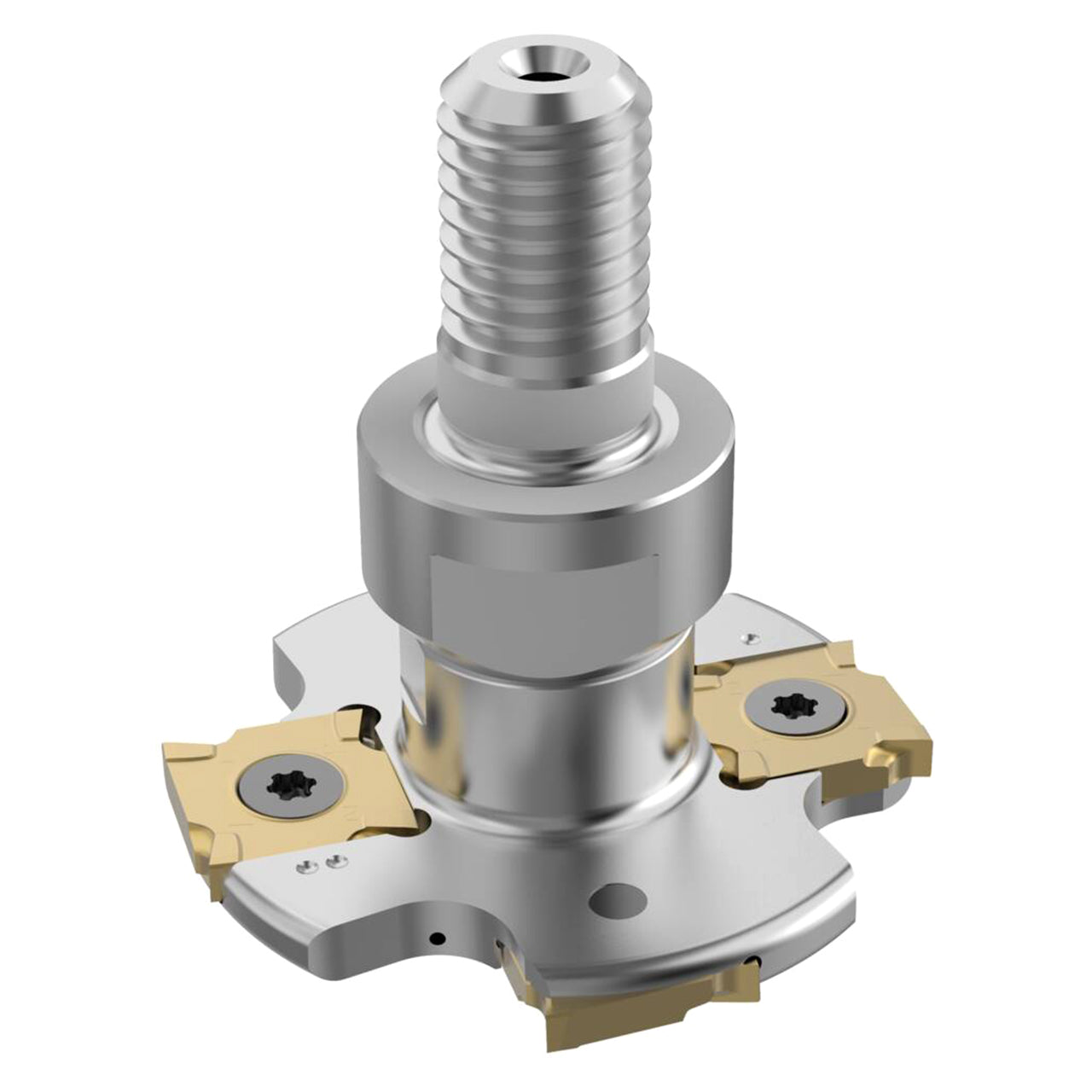

| Product Type | Indexable Slotting Cutter |
