Product Specifications
| Manufacturer Part Number | 03277858 |
| Cutting Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Body Diameter (mm) | 15.00mm |
| Body Length (mm) | 7.28mm |
| Functional Length (mm) | 23.00mm |
| Cutting Width (mm) | 5.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Cutting Depth (mm) | 11.60mm |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -18 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 18700 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 335.19-1103 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

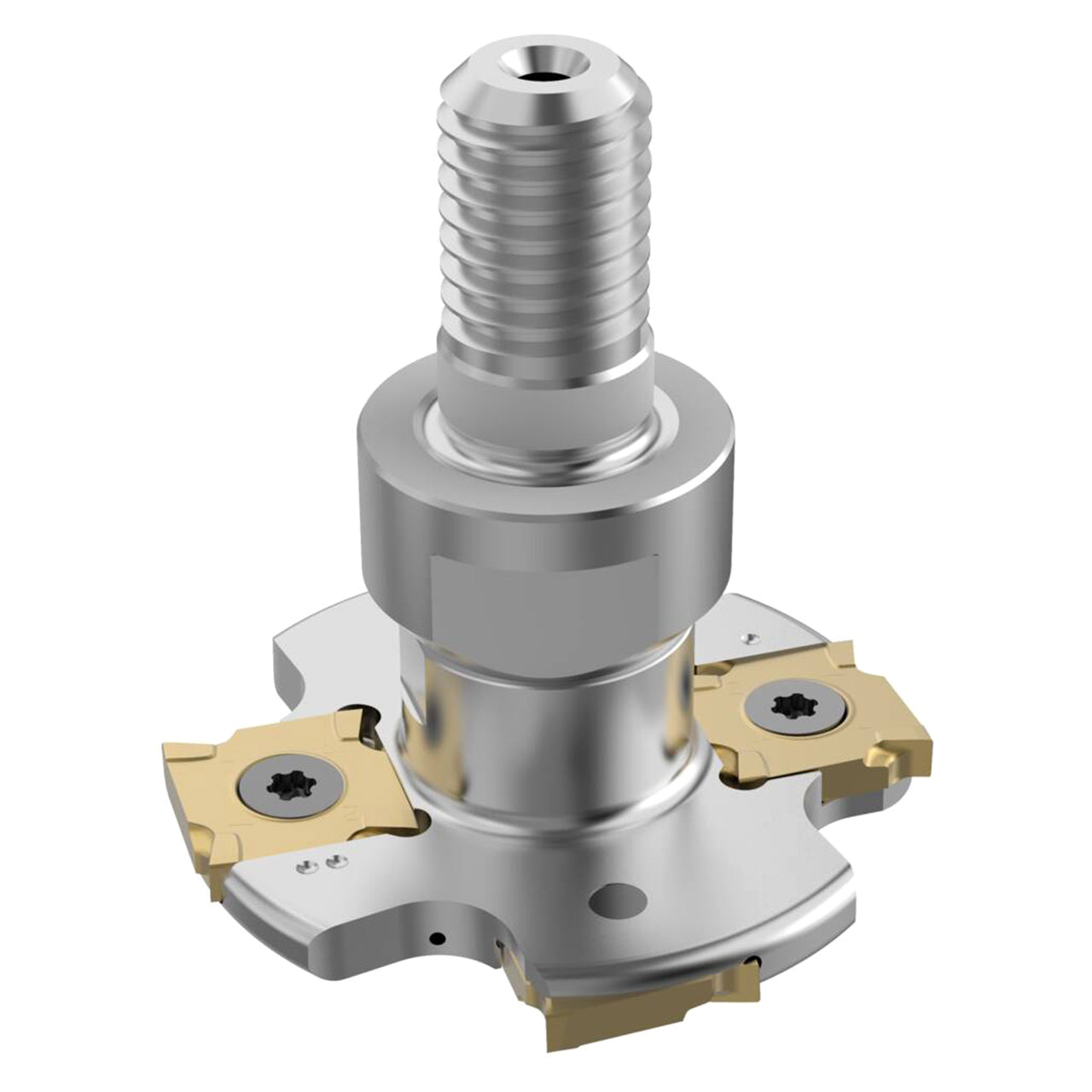

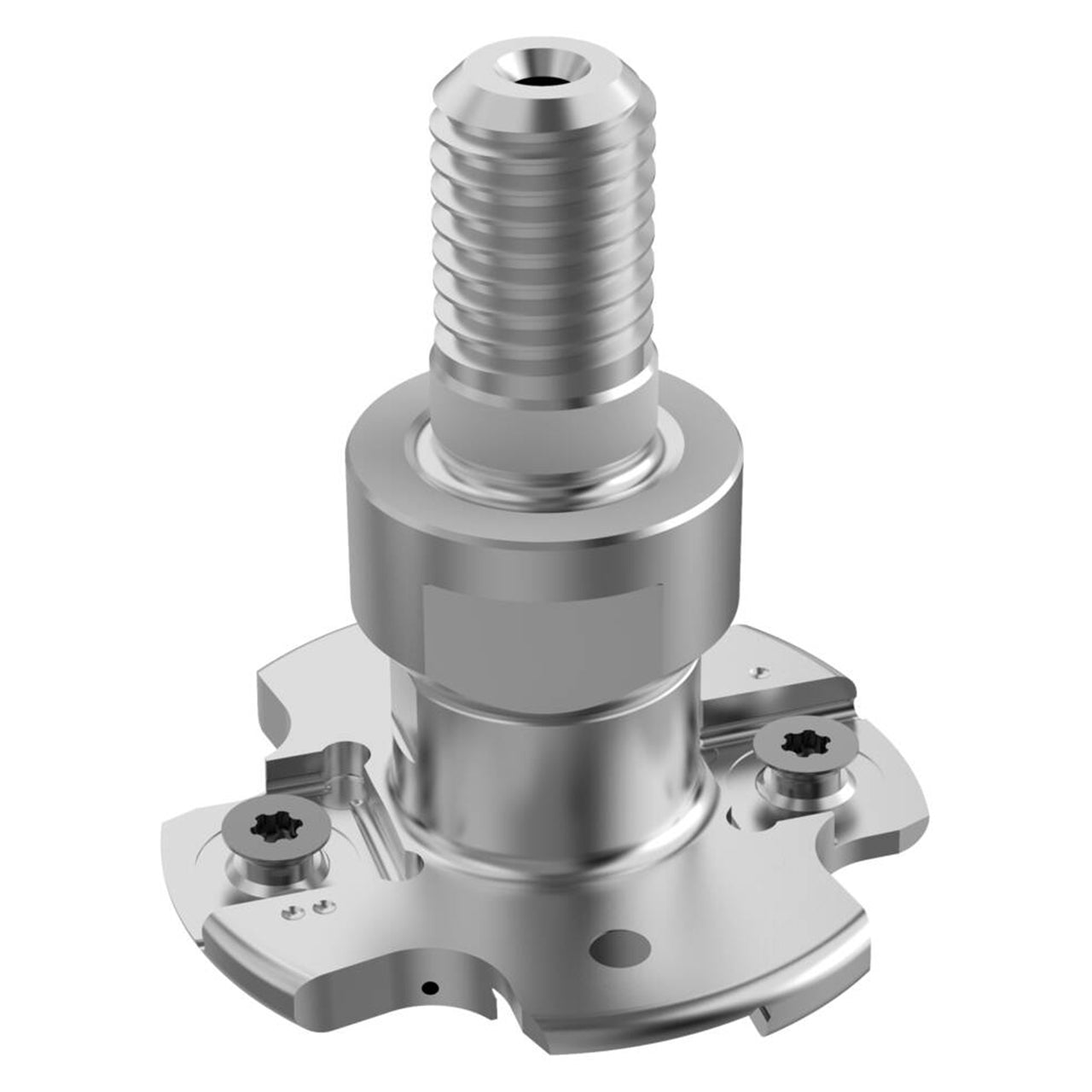

| Product Type | Indexable Slotting Cutter |
