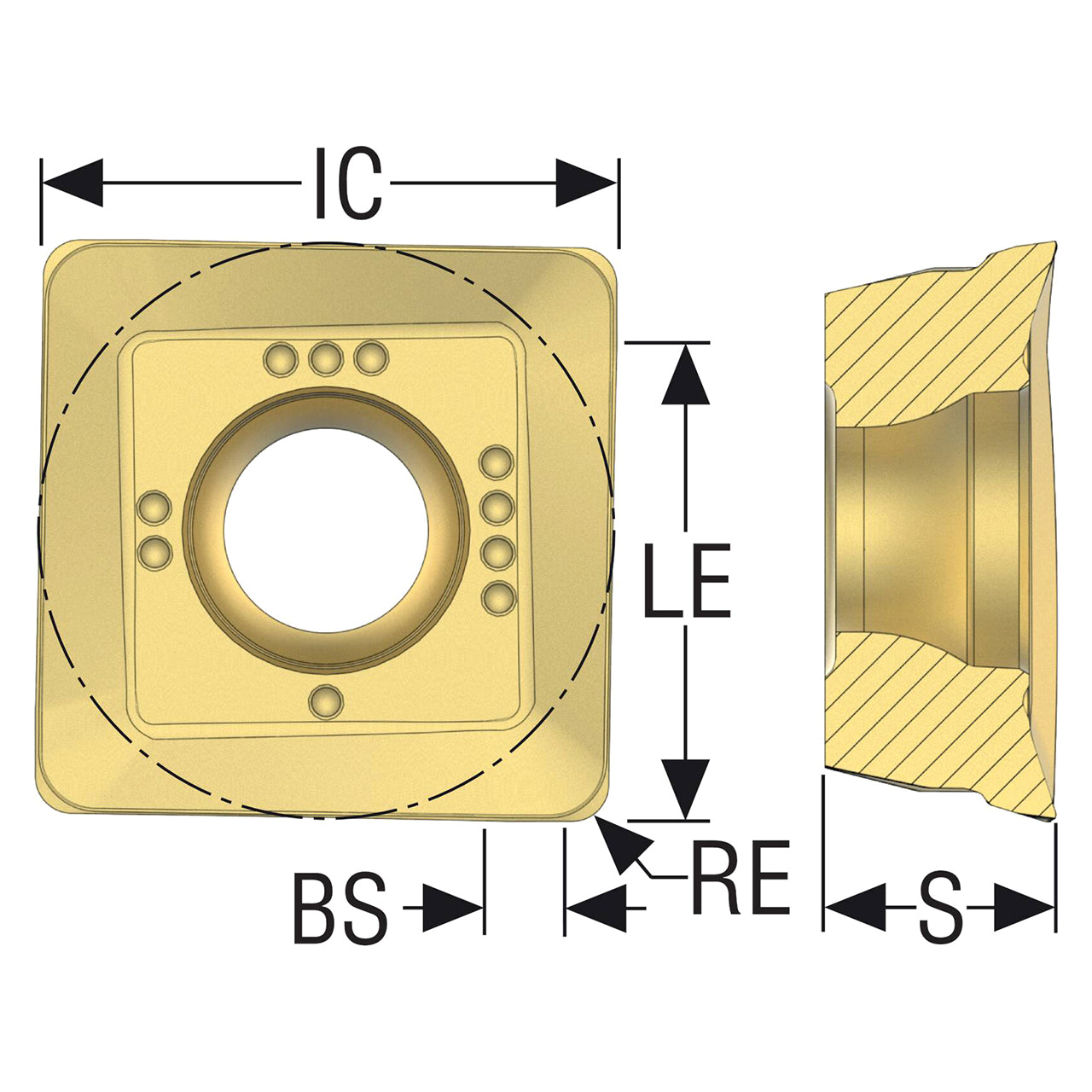

Product Specifications
| Manufacturer Part Number | 03273279 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.433" |
| Cutting Edge Effective Length (mm) | 11.00mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.500" |
| Theoretical Cutting Edge Length (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.039" |
| Wiper Edge Length (mm) | 1.00mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.204" |
| Insert Thickness (mm) | 5.17mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M12 |
| Pocket Seat Code of The Cutter | SO.X1205 |
| Insert Size And Shape | SONX1205 |
| Material | Carbide |

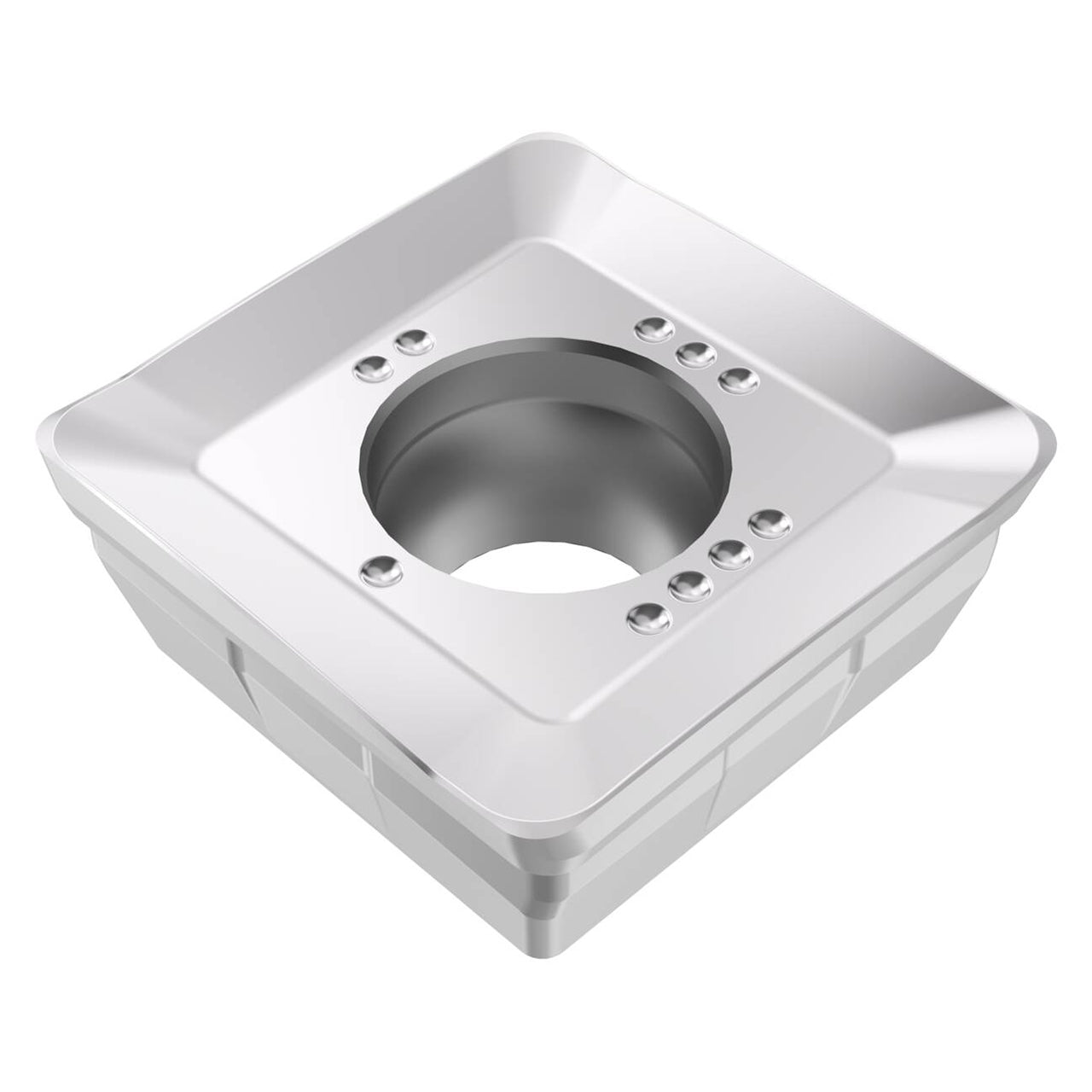

| Product Type | Face Milling Insert |
