Product Specifications
| Manufacturer Part Number | 03252422 |
| Cutting Diameter (mm) | 39.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 49.00mm |
| Maximum Cutting Diameter (mm) | 51.98mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 101.96mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 90.98mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.85mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Programming Radius (mm) | 3.45mm |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Maximum Ramping Angle (Degree) | 2.1 Degree |
| Maximum Rotational Speed (rpm) | 24400 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |

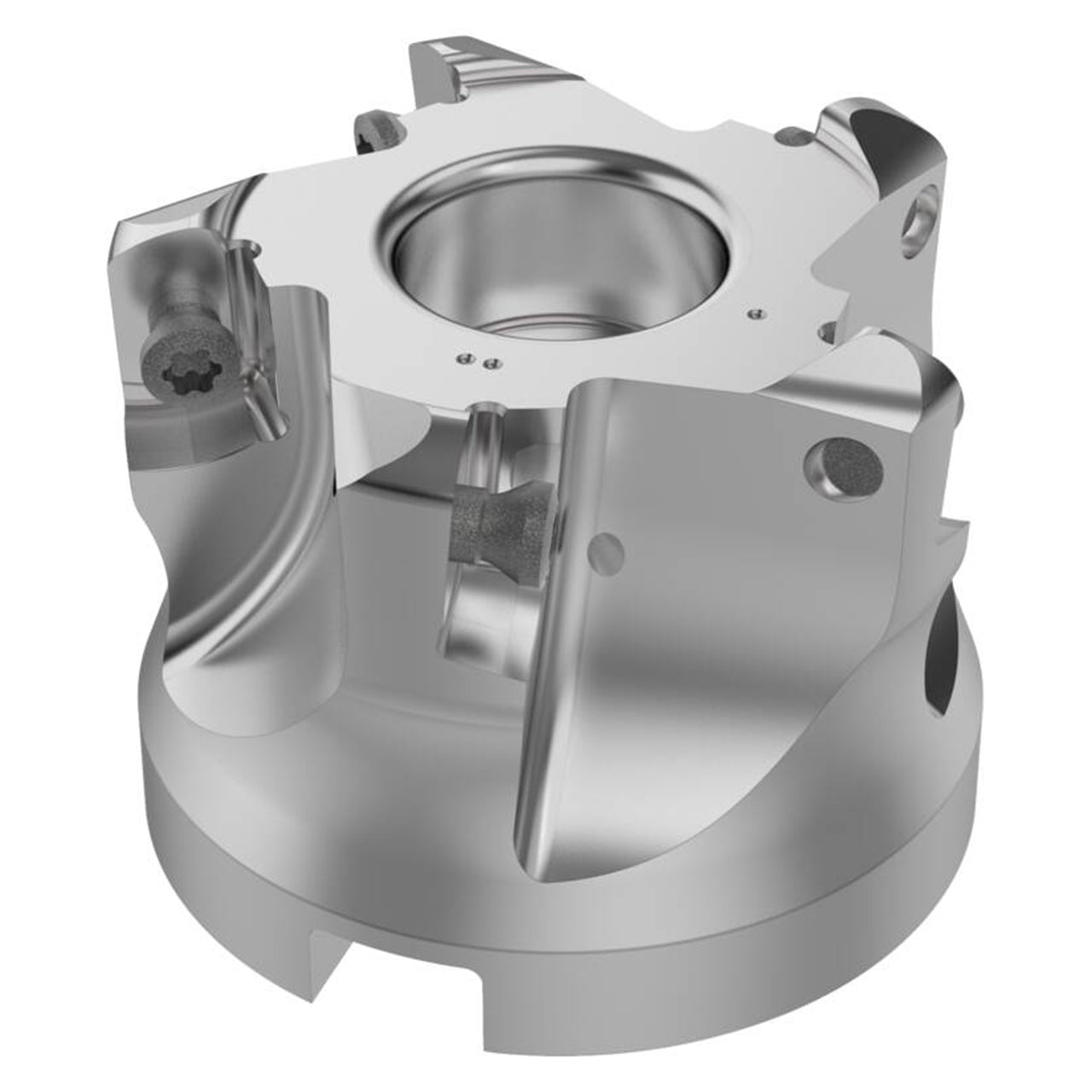

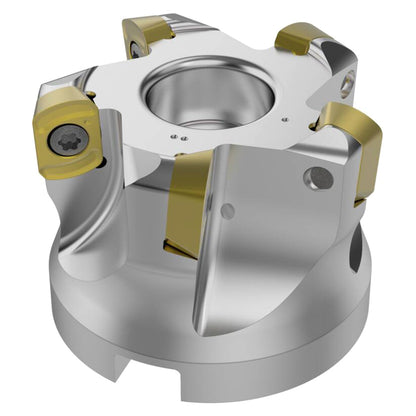

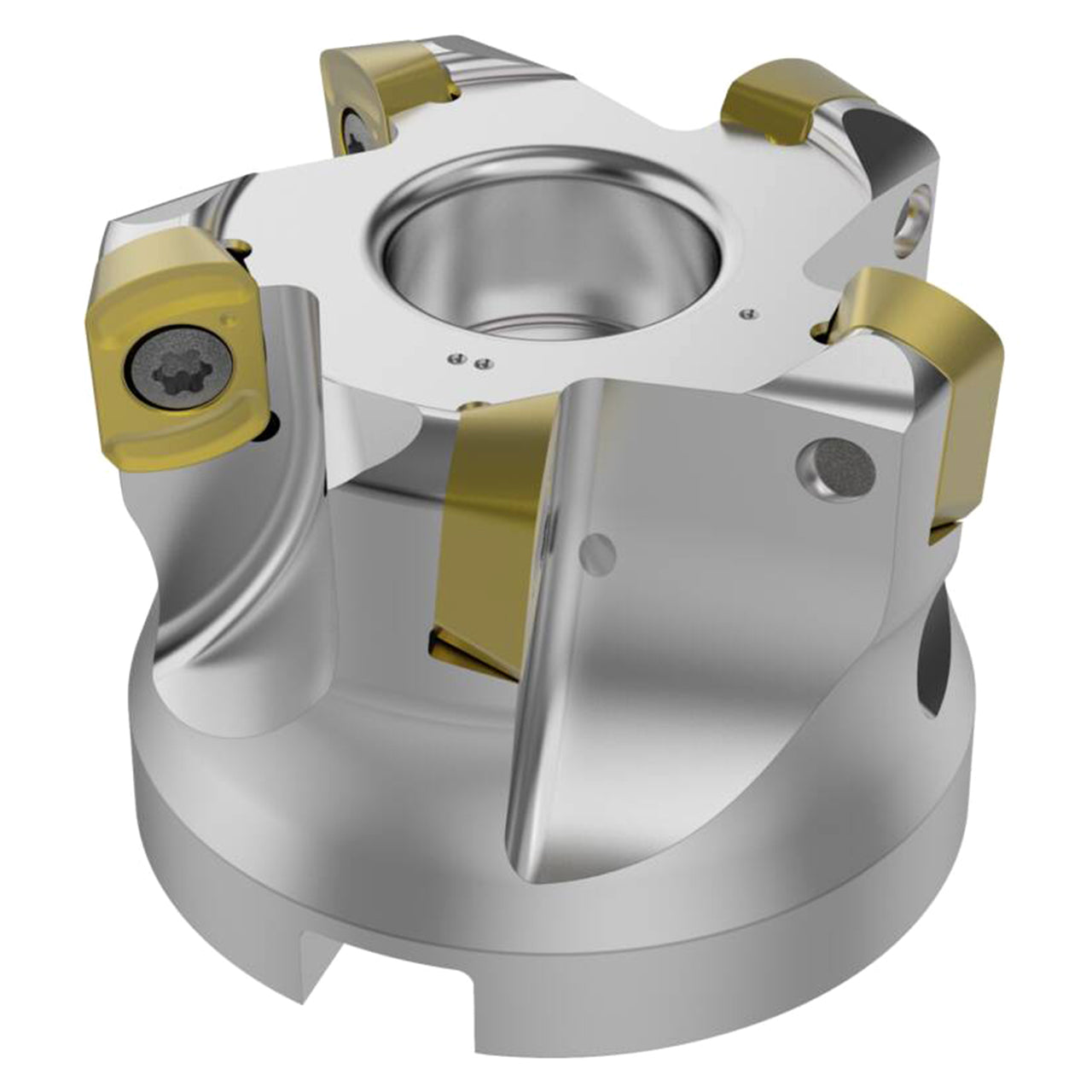

| Product Type | Indexable High-Feed End Mill |
