Product Specifications
| Manufacturer Part Number | 03245963 |
| Cutting Diameter (Decimal Inch) | 7.874" |
| Cutting Diameter (mm) | 200.00mm |
| Body Diameter (Decimal Inch) | 8.484" |
| Body Diameter (mm) | 215.50mm |
| Diameter Bolt Circle 1 (Decimal Inch) | 4.000" |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Connection Bore Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.118" |
| Contact Surface Diameter Machine Side (mm) | 130.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 8.150" |
| Maximum Cutting Diameter (mm) | 207.00mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.315" |
| Depth of Key Way (Decimal Inch) | 0.551" |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (Decimal Inch) | 1.000" |
| Keyway Width (mm) | 25.40mm |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | bar |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -8.59 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 71 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 71 Degree |
| Maximum Rotational Speed (rpm) | 4200 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

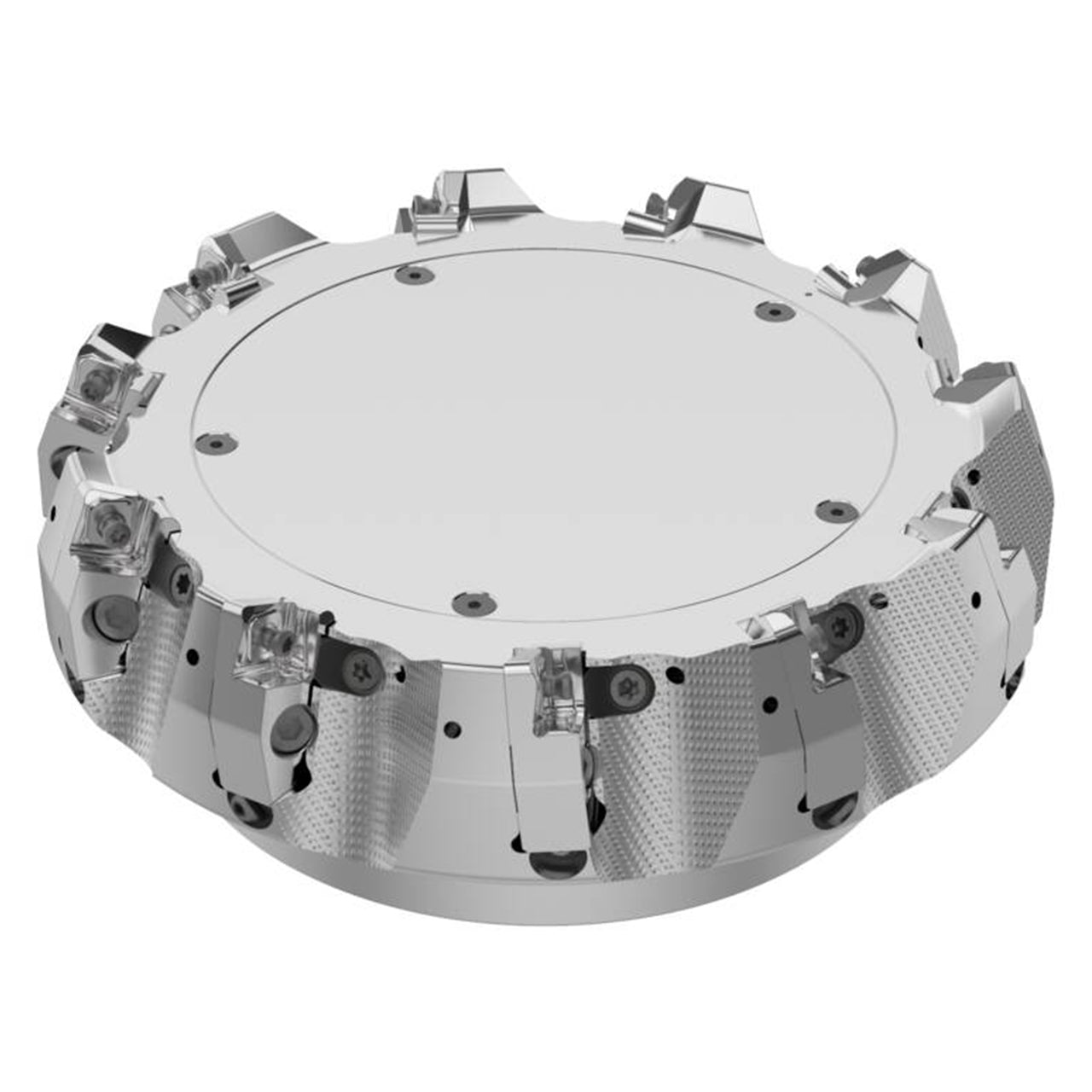

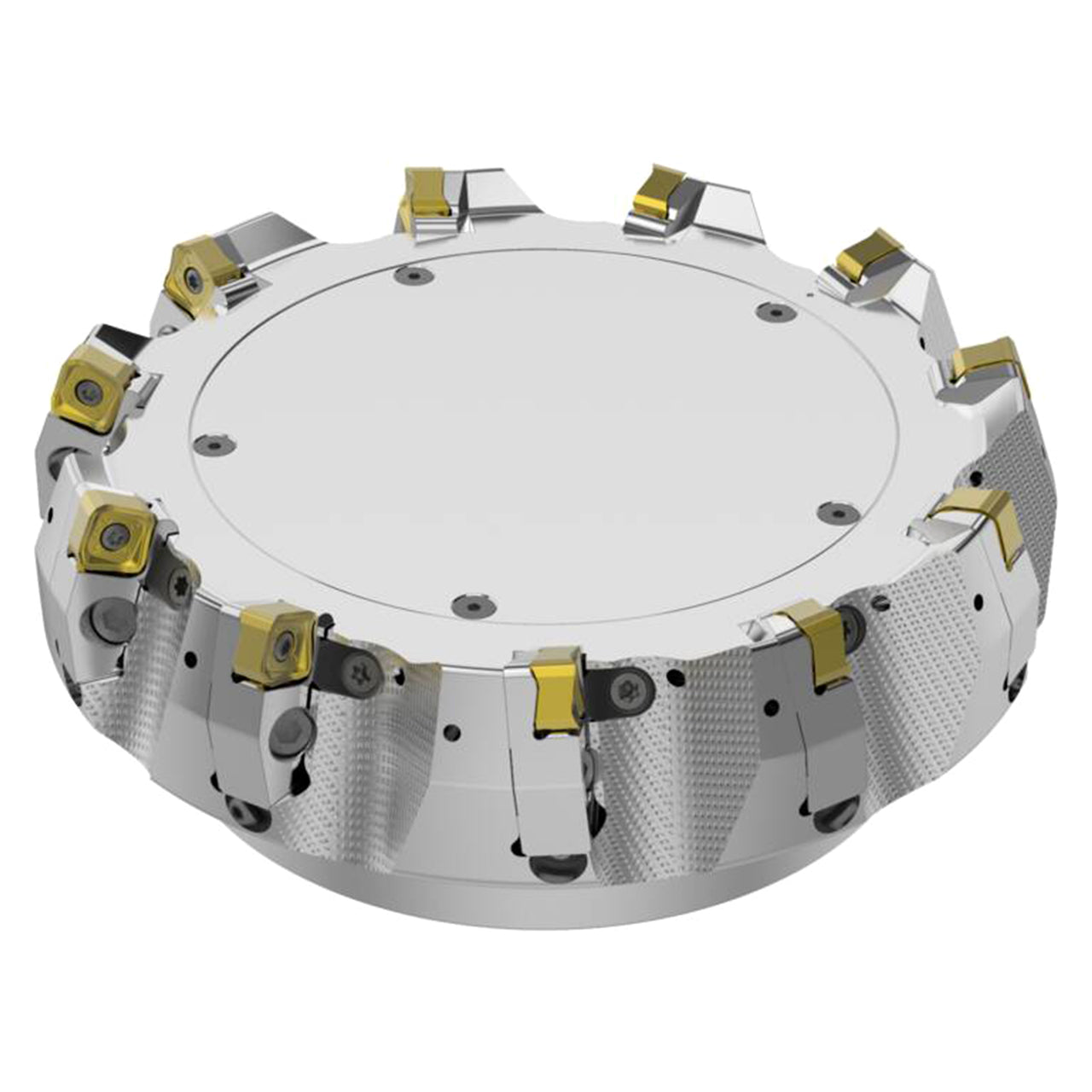

| Product Type | Double QuattroMill Face Mill |
