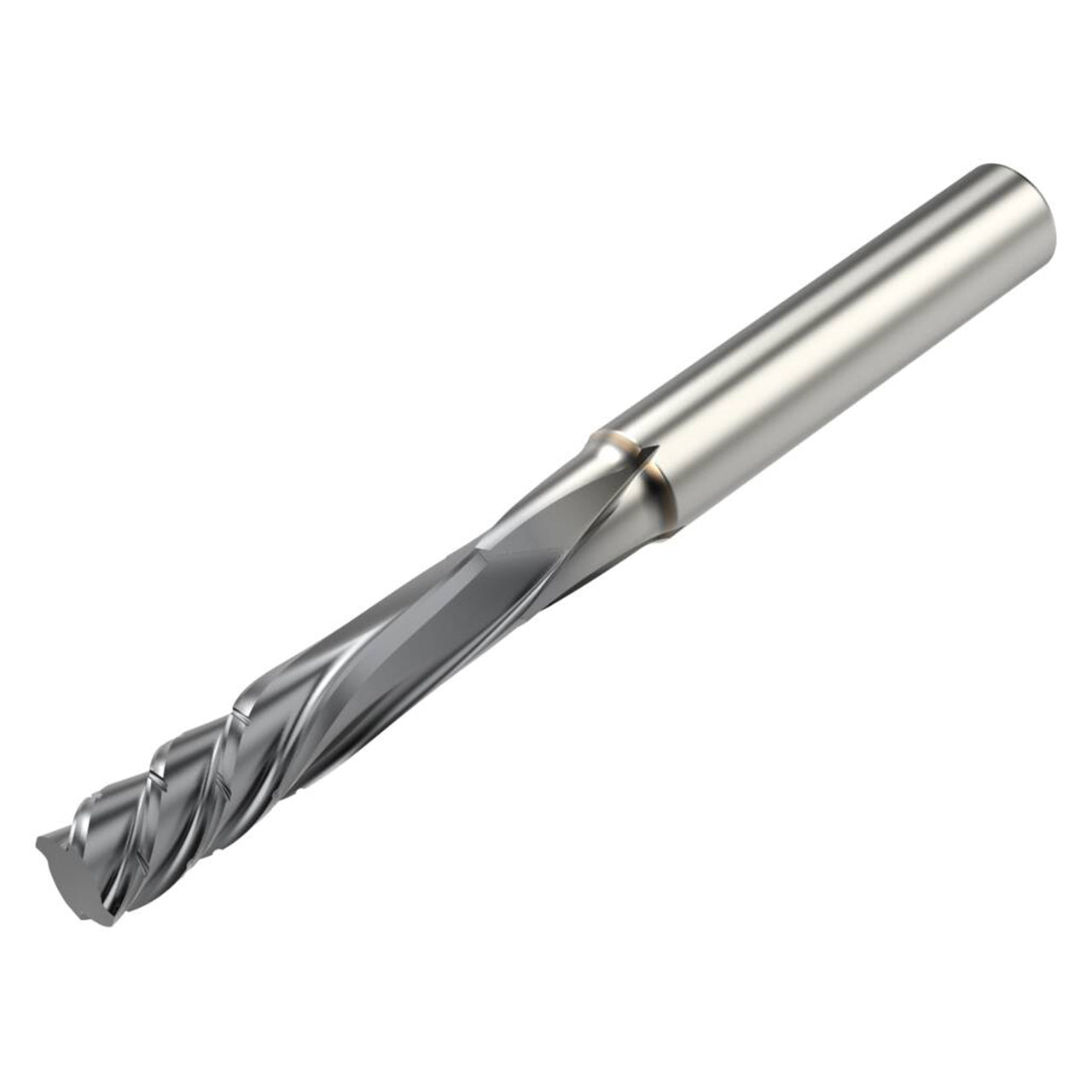

Product Specifications
| Manufacturer Part Number | 03245480 |
| Cutting Diameter (mm) | 14.80mm |
| Cutting Diameter 1 (mm) | 14.80mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Neck Diameter (mm) | 14.92mm |
| Cutting Edge Effective Length (mm) | 55.00mm |
| Neck Length (mm) | 63.00mm |
| Neck Length 1 (mm) | 63.00mm |
| Minimum Clamping Length (mm) | 48.00mm |
| Length Variant Cataloque | 3 |
| Theoretical Cutting Edge Length (mm) | 55.00mm |
| Overall Length (mm) | 150.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Depth of Cut (mm) | 30.00mm |
| Maximum Depth of Cut (mm) | 55.00mm |
| Axial Runout (mm) | 0.50mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Collision Angle (Degree) | 0.53 Degree |
| Flute Helix Angle (Degree) | 40 Degree |
| Rake Radial Angle (Degree) | 6 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Left Hand |
| Cutting Geometry Type | JC899 |
| Cutting Geometry Type Technical | JC899 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | CVDA |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | STAX |
| Product Type | Square End Mill |
