Product Specifications
| Manufacturer Part Number | 03229706 |
| Body Diameter (Decimal Inch) | 4.874" |
| Body Diameter (mm) | 123.80mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 2.000" |
| Connection Diameter Workpiece Side (mm) | 50.80mm |
| Shank Diameter (Decimal Inch) | 2.000" |
| Shank Diameter (mm) | 50.80mm |
| Body Length (Decimal Inch) | 2.858" |
| Body Length (mm) | 72.60mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 0.941" |
| Clamping Length (mm) | 23.90mm |
| Overall Length (Decimal Inch) | 7.421" |
| Overall Length (mm) | 188.50mm |
| Data Chip Provision | 1 |

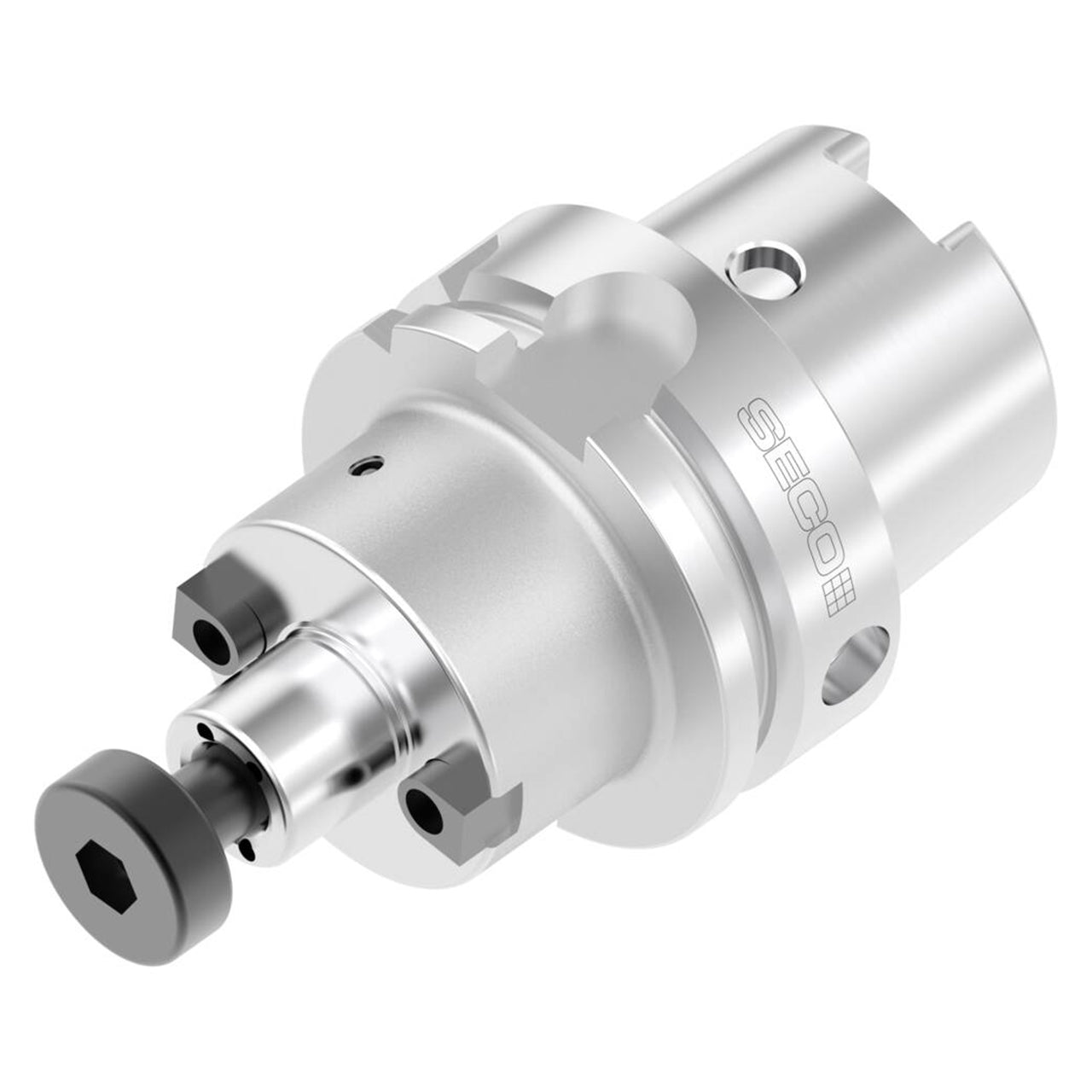

| Product Type | Shell Mill Holder |
