Product Specifications
| Manufacturer Part Number | 03229676 |
| Body Diameter (Decimal Inch) | 1.614" |
| Body Diameter (mm) | 41.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 2.358" |
| Body Length (mm) | 59.90mm |
| Functional Length Secondary (Decimal Inch) | 2.630" |
| Functional Length Secondary (mm) | 66.80mm |
| Protruding Length (Decimal Inch) | 3.500" |
| Protruding Length (mm) | 88.90mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 5.980" |
| Overall Length (mm) | 151.90mm |
| Data Chip Provision | 1 |

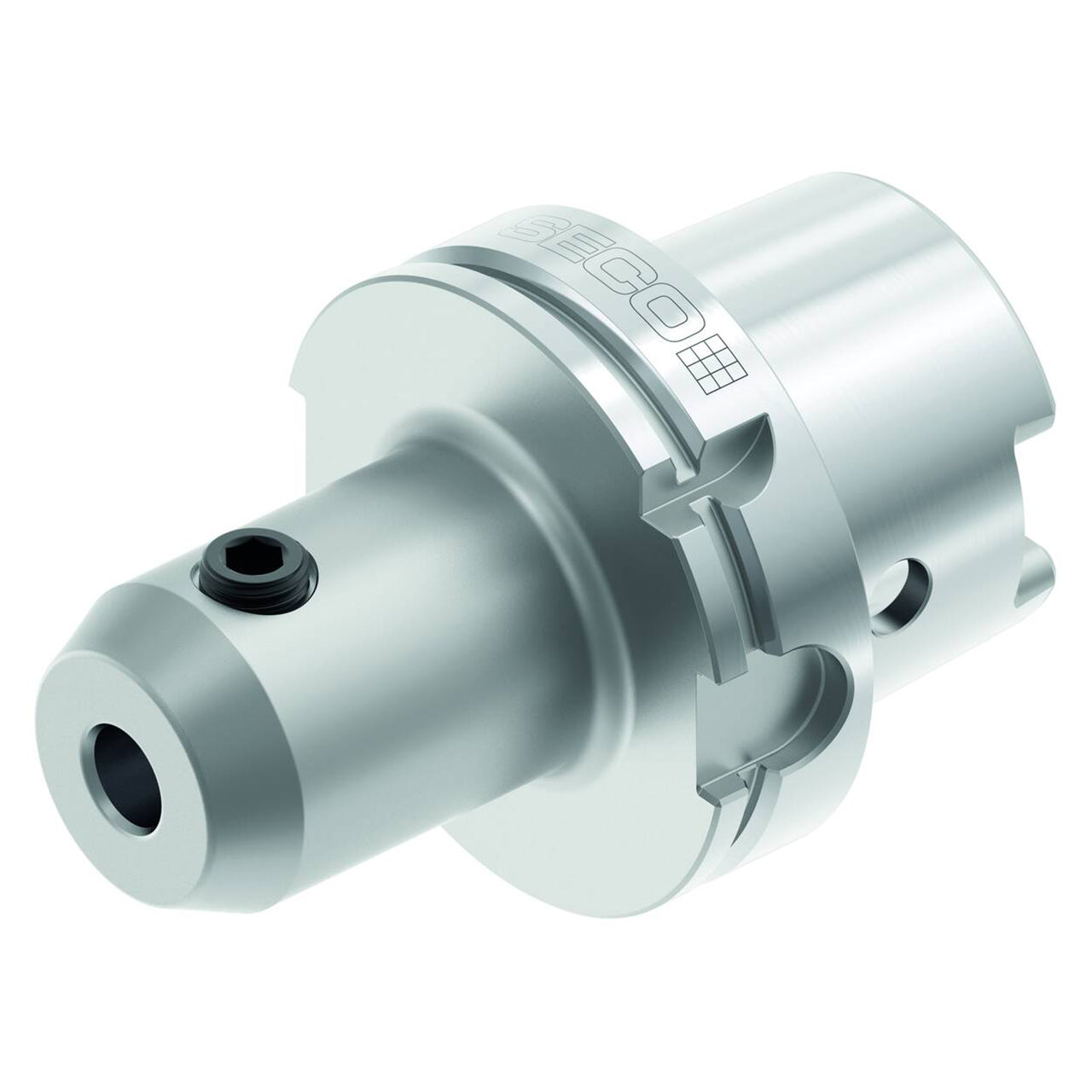

| Product Type | End Mill Holder |
