Product Specifications
| Manufacturer Part Number | 03214280 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.984" |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (mm) | 25.00mm |
| Thread Diameter Size | G 1/4 |
| Body Length (Decimal Inch) | 5.118" |
| Body Length (mm) | 130.00mm |
| Functional Length (Decimal Inch) | 9.055" |
| Functional Length (mm) | 230.00mm |
| Shank Length (Decimal Inch) | 3.937" |
| Shank Length (mm) | 100.00mm |
| Overall Length (Decimal Inch) | 9.232" |
| Overall Length (mm) | 234.50mm |
| Shank Width (Decimal Inch) | 0.945" |
| Shank Width (mm) | 24.00mm |
| Coolant Entry Thread Size | G 1/4 |

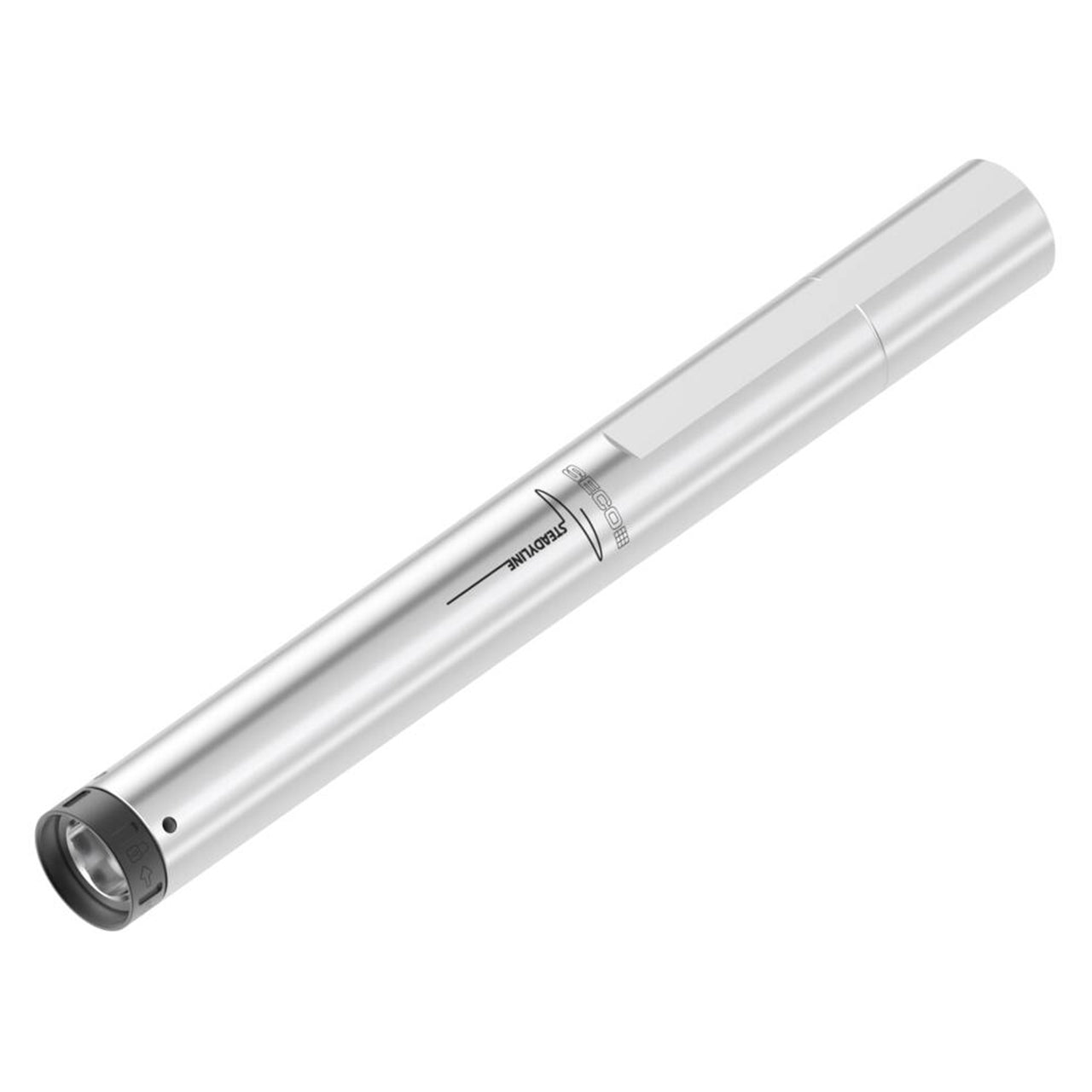

| Product Type | Collet Chuck Extension |
