Product Specifications
| Manufacturer Part Number | 03214275 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.969" |
| Connection Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.969" |
| Shank Diameter (mm) | 50.00mm |
| Thread Diameter Size | - |
| Body Length (Decimal Inch) | 6.299" |
| Body Length (mm) | 160.00mm |
| Body Length 1 (Decimal Inch) | 6.299" |
| Body Length 1 (mm) | 160.00mm |
| Body Length 2 (Decimal Inch) | 6.181" |
| Body Length 2 (mm) | 157.00mm |
| Functional Length (Decimal Inch) | 7.087" |
| Functional Length (mm) | 180.00mm |
| Shank Length (Decimal Inch) | 1.181" |
| Shank Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 8.445" |
| Overall Length (mm) | 214.50mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 8000 rpm |

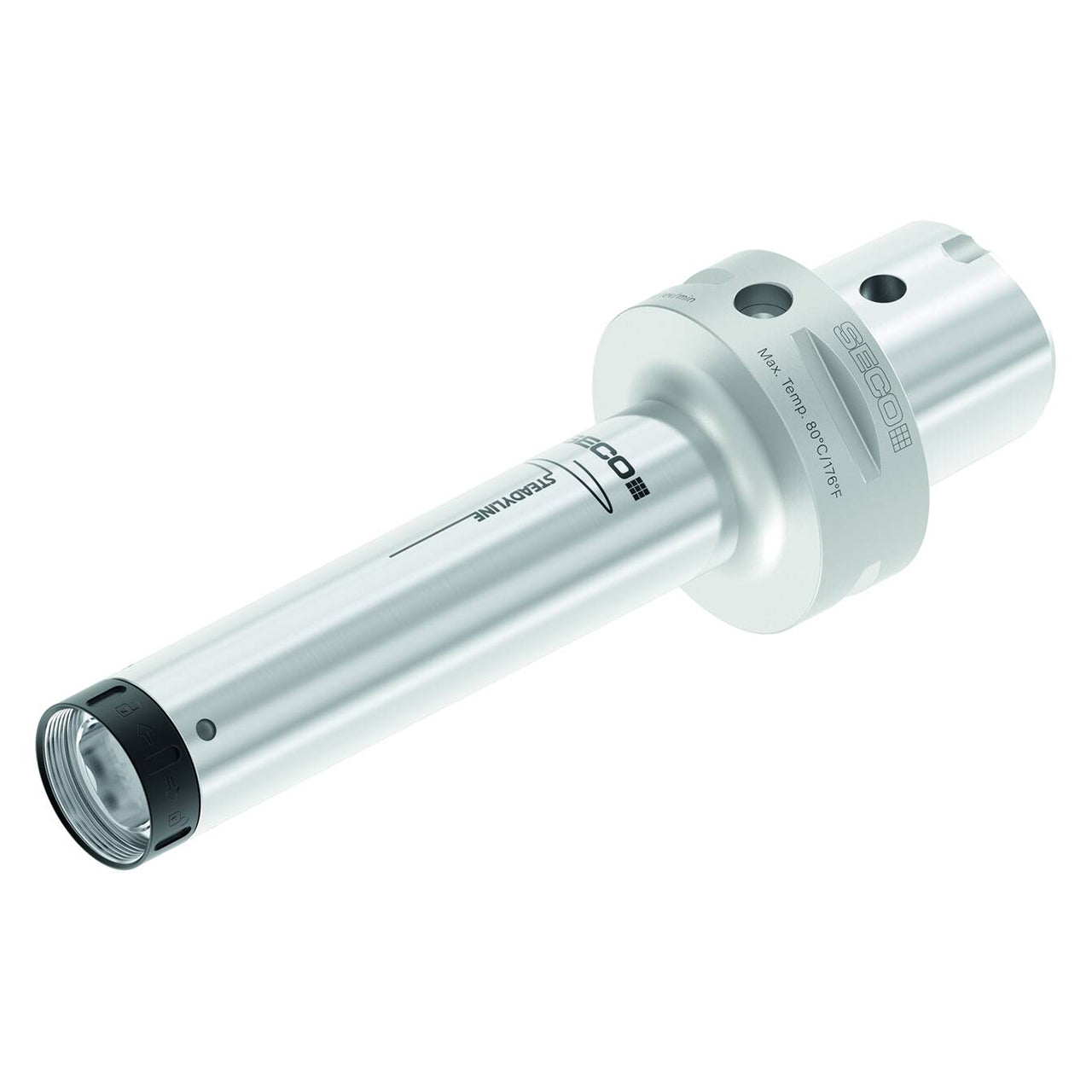

| Product Type | Collet Chuck Extension Adapter |
