Product Specifications
| Manufacturer Part Number | 03213790 |
| Cutting Diameter (mm) | 315.00mm |
| Body Diameter (mm) | 331.50mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 225.00mm |
| Maximum Cutting Diameter (mm) | 330.00mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (mm) | 25.70mm |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | bar |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -9.17 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 48 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 48 Degree |
| Maximum Rotational Speed (rpm) | 3400 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

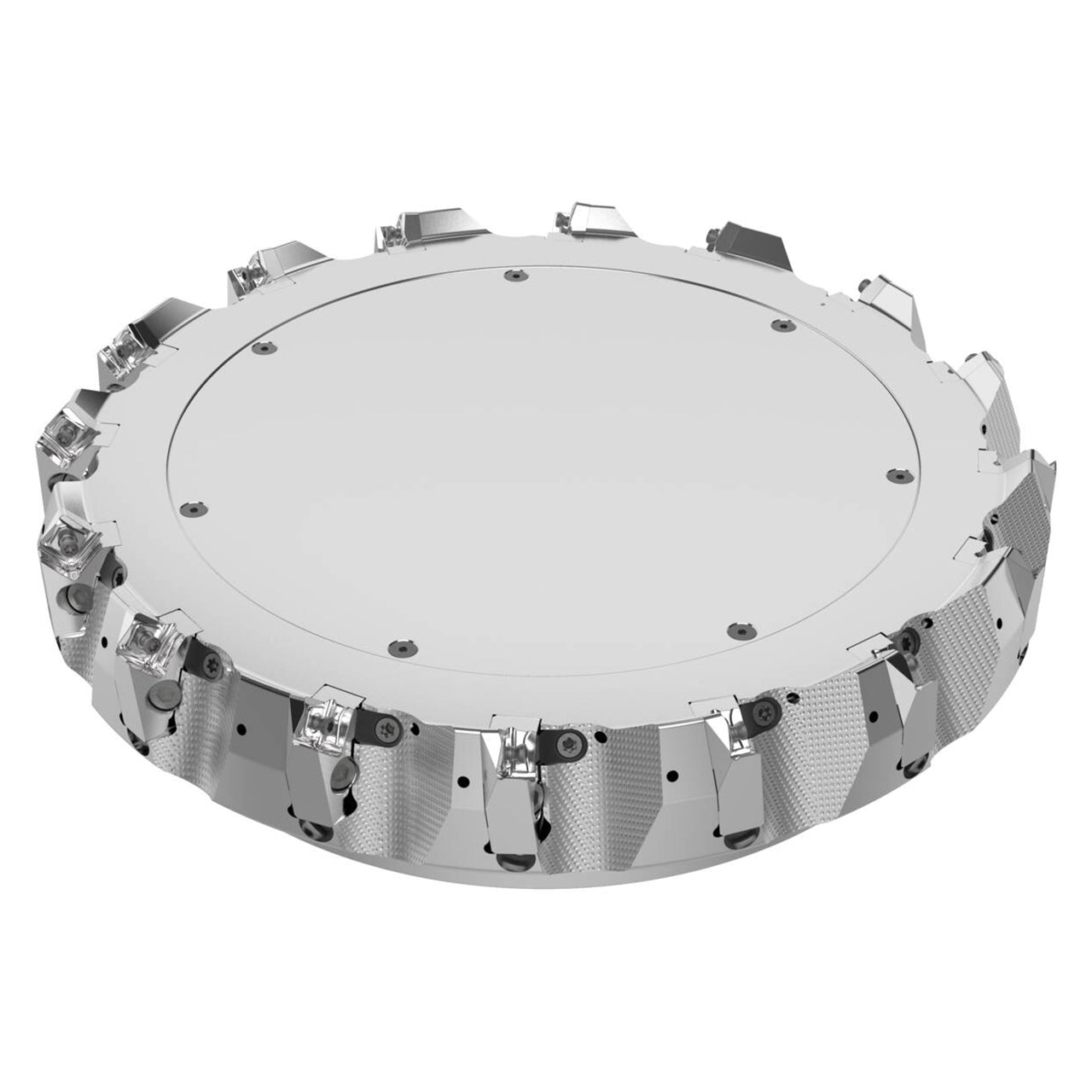

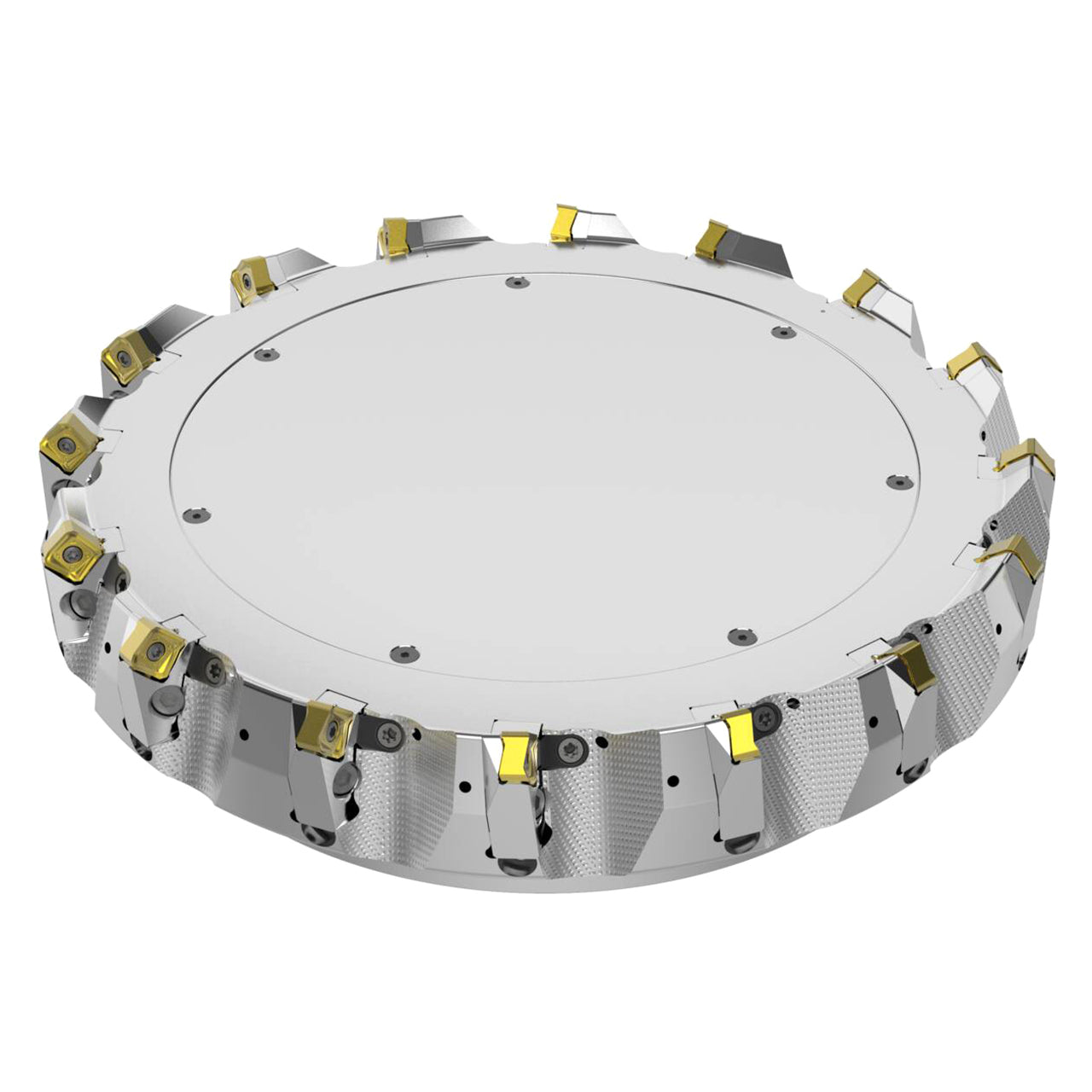

| Product Type | Double QuattroMill Face Mill |
