Product Specifications
| Manufacturer Part Number | 03212888 |
| Cutting Diameter (mm) | 28.90mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Maximum Cutting Diameter (mm) | 42.00mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (mm) | 82.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 70.90mm |
| Functional Length (mm) | 40.00mm |
| Overall Length (mm) | 67.00mm |
| Maximum Depth of Cut (mm) | 1.87mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Programming Radius (mm) | 3.48mm |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 2.9 Degree |
| Maximum Rotational Speed (rpm) | 27100 rpm |
| Insert Shape Code | L |
| Shank Type | Combimaster |

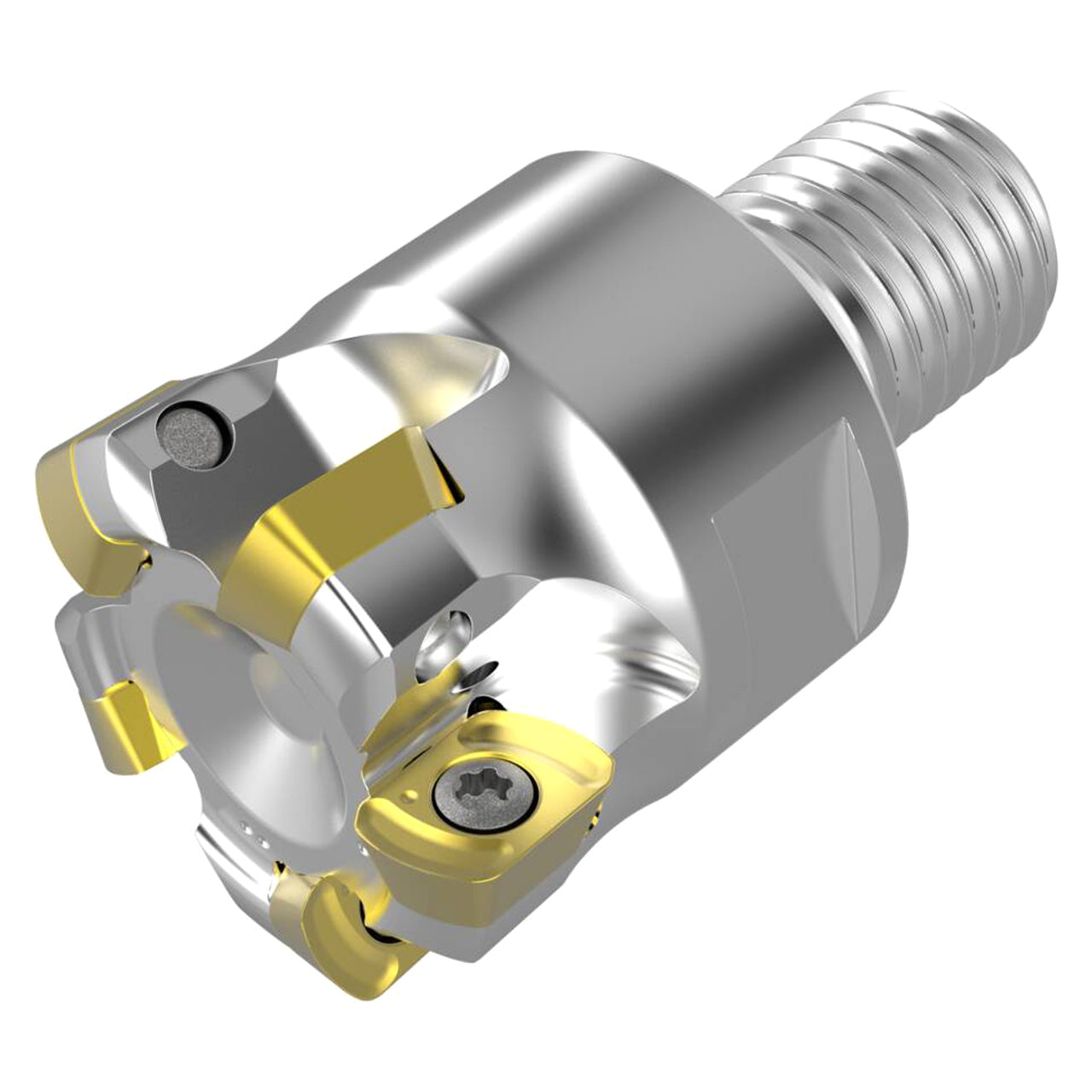

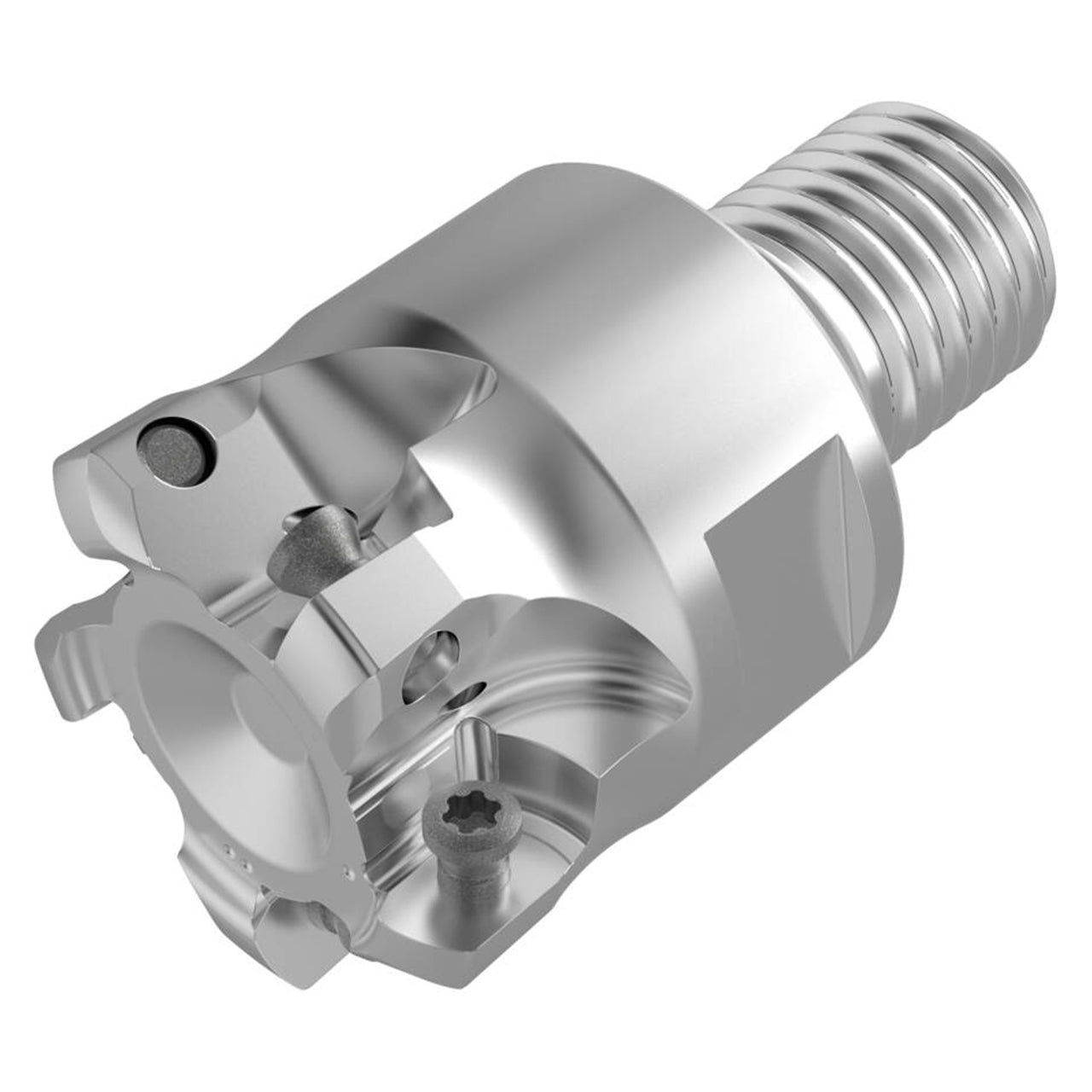

| Product Type | Indexable High-Feed End Mill |
