Product Specifications
| Manufacturer Part Number | 03201513 |
| Body Diameter (Decimal Inch) | 2.628" |
| Body Diameter (mm) | 66.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Minimum Connection Bore Diameter (mm) | 38.10mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Maximum Connection Bore Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length Secondary (Decimal Inch) | 2.875" |
| Functional Length Secondary (mm) | 73.03mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.375" |
| Clamping Length (mm) | 60.33mm |
| Overall Length (Decimal Inch) | 6.687" |
| Overall Length (mm) | 169.85mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

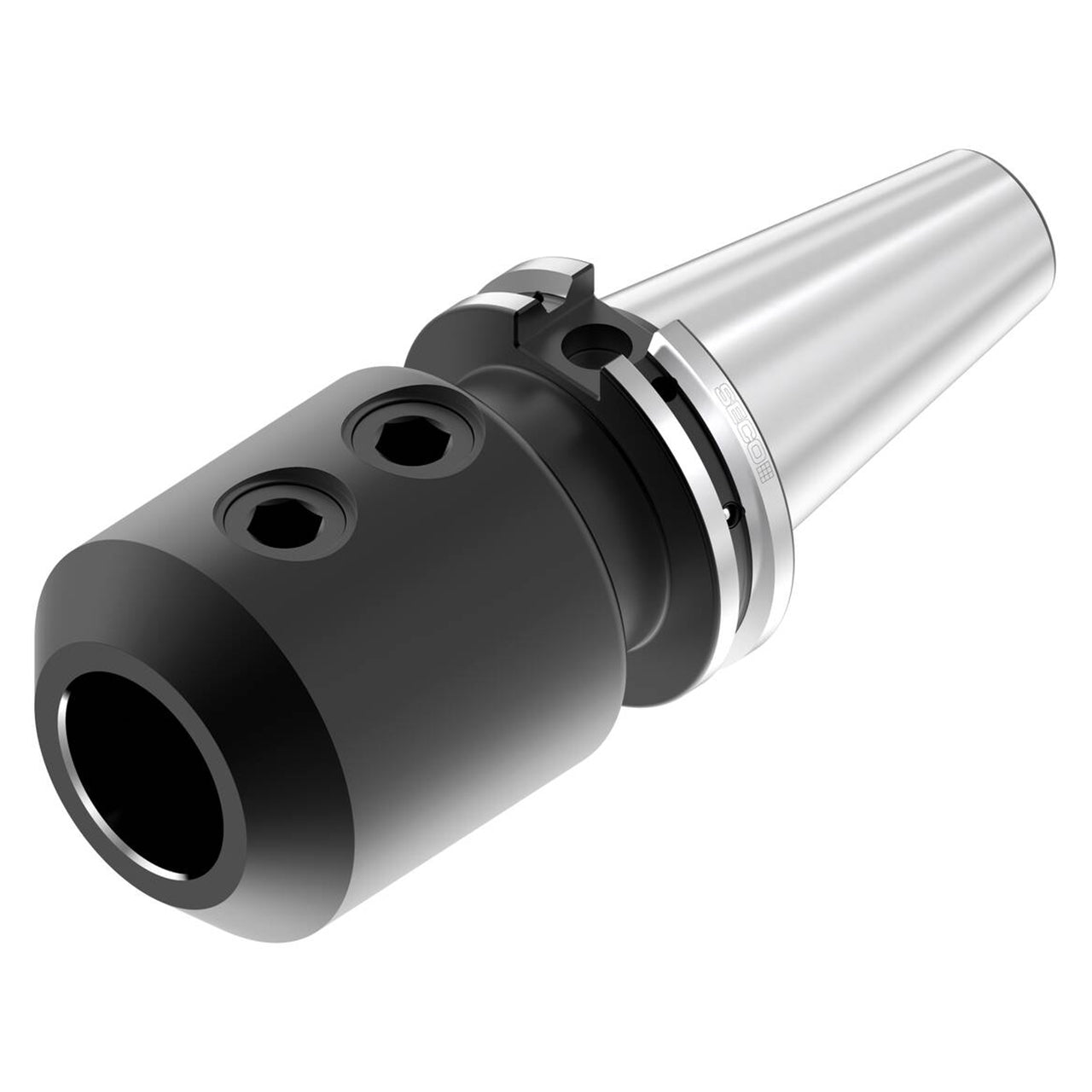

| Product Type | End Mill Holder |
