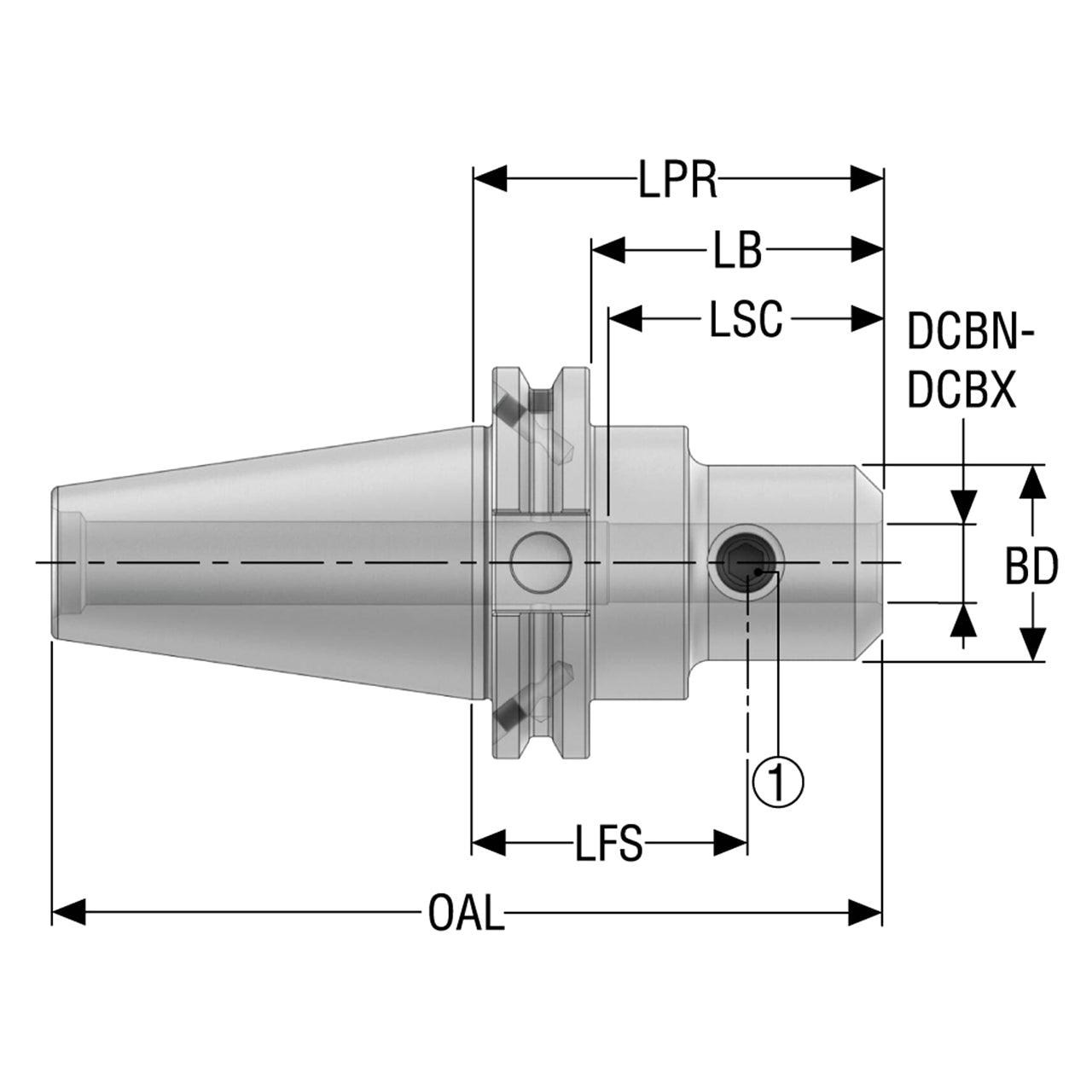

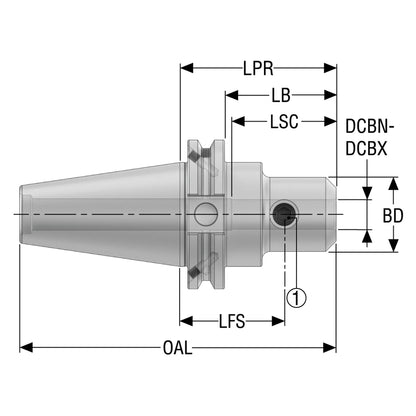

Product Specifications
| Manufacturer Part Number | 03201503 |
| Body Diameter (Decimal Inch) | 1.250" |
| Body Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 1.870" |
| Body Length (mm) | 47.50mm |
| Functional Length Secondary (Decimal Inch) | 1.745" |
| Functional Length Secondary (mm) | 44.32mm |
| Protruding Length (Decimal Inch) | 2.620" |
| Protruding Length (mm) | 66.55mm |
| Clamping Length (Decimal Inch) | 1.764" |
| Clamping Length (mm) | 44.80mm |
| Overall Length (Decimal Inch) | 5.307" |
| Overall Length (mm) | 134.80mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

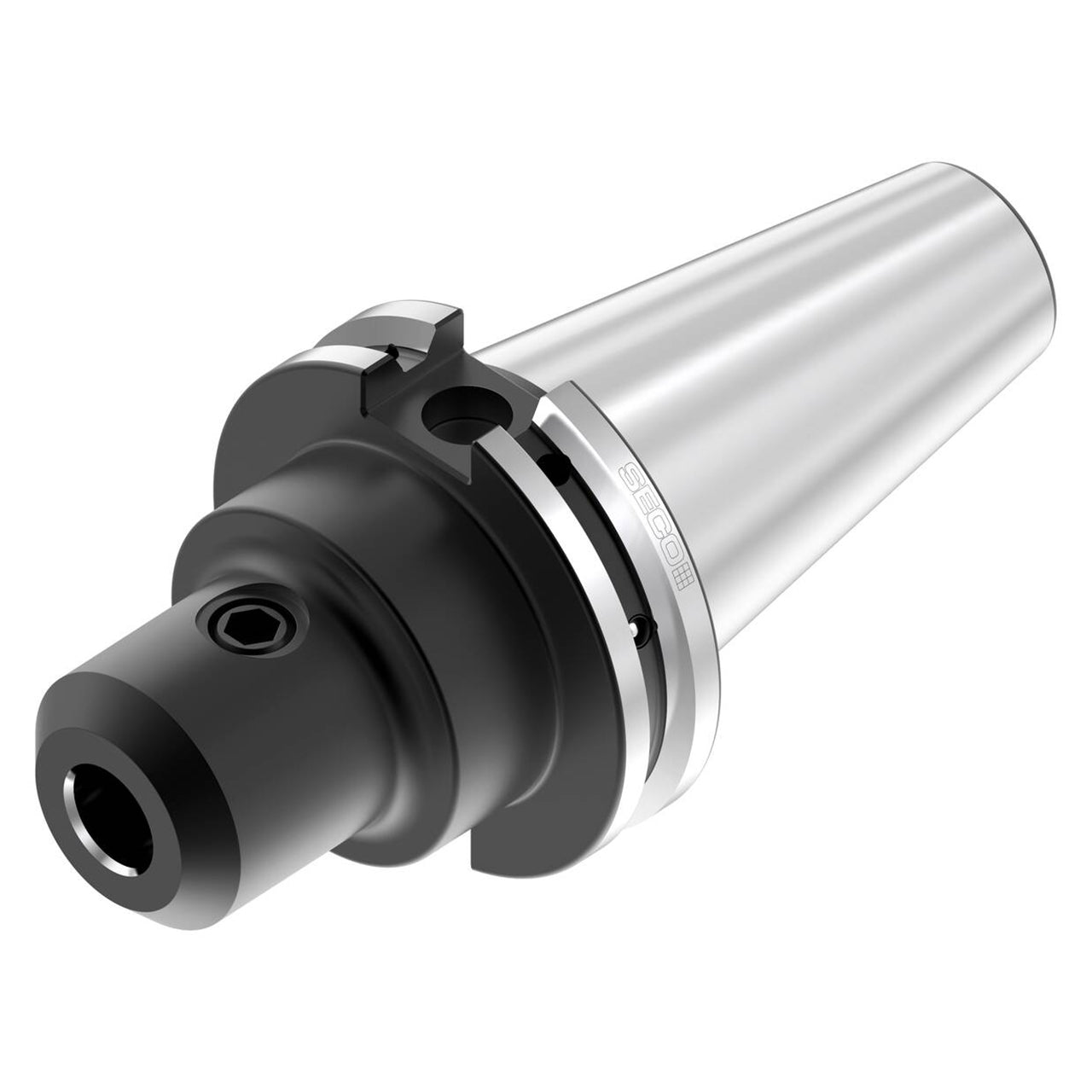

| Product Type | End Mill Holder |
