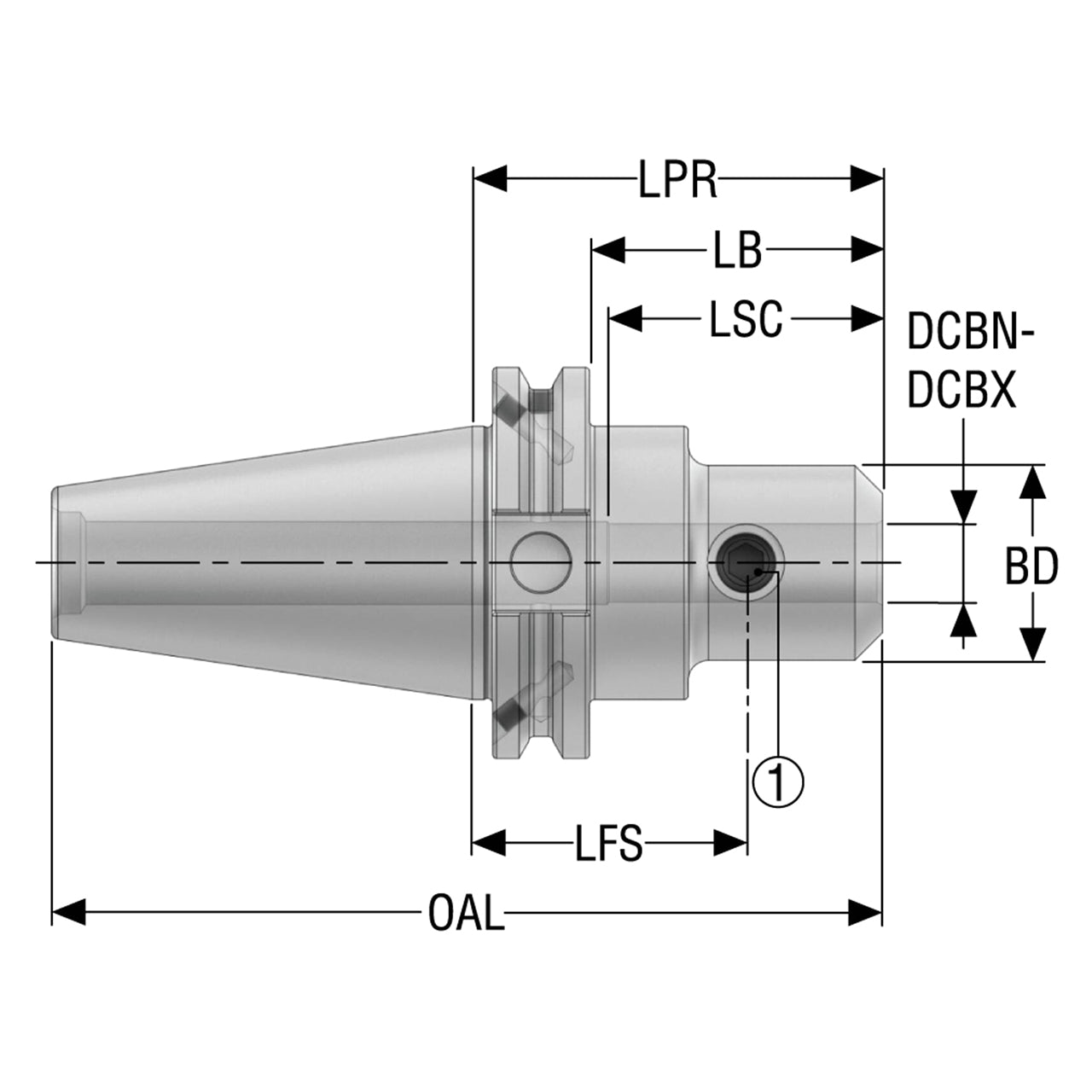

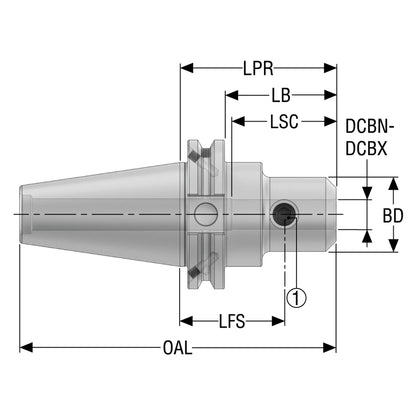

Product Specifications
| Manufacturer Part Number | 03201497 |
| Body Diameter (Decimal Inch) | 0.875" |
| Body Diameter (mm) | 22.23mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.250" |
| Minimum Connection Bore Diameter (mm) | 6.35mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.250" |
| Maximum Connection Bore Diameter (mm) | 6.35mm |
| Body Length (Decimal Inch) | 1.750" |
| Body Length (mm) | 44.45mm |
| Functional Length Secondary (Decimal Inch) | 2.125" |
| Functional Length Secondary (mm) | 53.98mm |
| Protruding Length (Decimal Inch) | 2.500" |
| Protruding Length (mm) | 63.50mm |
| Clamping Length (Decimal Inch) | 0.750" |
| Clamping Length (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 5.187" |
| Overall Length (mm) | 131.75mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

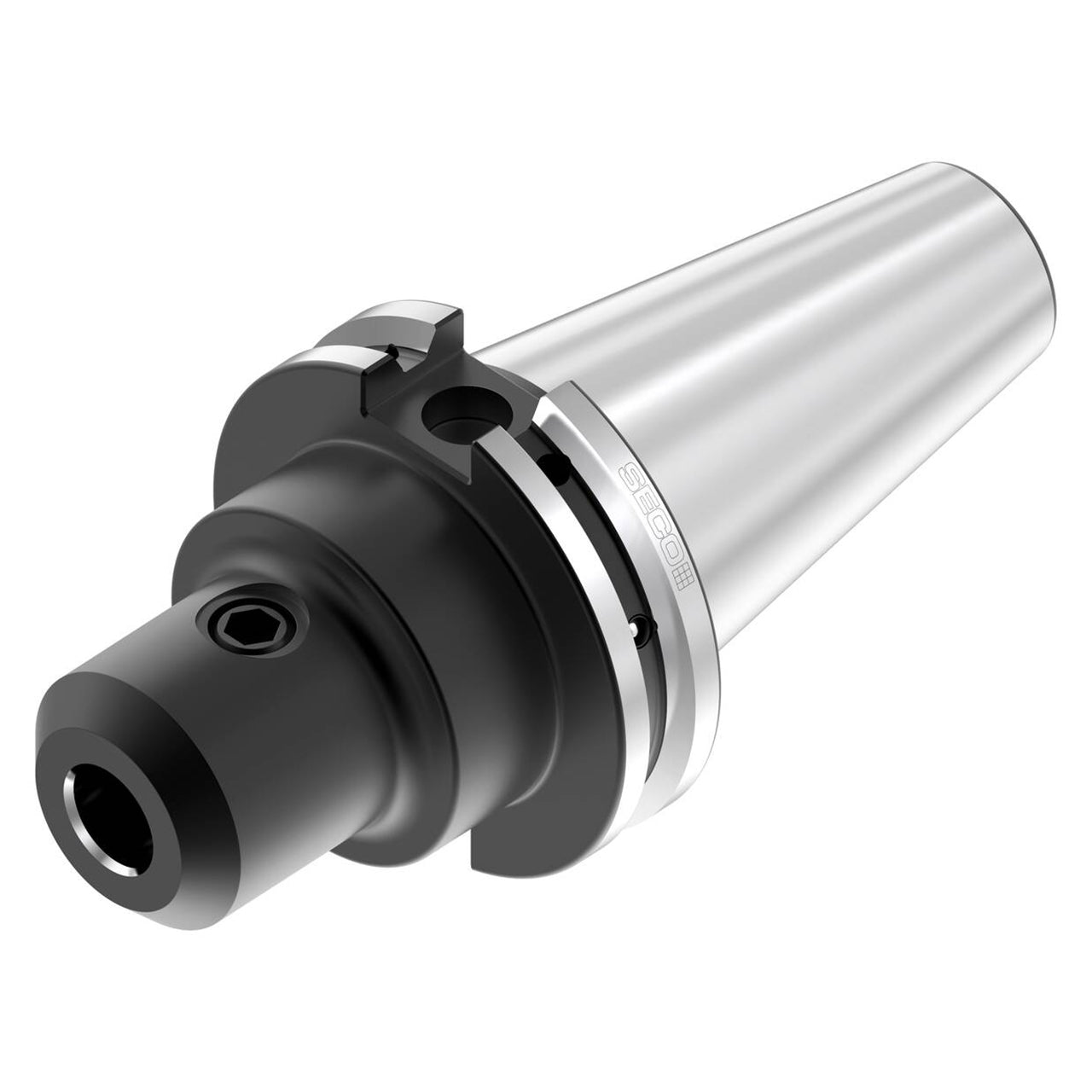

| Product Type | End Mill Holder |
