Product Specifications
| Manufacturer Part Number | 03201485 |

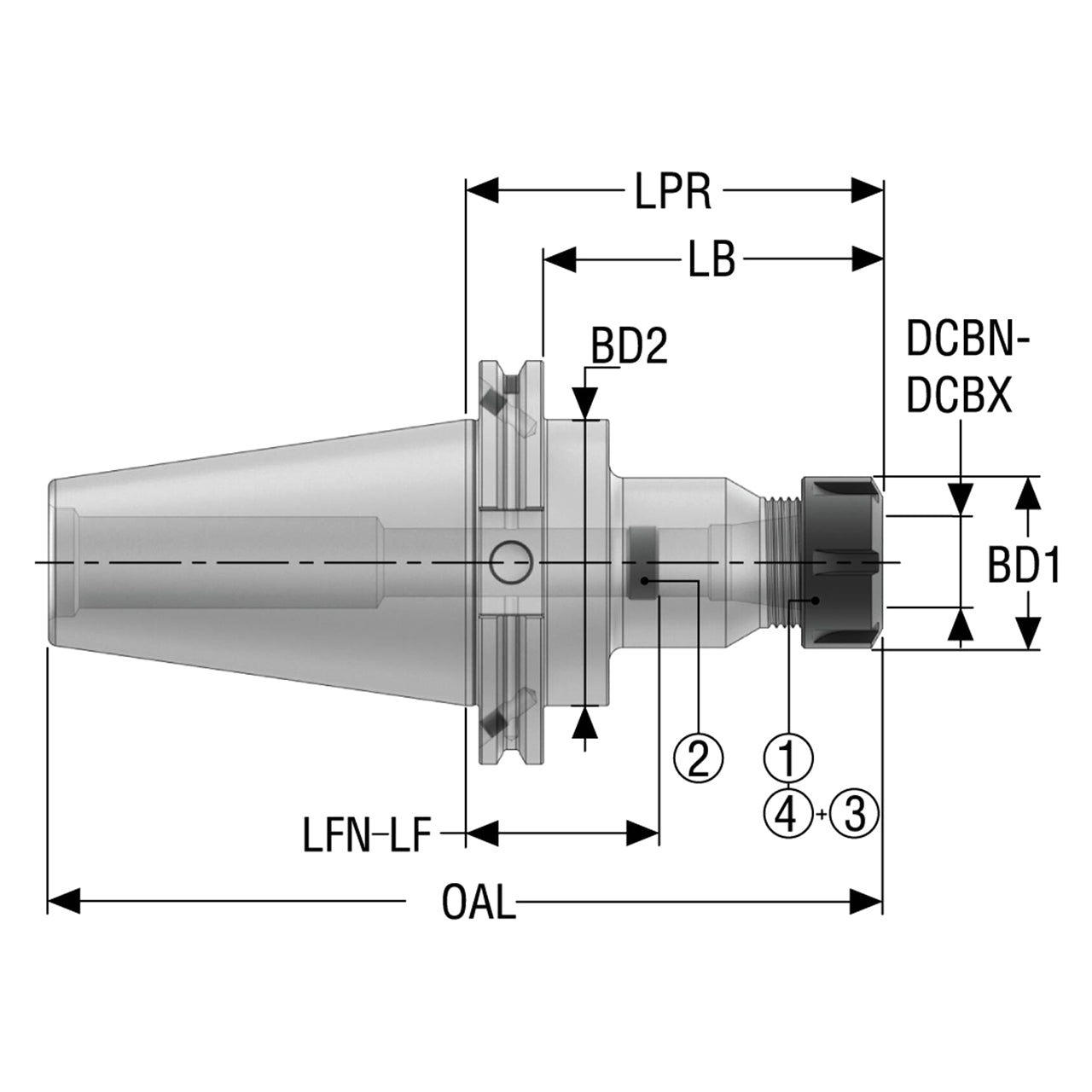

| Body Diameter 1 (Decimal Inch) | 1.969" |
| Body Diameter 1 (mm) | 50.00mm |
| Body Diameter 2 (Decimal Inch) | 1.953" |
| Body Diameter 2 (mm) | 49.60mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.079" |
| Minimum Connection Bore Diameter (mm) | 2.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 5.250" |
| Body Length (mm) | 133.35mm |
| Functional Length (Decimal Inch) | 3.992" |
| Functional Length (mm) | 101.40mm |
| Minimum Functional Length (Decimal Inch) | 0.882" |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Overall Length (Decimal Inch) | 10.000" |
| Overall Length (mm) | 254.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

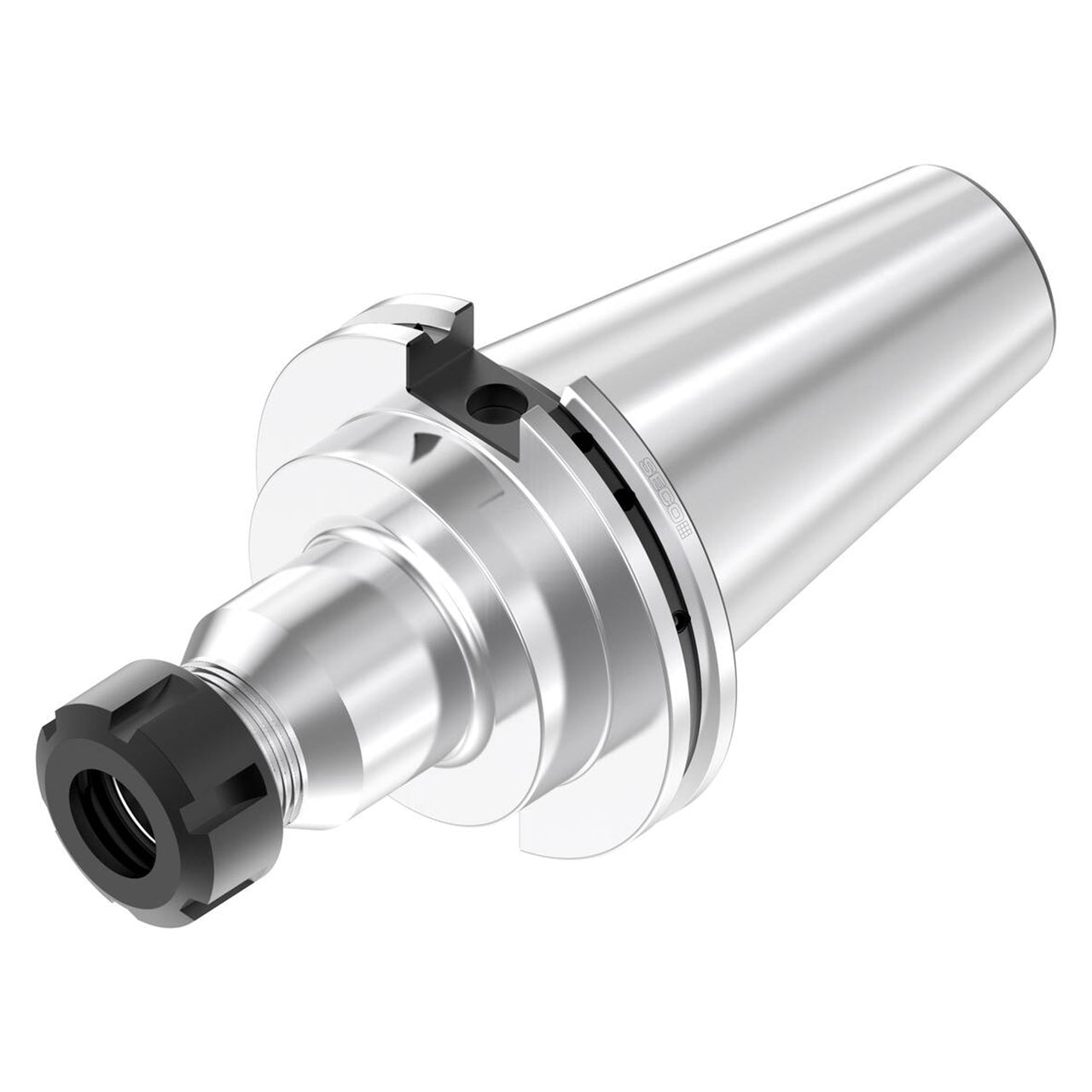

| Product Type | Collet Chuck |
