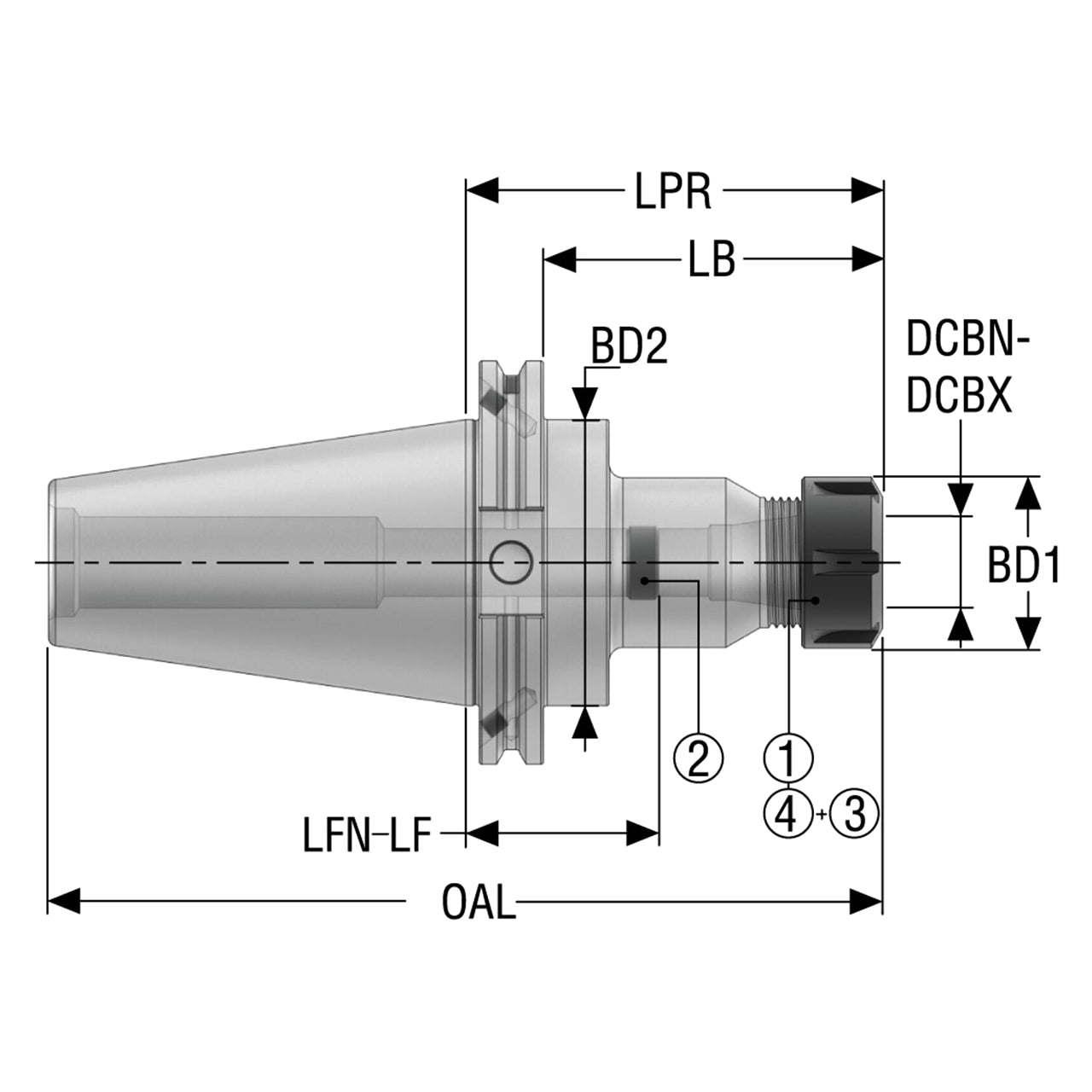

Product Specifications
| Manufacturer Part Number | 03201481 |
| Body Diameter 1 (Decimal Inch) | 1.102" |
| Body Diameter 1 (mm) | 28.00mm |
| Body Diameter 2 (Decimal Inch) | 1.087" |
| Body Diameter 2 (mm) | 27.60mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.020" |
| Minimum Connection Bore Diameter (mm) | 0.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 5.250" |
| Body Length (mm) | 133.35mm |
| Functional Length (Decimal Inch) | 4.425" |
| Functional Length (mm) | 112.40mm |
| Minimum Functional Length (Decimal Inch) | 1.276" |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Overall Length (Decimal Inch) | 10.000" |
| Overall Length (mm) | 254.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

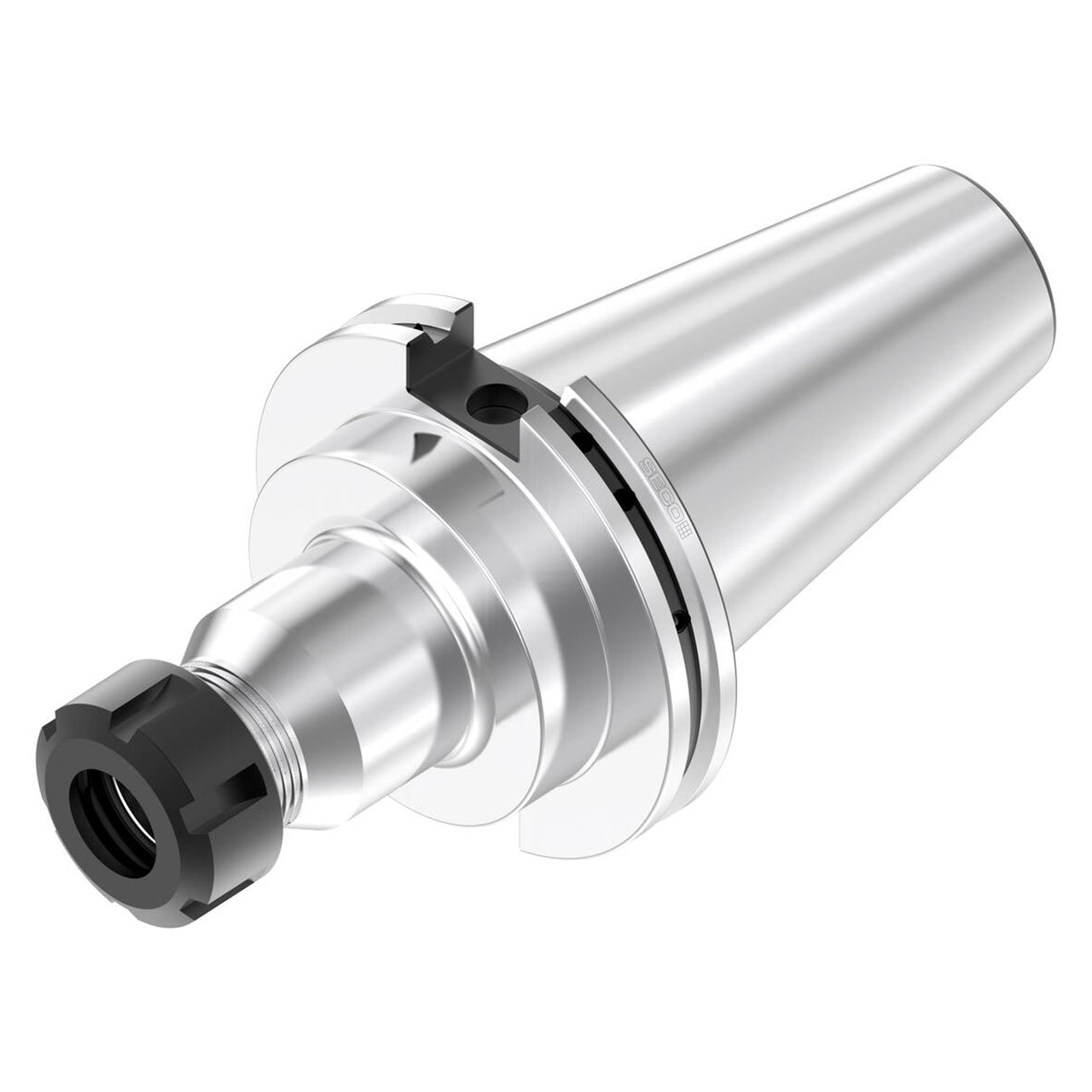

| Product Type | Collet Chuck |
