Seco Tools

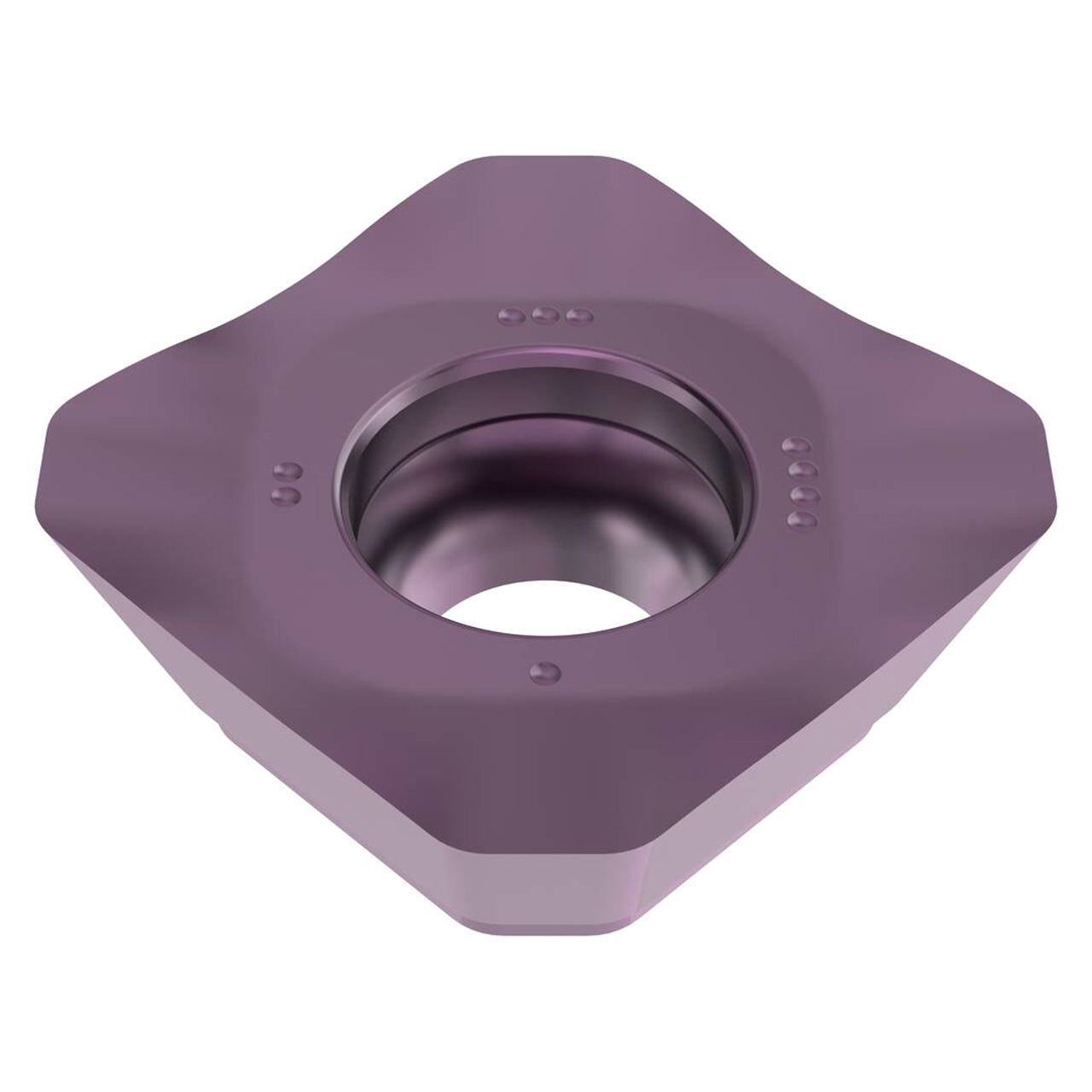

Seco Tools 03201202 | SEEX1204AFN-M10 0.500" Inscribed Circle Diameter x 0.044" Radius x 0.187" Insert Thickness 4 Cutting Edge PVD Coated Carbide MP2050 Grade SEEX Milling Insert

Seco Tools 03201202 | SEEX1204AFN-M10 0.500" Inscribed Circle Diameter x 0.044" Radius x 0.187" Insert Thickness 4 Cutting Edge PVD Coated Carbide MP2050 Grade SEEX Milling Insert

SKU: 23346483

$32.34 USD
$32.34 USD $32.34 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

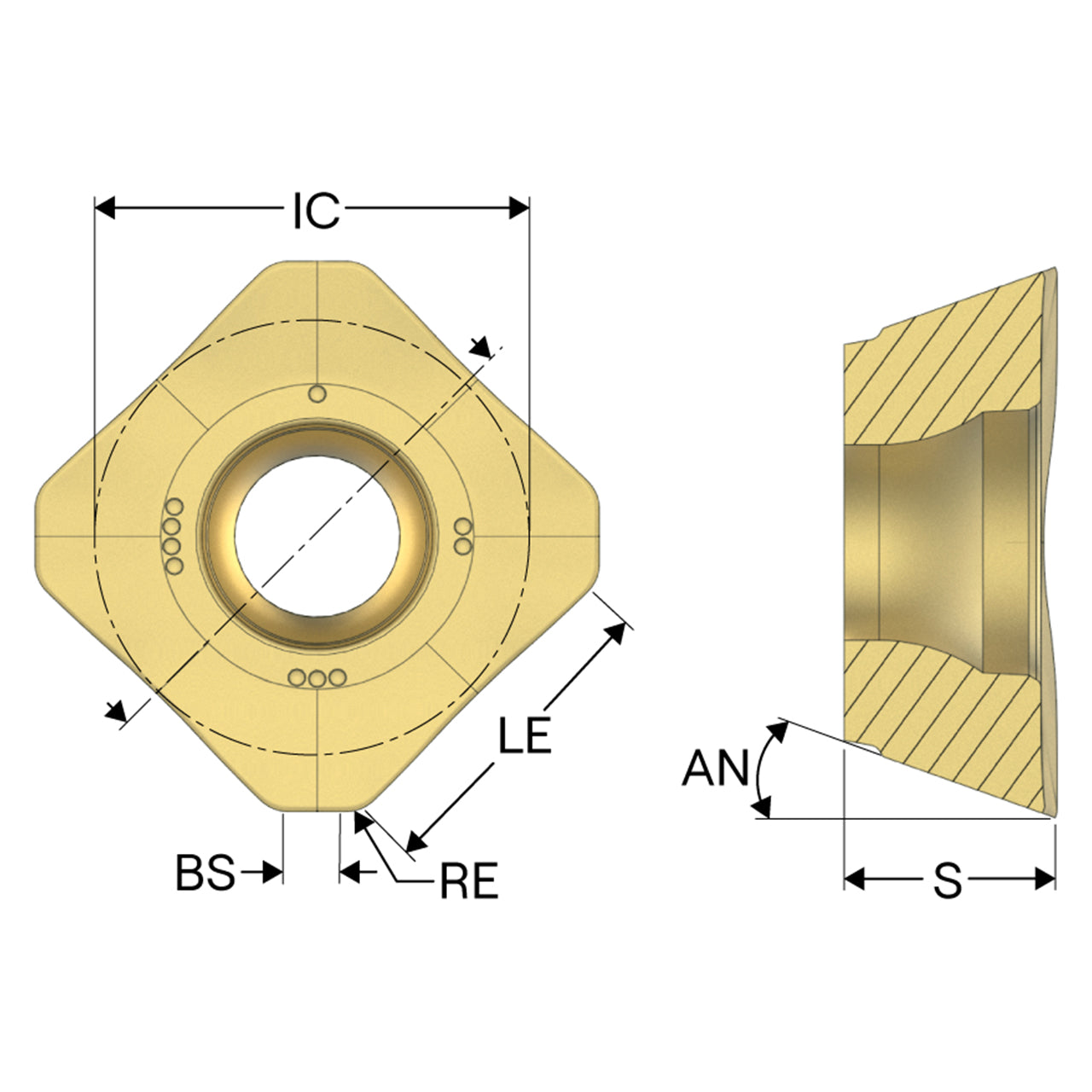

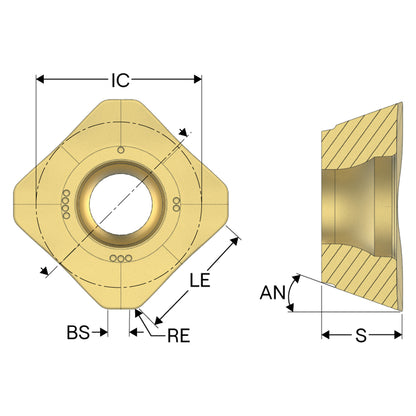

Product Specifications
Manufacturer Part Number 03201202
Clearance Angle Major (Degree) 20.00 Degree
Wiper Edge Length (Decimal Inch) 0.059"
Cutting edge count 4
Cutting Geometry Type Technical M10
Insert size and shape SEEX1204
Grade Type Carbide PVD
Inscribed Circle Diameter (Decimal Inch) 0.500"
Insert Hand Neutral
Cutting Edge Effective Length (Decimal Inch) 0.343"
Corner Radius (Decimal Inch) 0.044"
Insert Thickness (Decimal Inch) 0.187"
Product Series SEEX
Product Type Milling Insert
