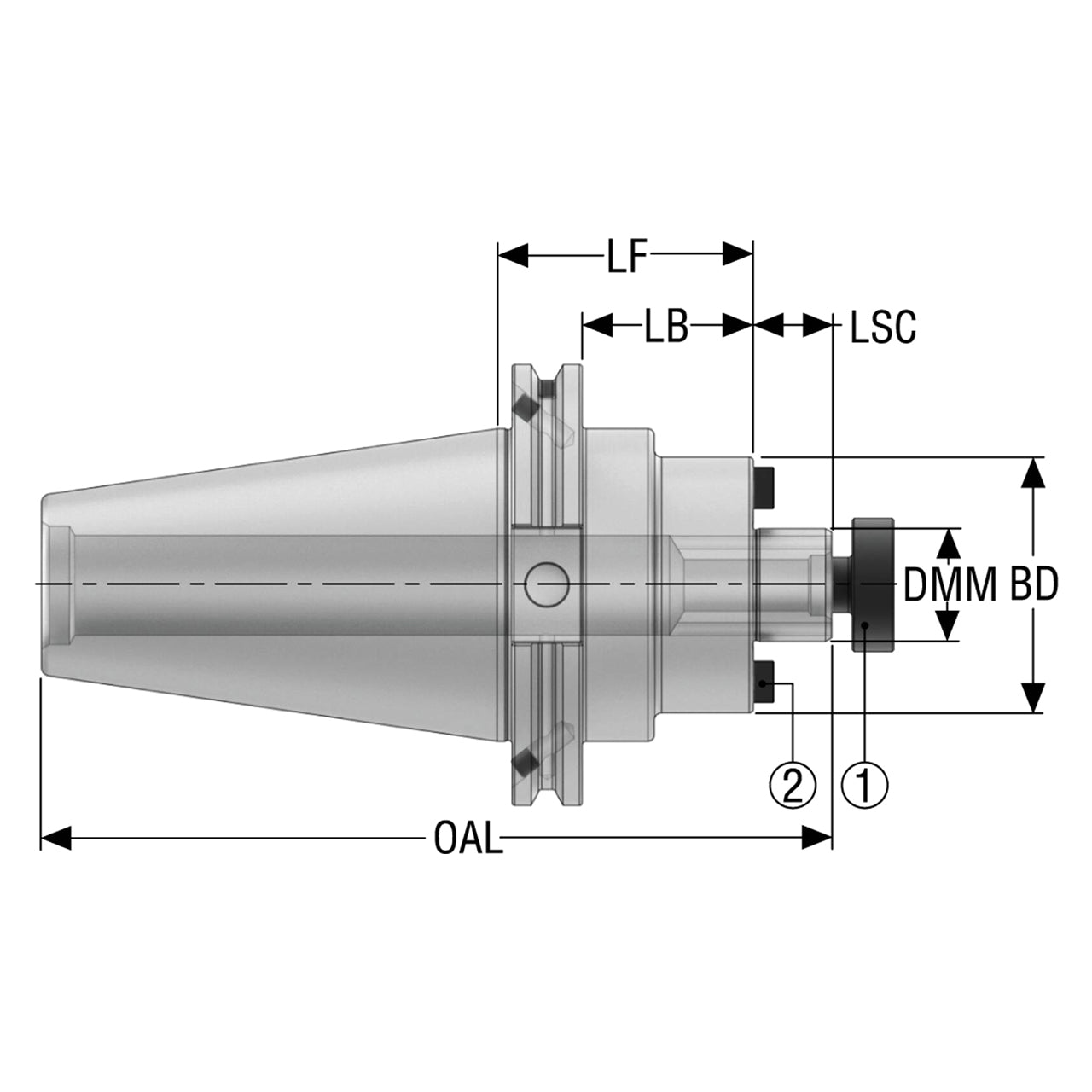

Product Specifications
| Manufacturer Part Number | 03197136 |
| Body Diameter (Decimal Inch) | 3.750" |
| Body Diameter (mm) | 95.25mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.500" |
| Connection Diameter Workpiece Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 1.500" |
| Body Length (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 2.250" |
| Functional Length (mm) | 57.15mm |
| Clamping Length (Decimal Inch) | 0.937" |
| Clamping Length (mm) | 23.80mm |
| Overall Length (Decimal Inch) | 5.874" |
| Overall Length (mm) | 149.20mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

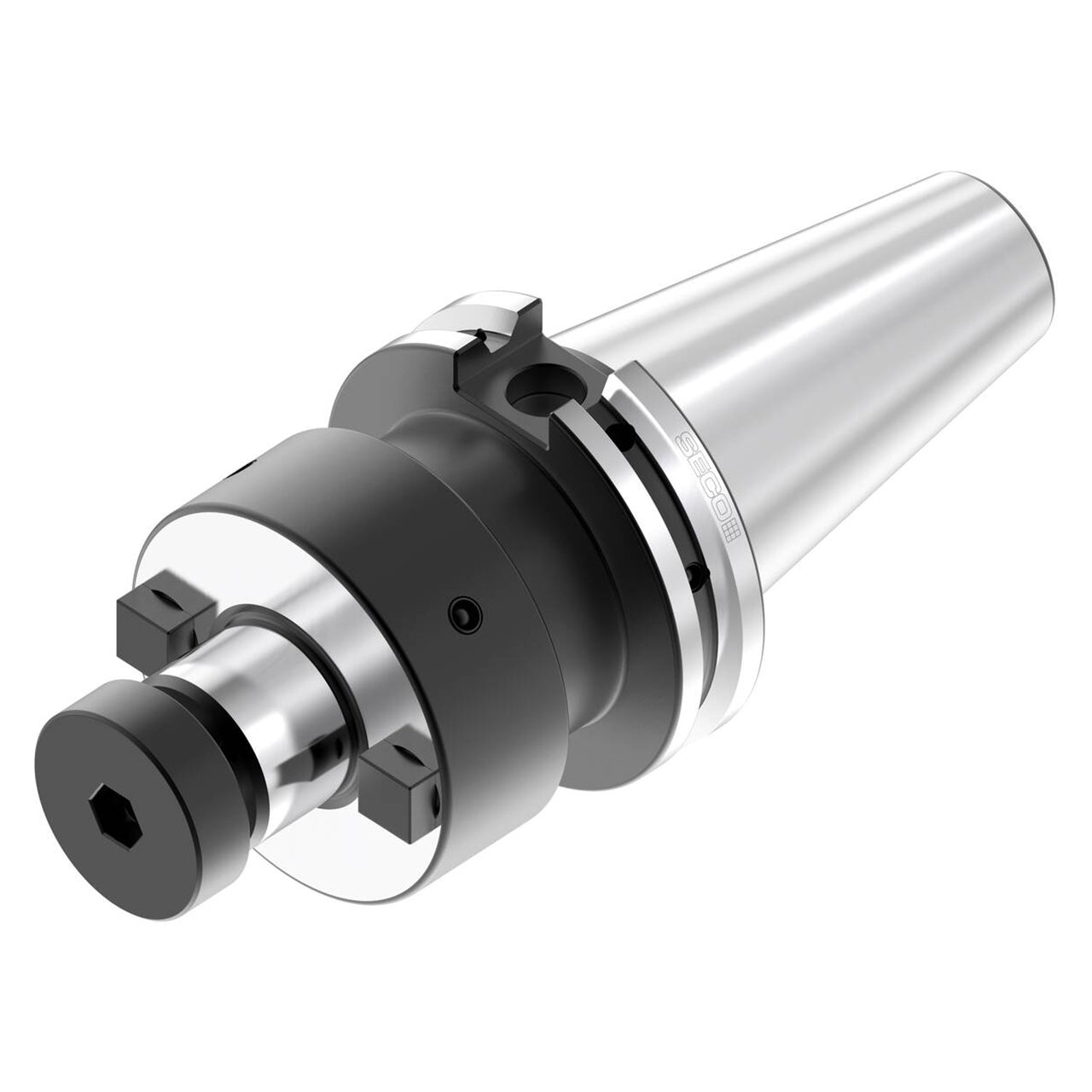

| Product Type | Shell Mill Holder |
