Product Specifications

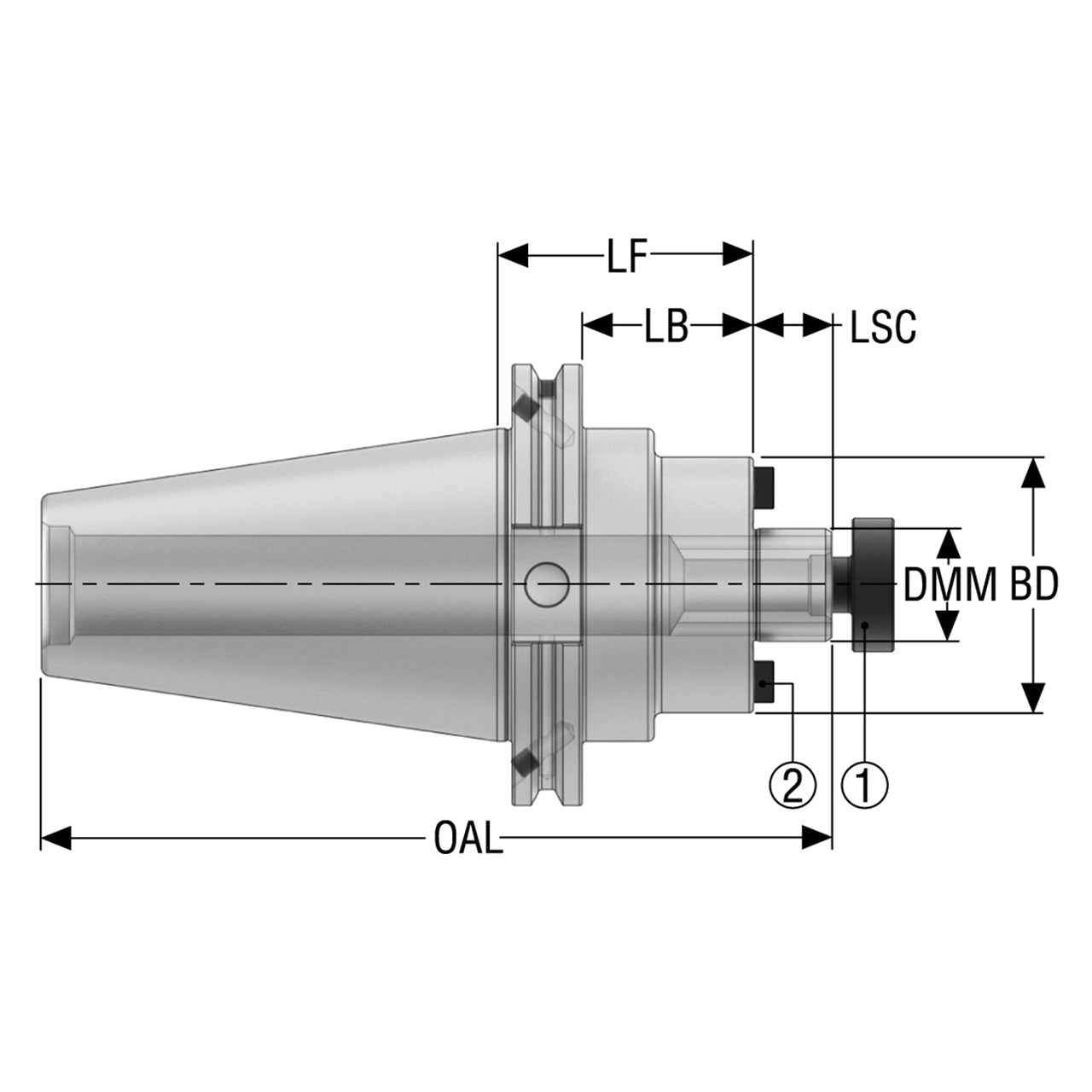

| Manufacturer Part Number | 03197127 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.500" |
| Connection Diameter Workpiece Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 0.750" |
| Body Length (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Clamping Length (Decimal Inch) | 0.562" |
| Clamping Length (mm) | 14.27mm |
| Overall Length (Decimal Inch) | 4.749" |
| Overall Length (mm) | 120.62mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

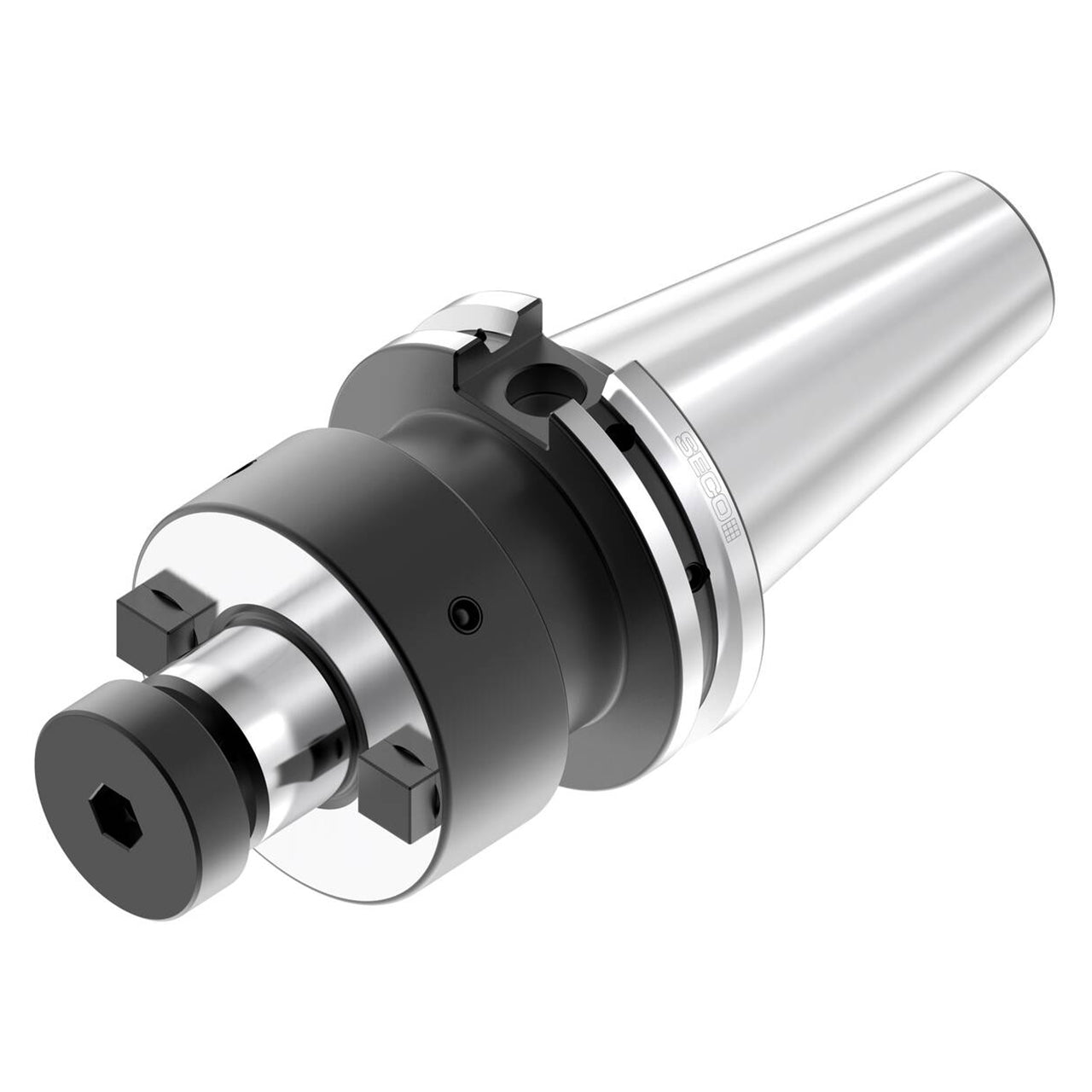

| Product Type | Shell Mill Holder |
