Product Specifications
| Manufacturer Part Number | 03171154 |

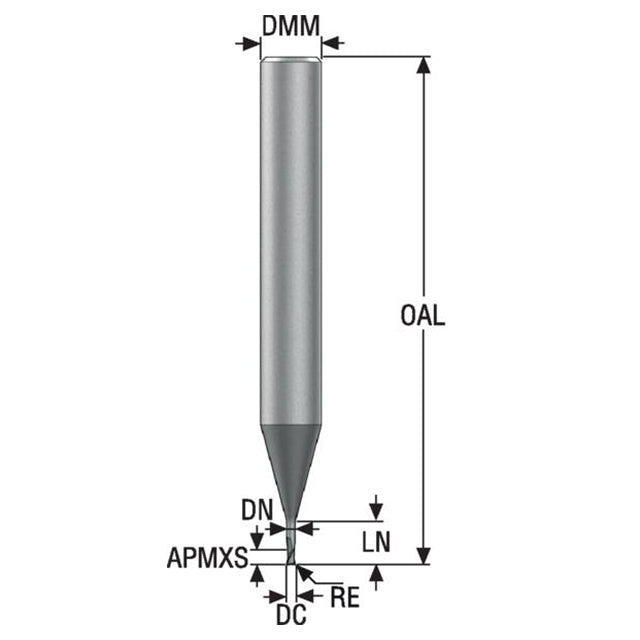

| Cutting Diameter (mm) | 2.50mm |
| Cutting Diameter 1 (mm) | 2.50mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 2.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 4.69mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 3.25mm |
| Overall Length (mm) | 60.00mm |
| Neck Length (mm) | 7.50mm |
| Neck Length 1 (mm) | 7.50mm |
| Cutting Edge Effective Length (mm) | 3.80mm |
| Maximum Depth of Cut (mm) | 3.80mm |
| Corner Radius (mm) | 0.15mm |
| Shank Type | Cylindrical |
| Collision Angle (Degree) | 7.15 Degree |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JME562 |
| Cutting Geometry Type Technical | JME562 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 3 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | SIRON-A |

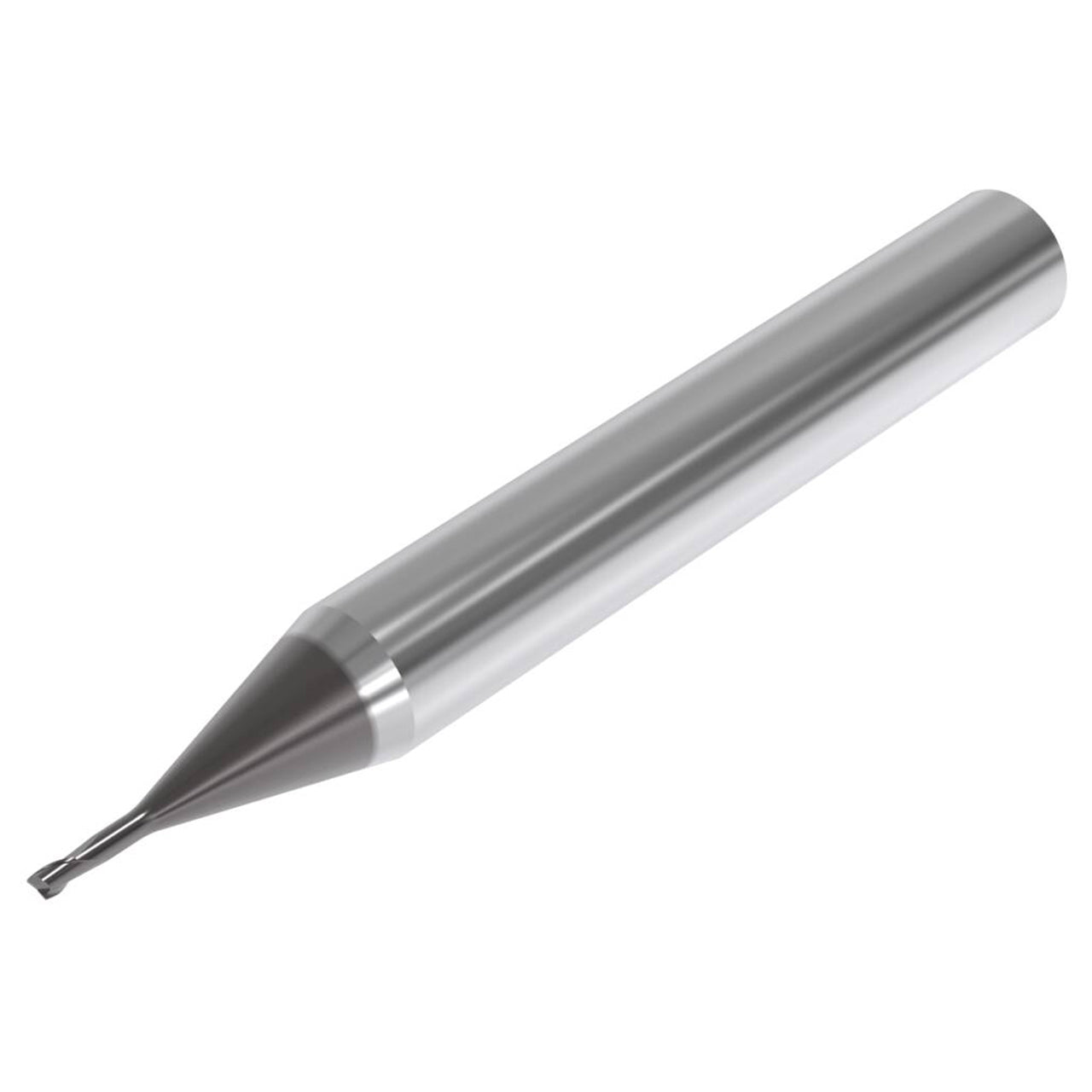

| Product Type | Corner Radius End Mill |
