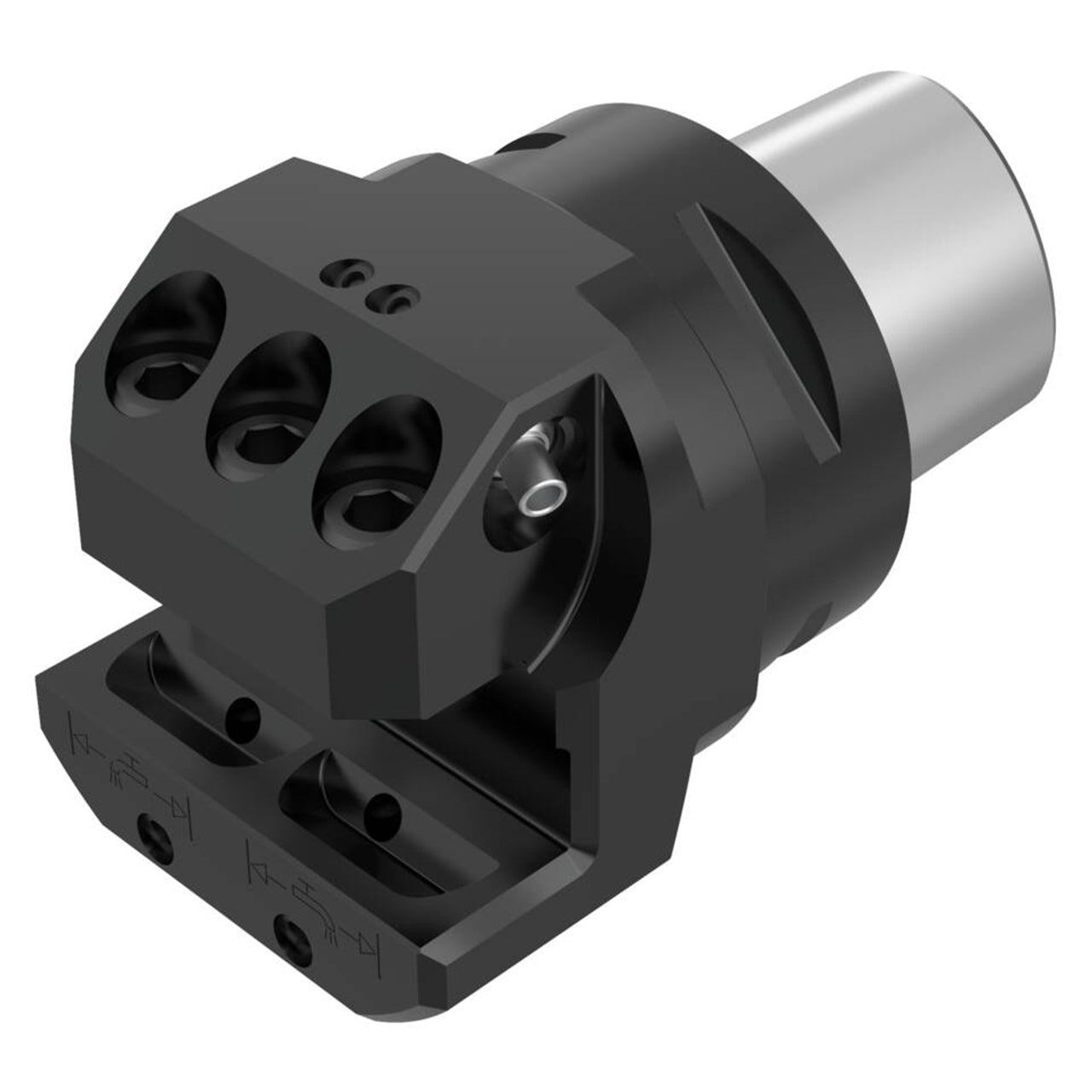

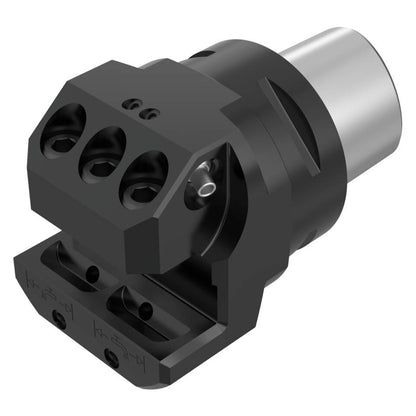

Product Specifications
| Manufacturer Part Number | 03142941 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 4.055" |
| Maximum Tool Changer Interference Diameter (mm) | 103.00mm |
| Functional Height (Decimal Inch) | 0.984" |
| Functional Height (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Protruding Length (Decimal Inch) | 2.953" |
| Protruding Length (mm) | 75.00mm |
| Overall Height (Decimal Inch) | 3.386" |
| Overall Height (mm) | 86.00mm |
| Overall Width (Decimal Inch) | 3.150" |
| Overall Width (mm) | 80.00mm |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.811" |
| Radial Body Width (Decimal Inch) | 1.496" |
| Radial Body Width (mm) | 38.00mm |
| Version (Internal/External/Both) | External |
| Product Type | Modular Tool Holding System Adapter |
