Product Specifications
| Manufacturer Part Number | 03137309 |
| Cutting Diameter (Decimal Inch) | 0.618" |
| Cutting Diameter (mm) | 15.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.315" |
| Contact Surface Diameter Machine Side (mm) | 8.00mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.19mm |
| Functional Length (Decimal Inch) | 0.181" |
| Functional Length (mm) | 4.60mm |
| Spot Chamfer (Decimal Inch) | 0.008" |
| Spot Chamfer (mm) | 0.19mm |
| Minimum Thread Pitch (Decimal Inch) | 0.0591 |
| Minimum Thread Pitch (mm) | 1.5 |
| Maximum Thread Pitch (Decimal Inch) | 0.1083 |
| Maximum Thread Pitch (mm) | 2.75 |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

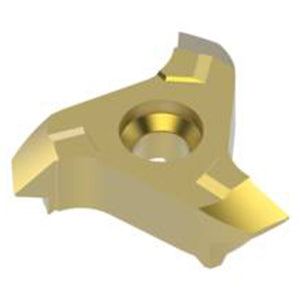

| Product Type | Thread Mill Insert |
