Product Specifications
| Manufacturer Part Number | 03136672 |
| Cutting Diameter (mm) | 31.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 42.00mm |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 98.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 81.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.50mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Programming Radius (mm) | 4.40mm |
| Uncut Thickness (mm) | 1.1 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Orthogonal Angle (Degree) | -8.5 Degree |
| Axial Rake Angle (Degree) | -4 Degree |
| Tool Cutting Edge Angle (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 12.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 12.5 Degree |
| Maximum Ramping Angle (Degree) | 2.1 Degree |
| Maximum Rotational Speed (rpm) | 10700 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

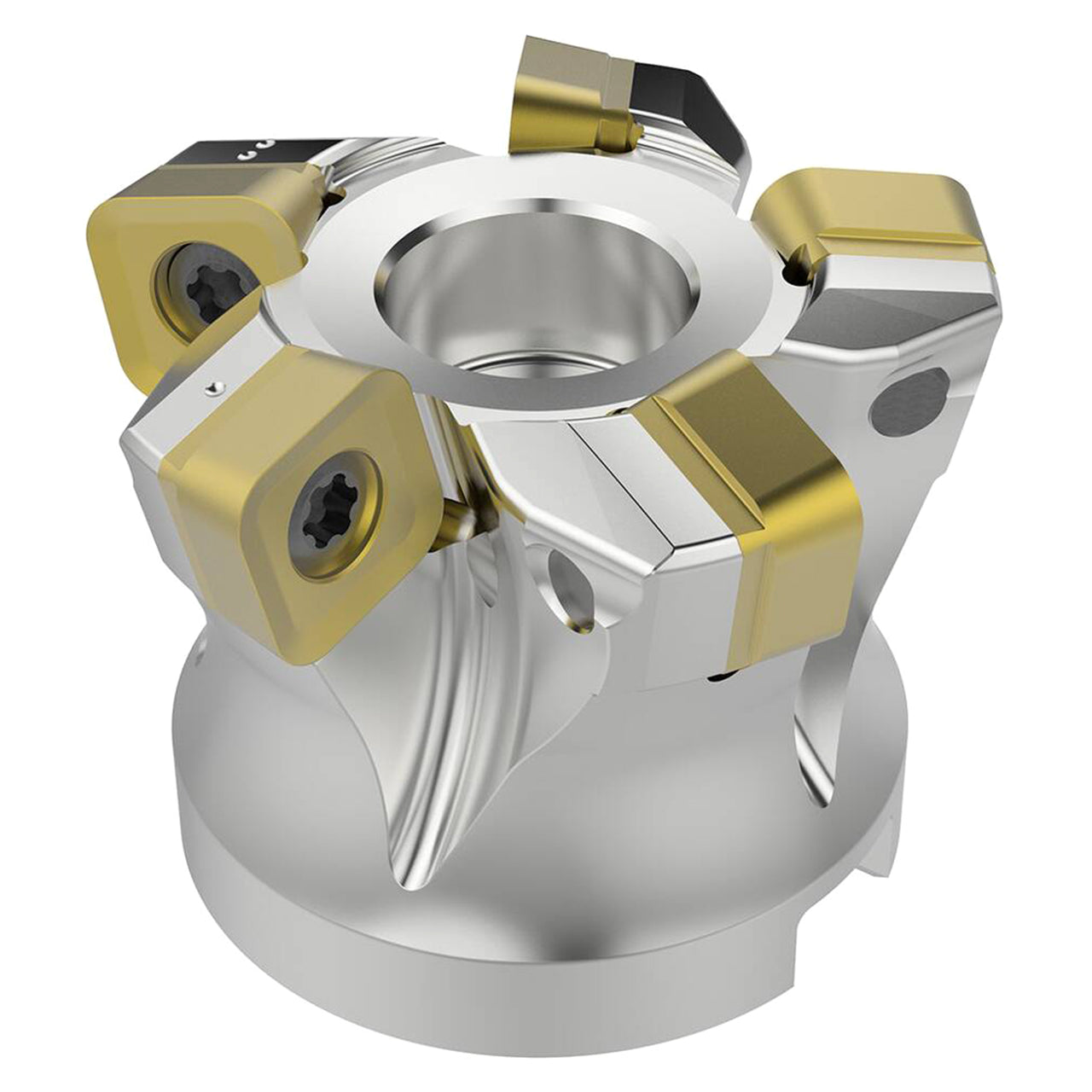

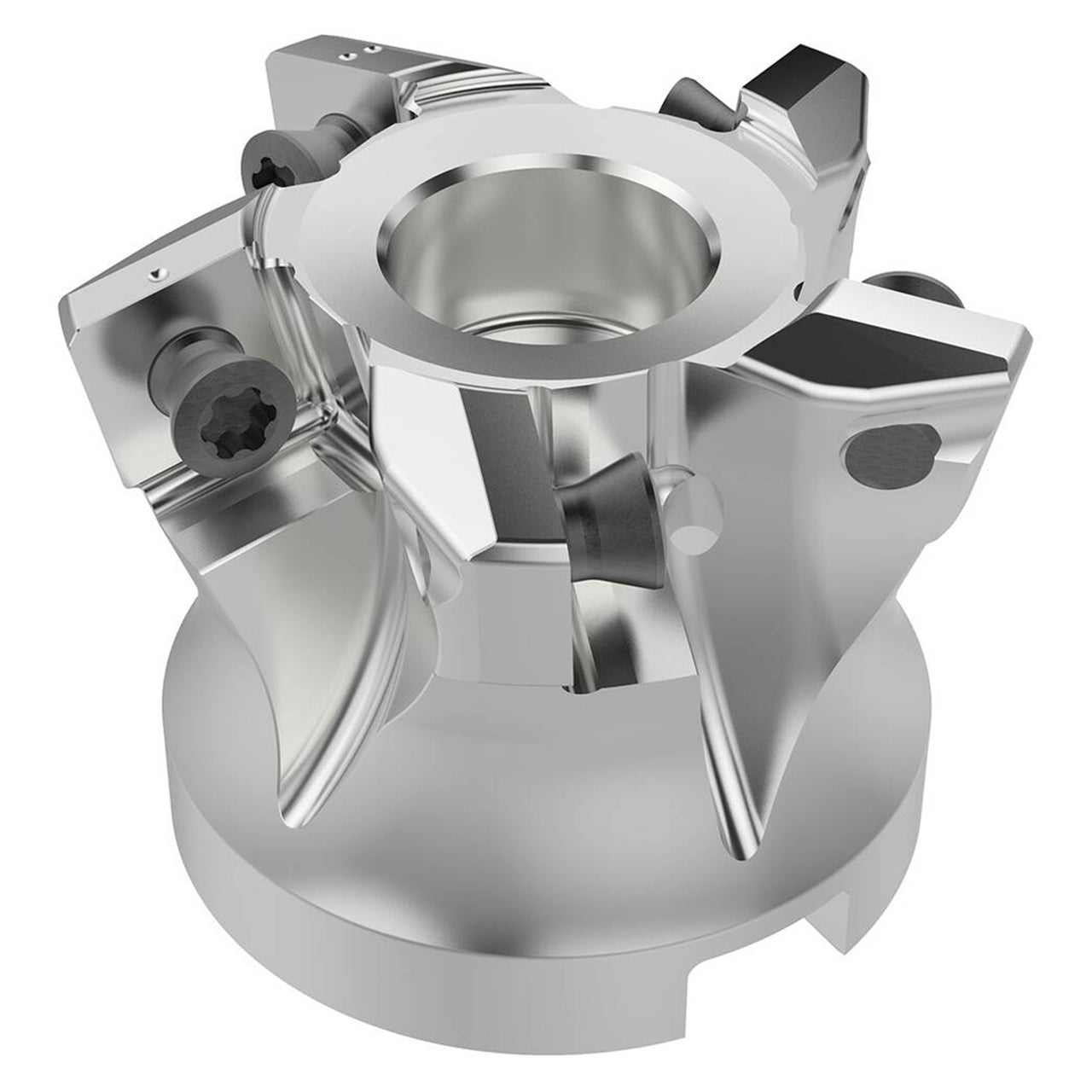

| Product Type | High Feed Square Insert |
