Product Specifications

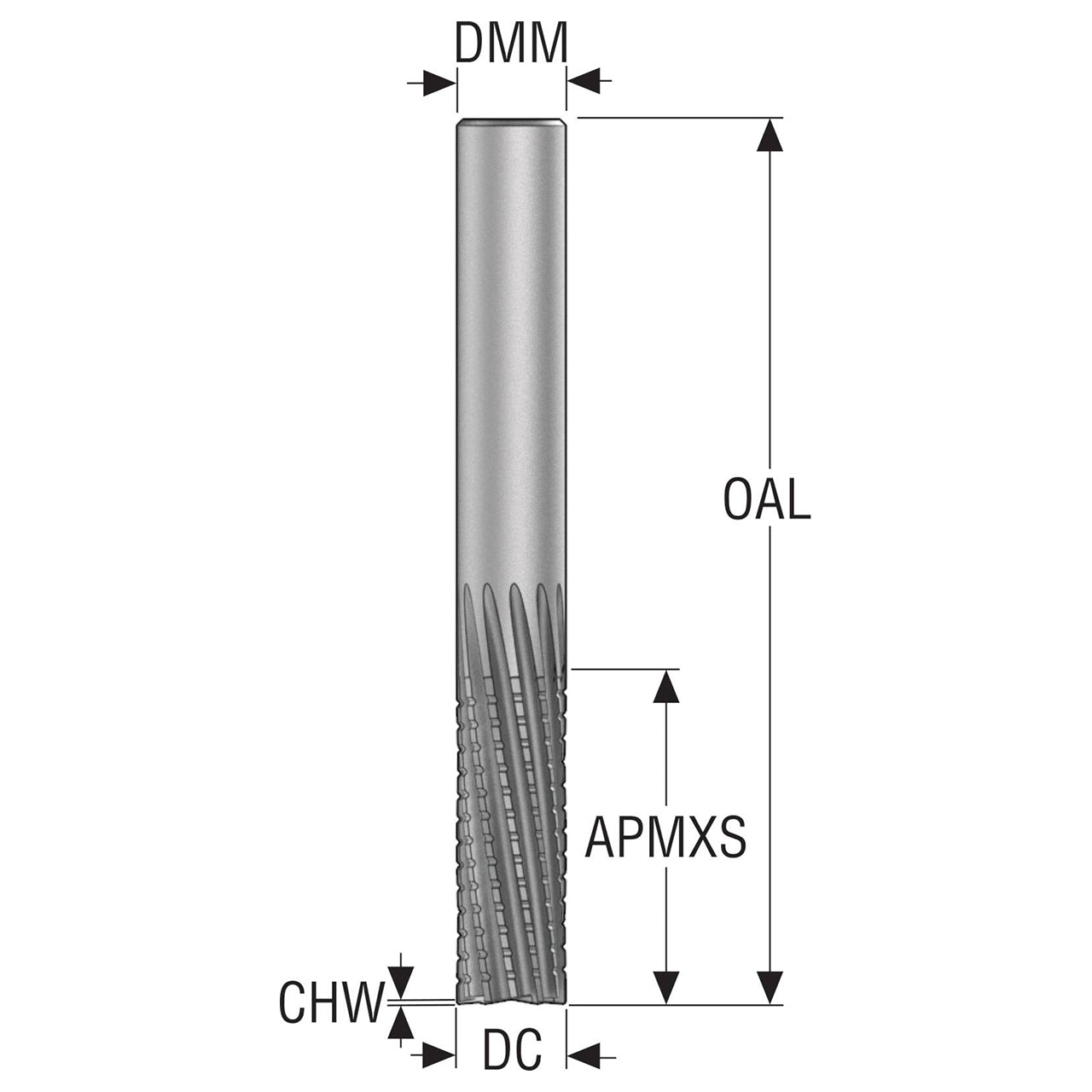

| Manufacturer Part Number | 03135016 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.84mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 7.80mm |
| Overall Length (mm) | 62.00mm |
| Cutting Edge Effective Length (mm) | 18.00mm |
| Maximum Depth of Cut (mm) | 18.00mm |
| Shank Type | Cylindrical |
| Cutting Edge Count | 10 |
| Cutting Geometry Type | JC877 |
| Cutting Geometry Type Technical | JC877 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | -10 Degree |
| Flute Helix Direction | Left |
| Rake Radial Angle (Degree) | 6 Degree |
| Axial Rake Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 10 |
| Material | Carbide |
| Coating | DURA |

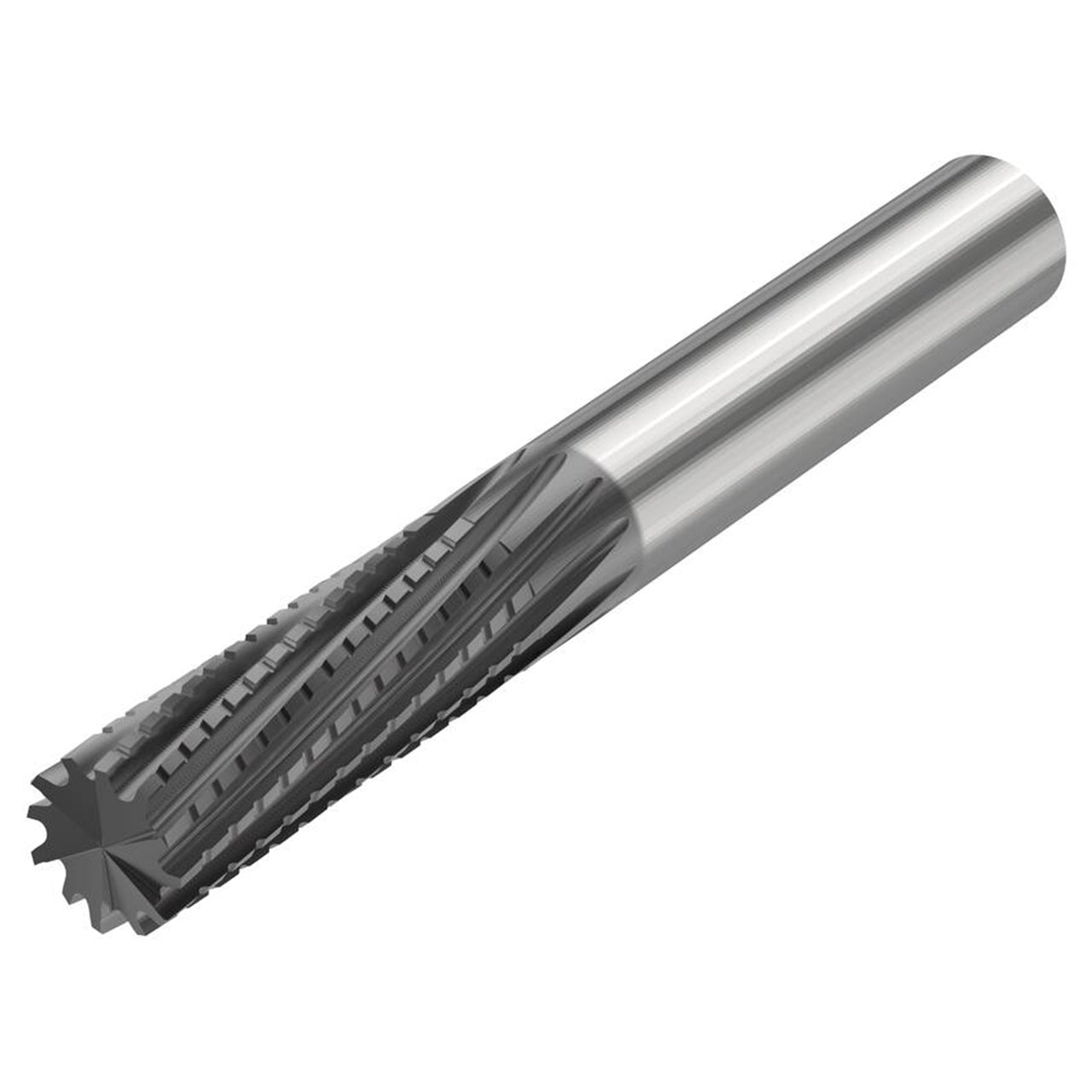

| Product Type | Corner Chamfer End Mill |
