Product Specifications
| Manufacturer Part Number | 03134586 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.937" |
| Maximum Tool Changer Interference Diameter (mm) | 100.00mm |
| Functional Height (Decimal Inch) | 0.984" |
| Functional Height (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 6.299" |
| Functional Length (mm) | 160.00mm |
| Overall Height (Decimal Inch) | 2.717" |
| Overall Height (mm) | 69.00mm |
| Overall Width (Decimal Inch) | 2.736" |
| Overall Width (mm) | 69.50mm |
| Functional Width (Decimal Inch) | 1.260" |
| Functional Width (mm) | 32.00mm |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.457" |
| Radial Body Width (mm) | 37.00mm |
| Shank Type | Seco-Capto |
| Version (Internal/External/Both) | External |

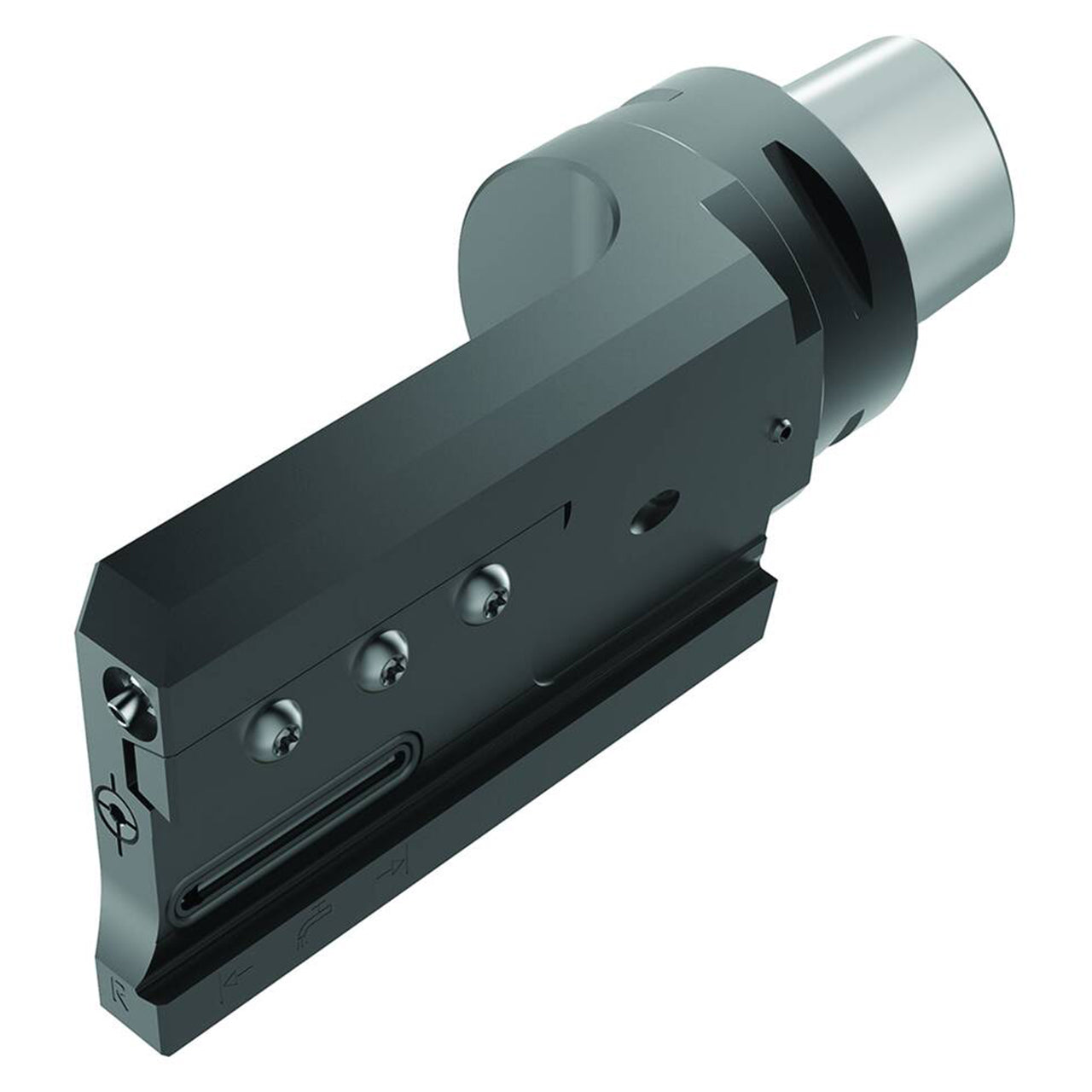

| Product Type | Indexable Cut-Off Blade for Tool Block |
