Product Specifications
| Manufacturer Part Number | 03131673 |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Minimum Connection Bore Diameter (mm) | 4.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Maximum Connection Bore Diameter (mm) | 4.00mm |
| Body Diameter 1 (Decimal Inch) | 0.819" |
| Body Diameter 1 (mm) | 20.80mm |
| Keyway Width (Decimal Inch) | 0.124" |
| Keyway Width (mm) | 3.15mm |
| Body Length (Decimal Inch) | 0.591" |
| Body Length (mm) | 15.00mm |
| Overall Length (Decimal Inch) | 1.240" |
| Overall Length (mm) | 31.50mm |
| Body Half Taper Angle Degree) | 8 Degree |

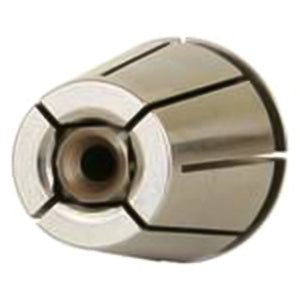

| Product Type | Collet |
