Product Specifications
| Manufacturer Part Number | 03120992 |
| Functional Length (mm) | 174.00mm |
| Overall Length (mm) | 195.60mm |
| Functional Height (mm) | 32.00mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Shank Width (mm) | 40.00mm |
| Maximum Cutting Depth (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | SN..19 |

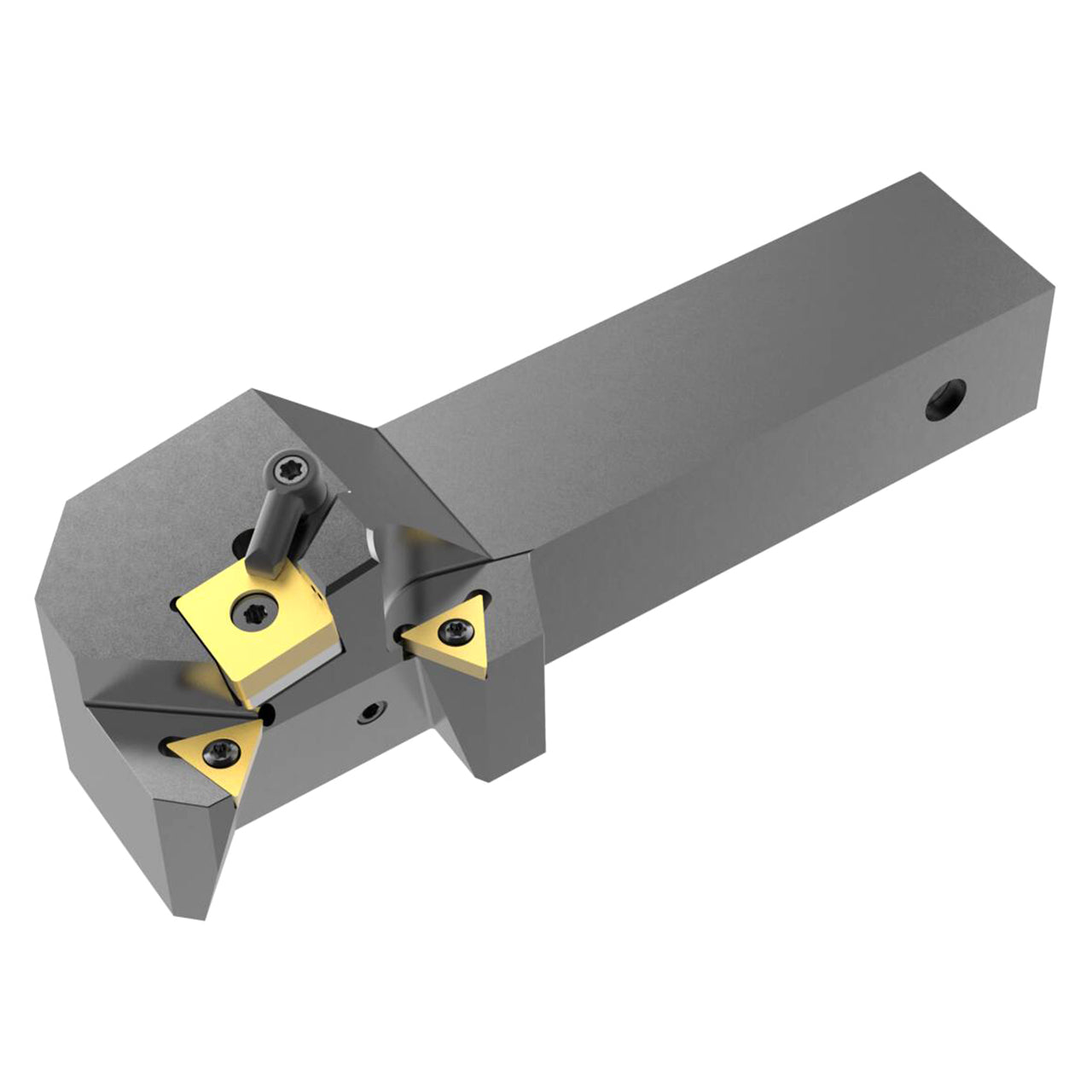

| Product Type | Indexable Turning Toolholder |
