Product Specifications
| Manufacturer Part Number | 03119968 |
| Body Diameter 1 (Decimal Inch) | 0.898" |
| Body Diameter 1 (mm) | 22.80mm |
| Body Diameter 2 (Decimal Inch) | 0.661" |
| Body Diameter 2 (mm) | 16.80mm |
| Body Diameter 3 (Decimal Inch) | 1.032" |
| Body Diameter 3 (mm) | 26.20mm |
| Flange Diameter (Decimal Inch) | 1.370" |
| Flange Diameter (mm) | 34.80mm |
| Coolant Entry Diameter (Decimal Inch) | 0.252" |
| Coolant Entry Diameter (mm) | 6.40mm |
| Body Length 1 (Decimal Inch) | 1.374" |
| Body Length 1 (mm) | 34.90mm |
| Protruding Length (Decimal Inch) | 1.787" |
| Protruding Length (mm) | 45.40mm |
| Overall Length (Decimal Inch) | 3.331" |
| Overall Length (mm) | 84.60mm |
| Connection Retention Knob Thread Size | 1-8 UNC |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 30.10mm |
| Driving Key (Decimal Inch) | 1.185" |

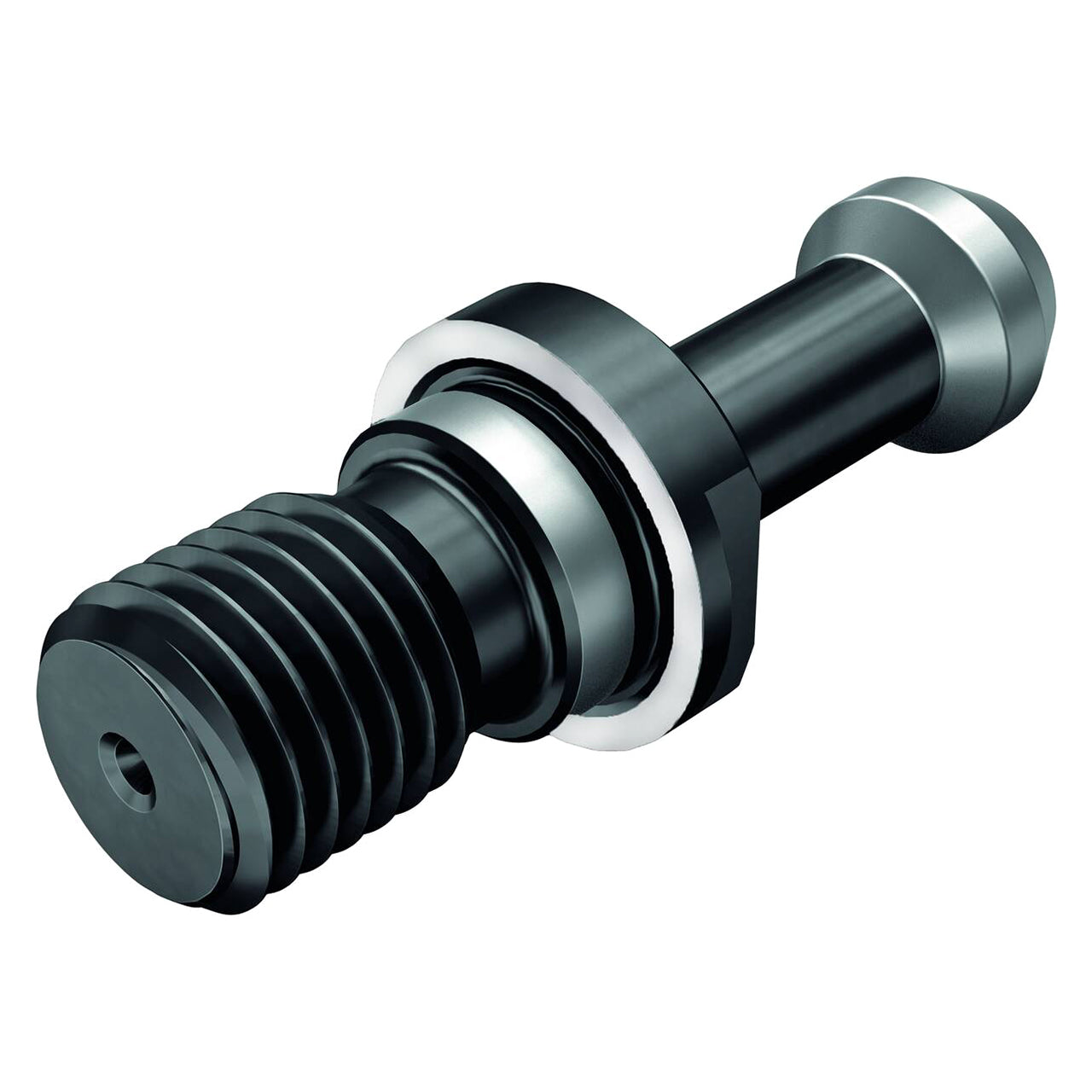

| Product Type | Retention Knob |
