Product Specifications
| Manufacturer Part Number | 03119960 |
| Body Diameter 1 (Decimal Inch) | 0.740" |
| Body Diameter 1 (mm) | 18.80mm |
| Body Diameter 2 (Decimal Inch) | 0.488" |
| Body Diameter 2 (mm) | 12.40mm |
| Flange Diameter (Decimal Inch) | 0.929" |
| Flange Diameter (mm) | 23.60mm |
| Coolant Entry Diameter (Decimal Inch) | 0.280" |
| Coolant Entry Diameter (mm) | 7.10mm |
| Body Length 1 (Decimal Inch) | 0.441" |
| Body Length 1 (mm) | 11.20mm |
| Protruding Length (Decimal Inch) | 0.642" |
| Protruding Length (mm) | 16.30mm |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (mm) | 38.10mm |
| Connection Retention Knob Thread Size | 5/8-11 UNC |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 18.90mm |
| Driving Key (Decimal Inch) | 0.744" |

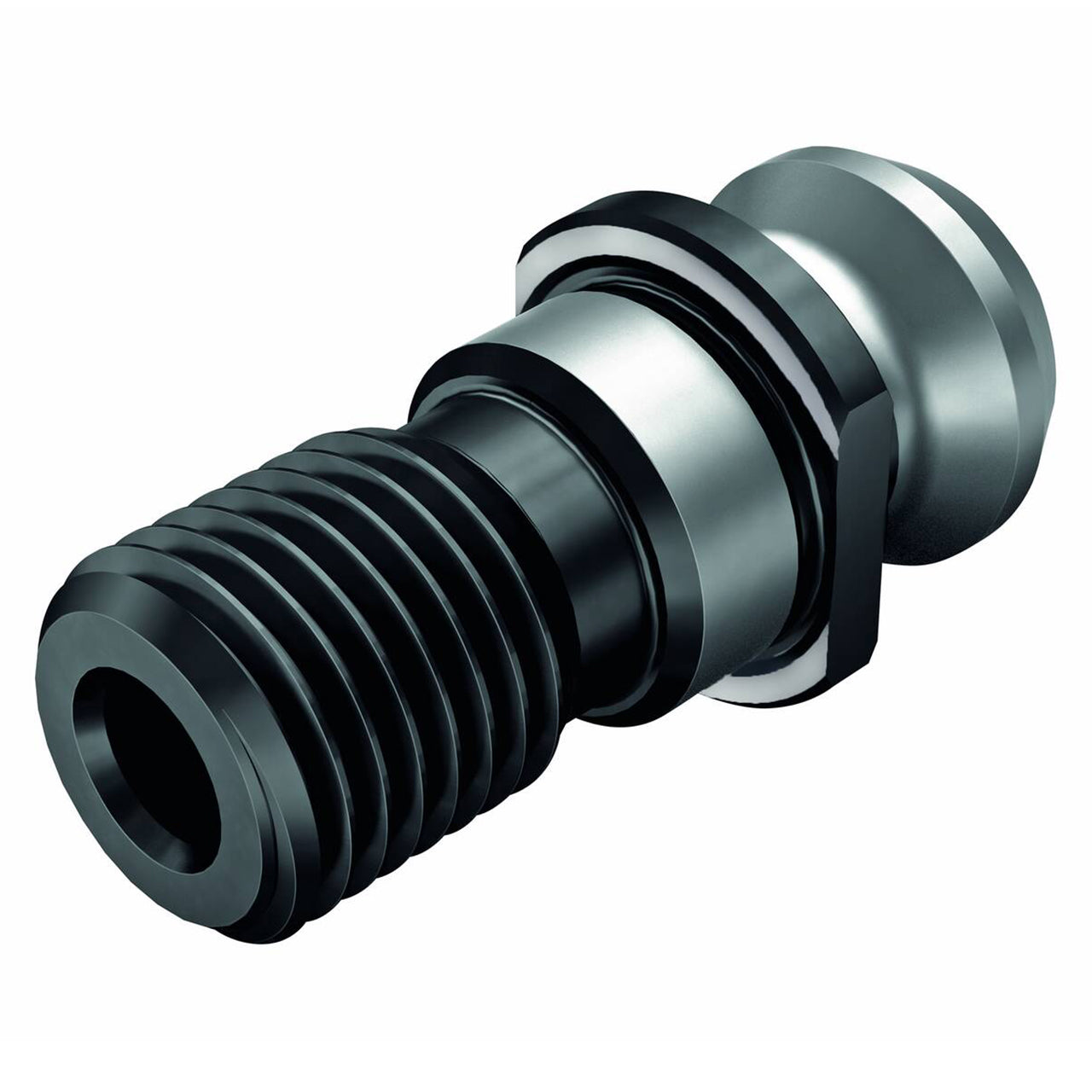

| Product Type | Retention Knob |
