Product Specifications
| Manufacturer Part Number | 03119933 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 0.709" |
| Body Diameter 2 (mm) | 18.00mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.417" |
| Flange Diameter (mm) | 36.00mm |
| Thread Diameter Size | M24 |
| Coolant Entry Diameter (Decimal Inch) | 0.236" |
| Coolant Entry Diameter (mm) | 6.00mm |
| Body Length 1 (Decimal Inch) | 0.906" |
| Body Length 1 (mm) | 23.00mm |
| Protruding Length (Decimal Inch) | 1.221" |
| Protruding Length (mm) | 31.00mm |
| Overall Length (Decimal Inch) | 2.795" |
| Overall Length (mm) | 71.00mm |
| Connection Retention Knob Thread Size | M24 |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

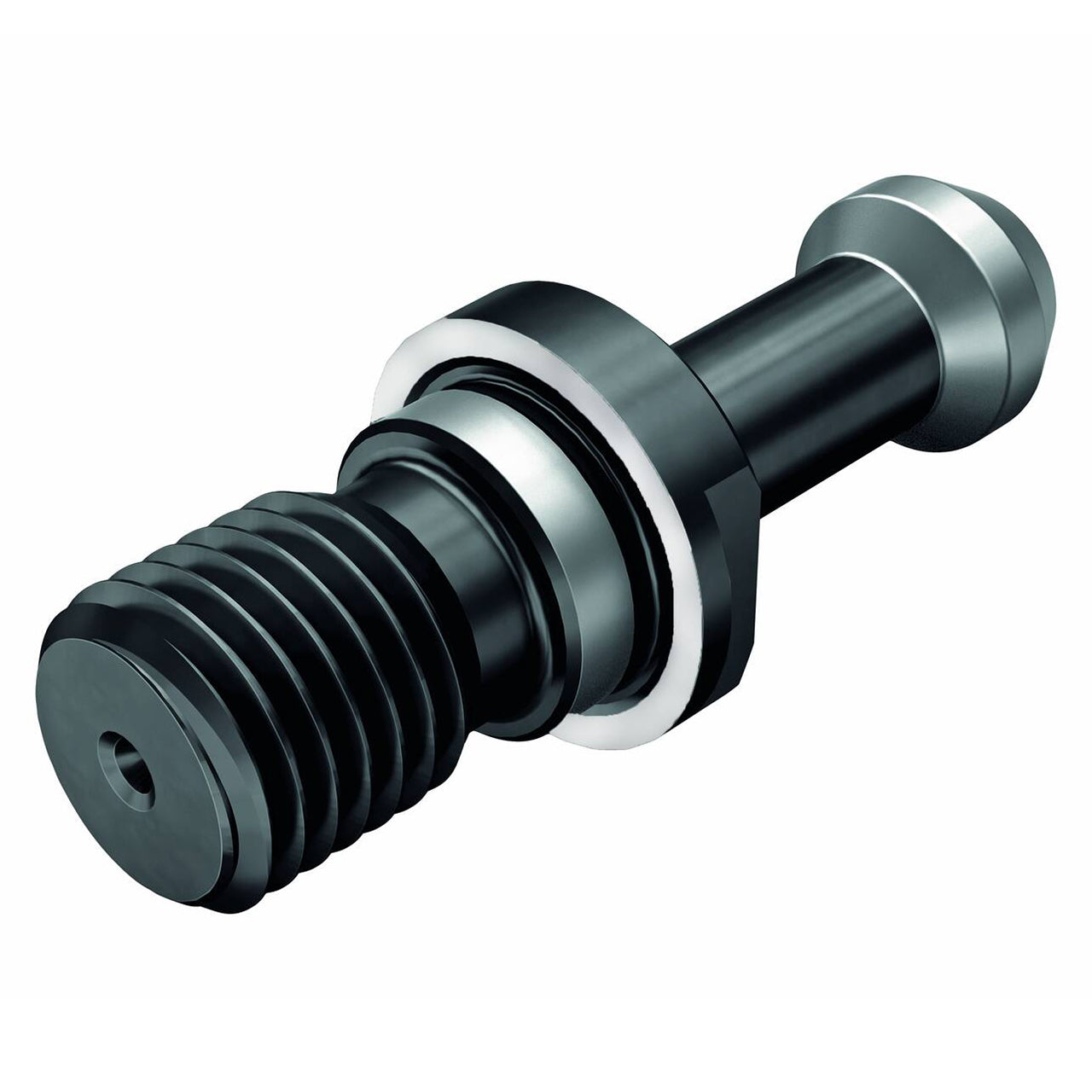

| Product Type | Retention Knob |
