Product Specifications
| Manufacturer Part Number | 03119903 |
| Body Diameter 1 (Decimal Inch) | 1.102" |
| Body Diameter 1 (mm) | 28.00mm |
| Body Diameter 2 (Decimal Inch) | 0.827" |
| Body Diameter 2 (mm) | 21.00mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.417" |
| Flange Diameter (mm) | 36.00mm |
| Thread Diameter Size | M24 |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Protruding Length (Decimal Inch) | 1.339" |
| Protruding Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 2.913" |
| Overall Length (mm) | 74.00mm |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle Degree) | 15 Degree |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

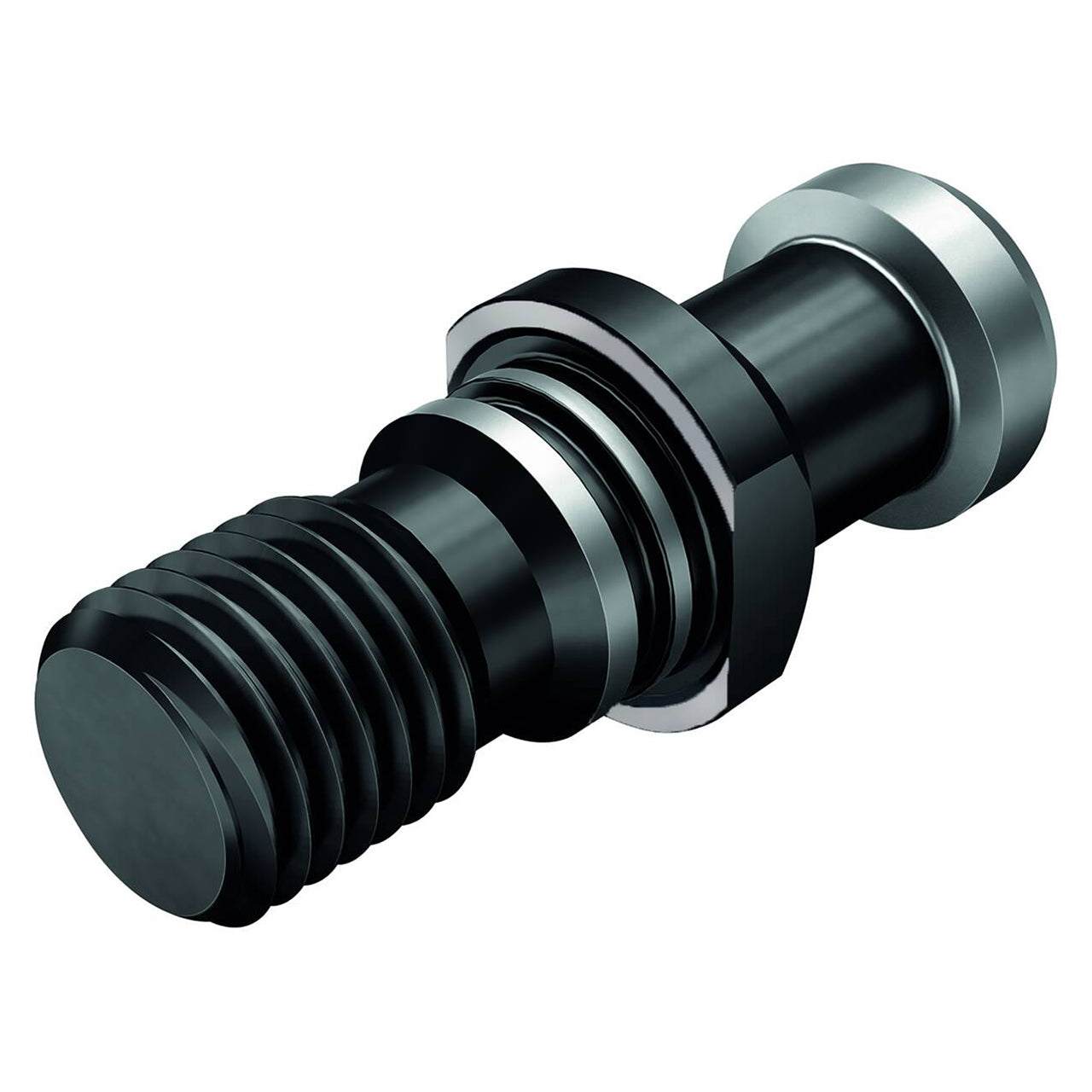

| Product Type | Retention Knob |
