Product Specifications
| Manufacturer Part Number | 03119898 |
| Body Diameter 1 (Decimal Inch) | 0.746" |
| Body Diameter 1 (mm) | 18.95mm |
| Body Diameter 2 (Decimal Inch) | 0.510" |
| Body Diameter 2 (mm) | 12.95mm |
| Body Diameter 3 (Decimal Inch) | 0.669" |
| Body Diameter 3 (mm) | 17.00mm |
| Flange Diameter (Decimal Inch) | 0.886" |
| Flange Diameter (mm) | 22.50mm |
| Thread Diameter Size | M16 |
| Coolant Entry Diameter (Decimal Inch) | 0.289" |
| Coolant Entry Diameter (mm) | 7.35mm |
| Body Length 1 (Decimal Inch) | 0.439" |
| Body Length 1 (mm) | 11.15mm |
| Protruding Length (Decimal Inch) | 0.646" |
| Protruding Length (mm) | 16.40mm |
| Overall Length (Decimal Inch) | 1.748" |
| Overall Length (mm) | 44.40mm |
| Connection Retention Knob Thread Size | M16 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 18.00mm |
| Driving Key (Decimal Inch) | 0.709" |

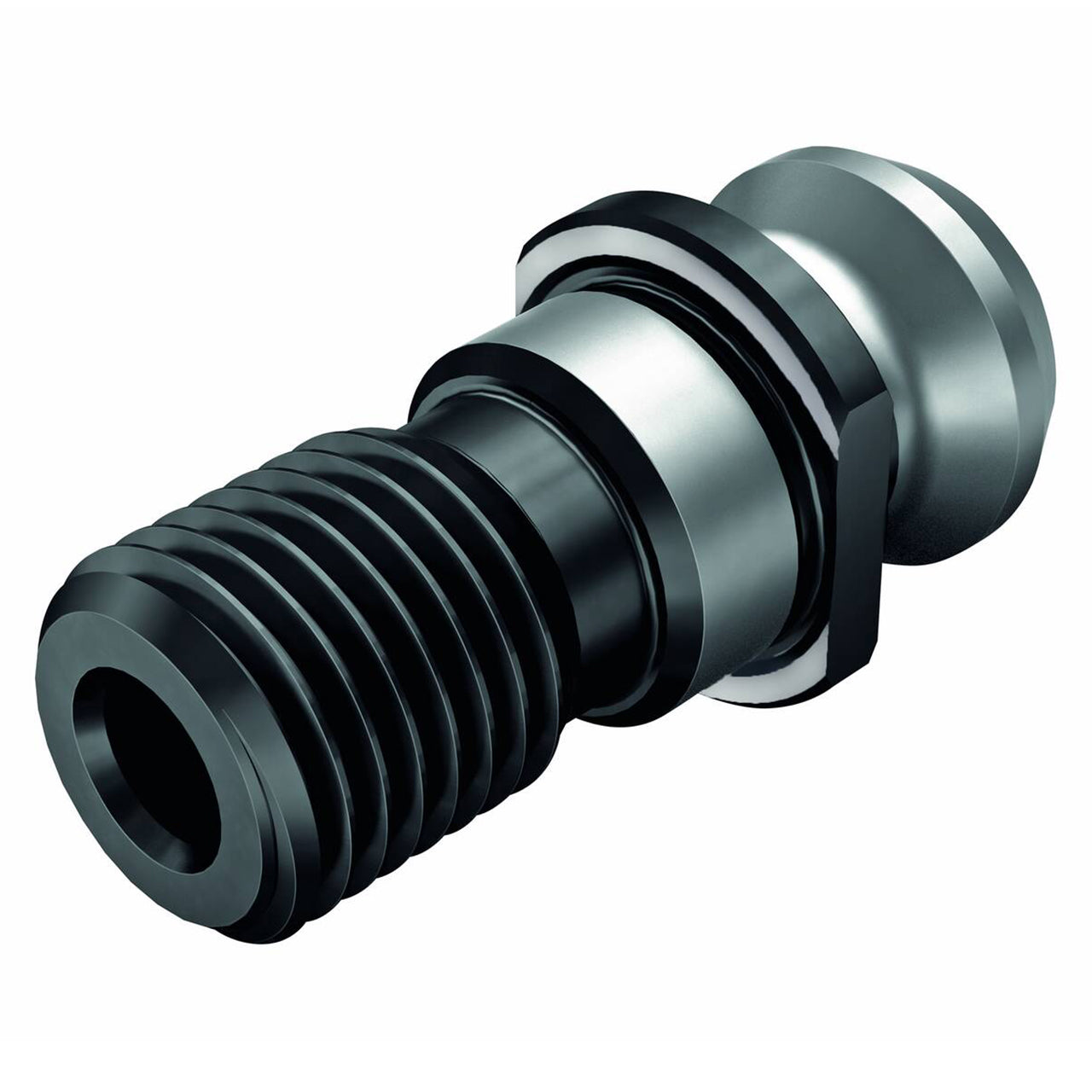

| Product Type | Retention Knob |
