Product Specifications
| Manufacturer Part Number | 03119897 |
| Body Diameter 1 (Decimal Inch) | 1.146" |
| Body Diameter 1 (mm) | 29.10mm |
| Body Diameter 2 (Decimal Inch) | 0.772" |
| Body Diameter 2 (mm) | 19.60mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.457" |
| Flange Diameter (mm) | 37.00mm |
| Thread Diameter Size | M24 |
| Body Length 1 (Decimal Inch) | 0.707" |
| Body Length 1 (mm) | 17.95mm |
| Protruding Length (Decimal Inch) | 1.006" |
| Protruding Length (mm) | 25.55mm |
| Overall Length (Decimal Inch) | 2.581" |
| Overall Length (mm) | 65.55mm |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

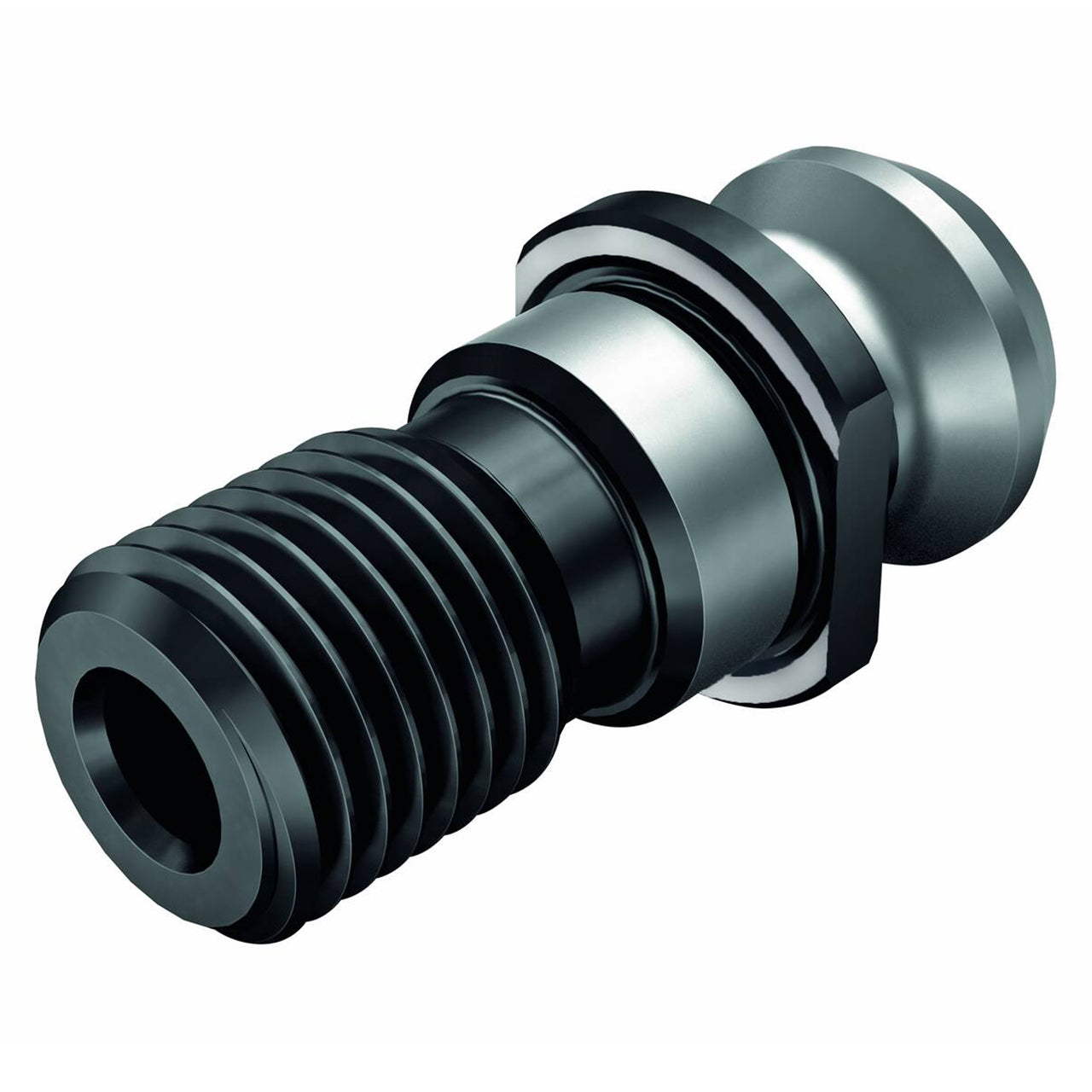

| Product Type | Retention Knob |
