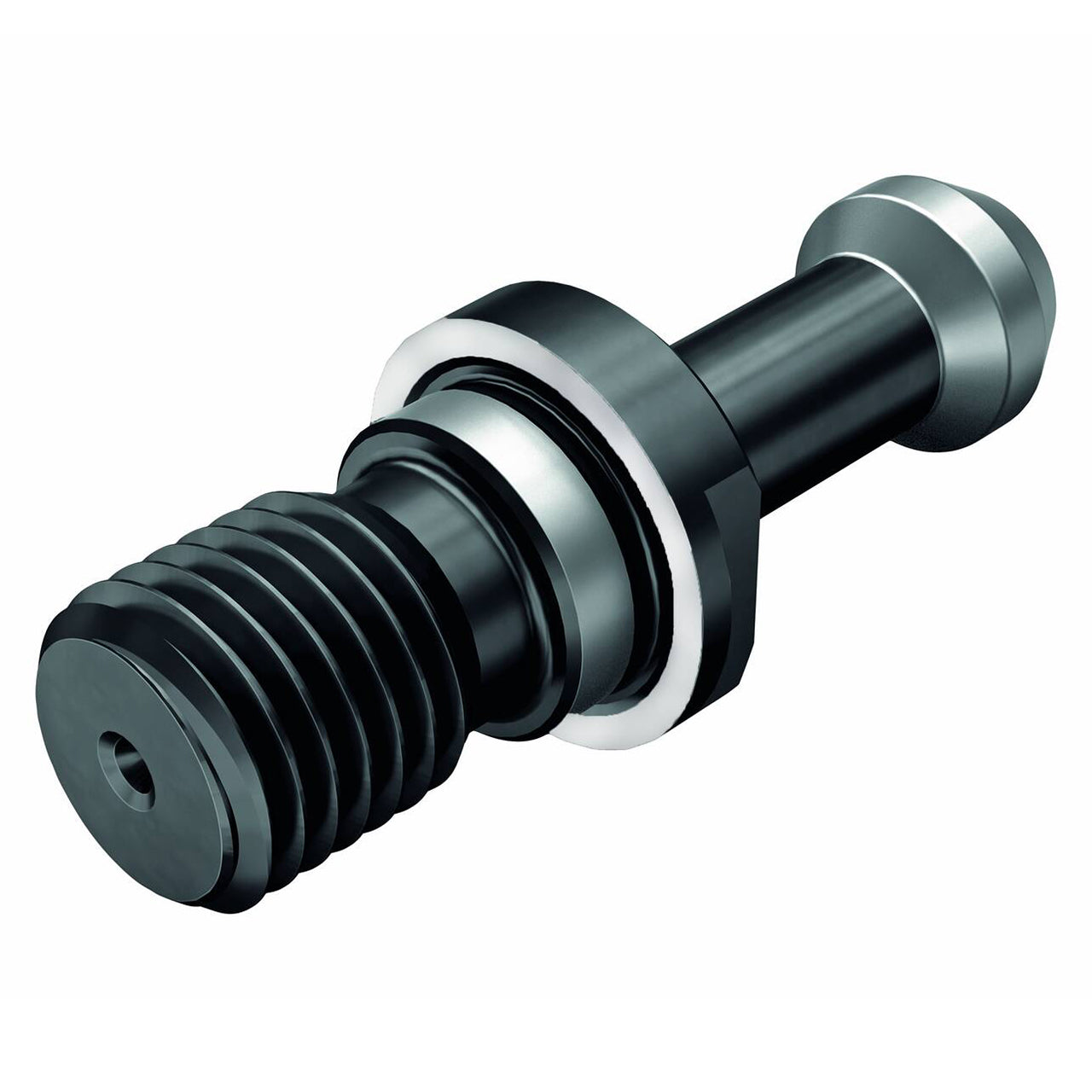

Product Specifications
| Manufacturer Part Number | 03119890 |
| Body Diameter 1 (Decimal Inch) | 0.433" |
| Body Diameter 1 (mm) | 11.00mm |
| Body Diameter 2 (Decimal Inch) | 0.276" |
| Body Diameter 2 (mm) | 7.00mm |
| Body Diameter 3 (Decimal Inch) | 0.492" |
| Body Diameter 3 (mm) | 12.50mm |
| Flange Diameter (Decimal Inch) | 0.650" |
| Flange Diameter (mm) | 16.50mm |
| Thread Diameter Size | M12 |
| Coolant Entry Diameter (Decimal Inch) | 0.118" |
| Coolant Entry Diameter (mm) | 3.00mm |
| Body Length 1 (Decimal Inch) | 0.709" |
| Body Length 1 (mm) | 18.00mm |
| Protruding Length (Decimal Inch) | 0.906" |
| Protruding Length (mm) | 23.00mm |
| Overall Length (Decimal Inch) | 1.693" |
| Overall Length (mm) | 43.00mm |
| Connection Retention Knob Thread Size | M12 |
| Body Half Taper Angle Degree) | 30 Degree |
| Driving Key (mm) | 13.00mm |
| Driving Key (Decimal Inch) | 0.512" |
| Product Type | Retention Knob |
