Product Specifications
| Manufacturer Part Number | 03115725 |
| Cutting Diameter (Decimal Inch) | 2.499" |
| Cutting Diameter (mm) | 63.48mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.750" |
| Contact Surface Diameter Machine Side (mm) | 69.85mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.000" |
| Maximum Cutting Diameter (mm) | 76.20mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Depth of Key Way (Decimal Inch) | 0.287" |
| Depth of Key Way (mm) | 7.30mm |
| Keyway Width (Decimal Inch) | 0.508" |
| Keyway Width (mm) | 12.90mm |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Maximum Rotational Speed (rpm) | 9400 rpm |
| Shank Type | Arbor |

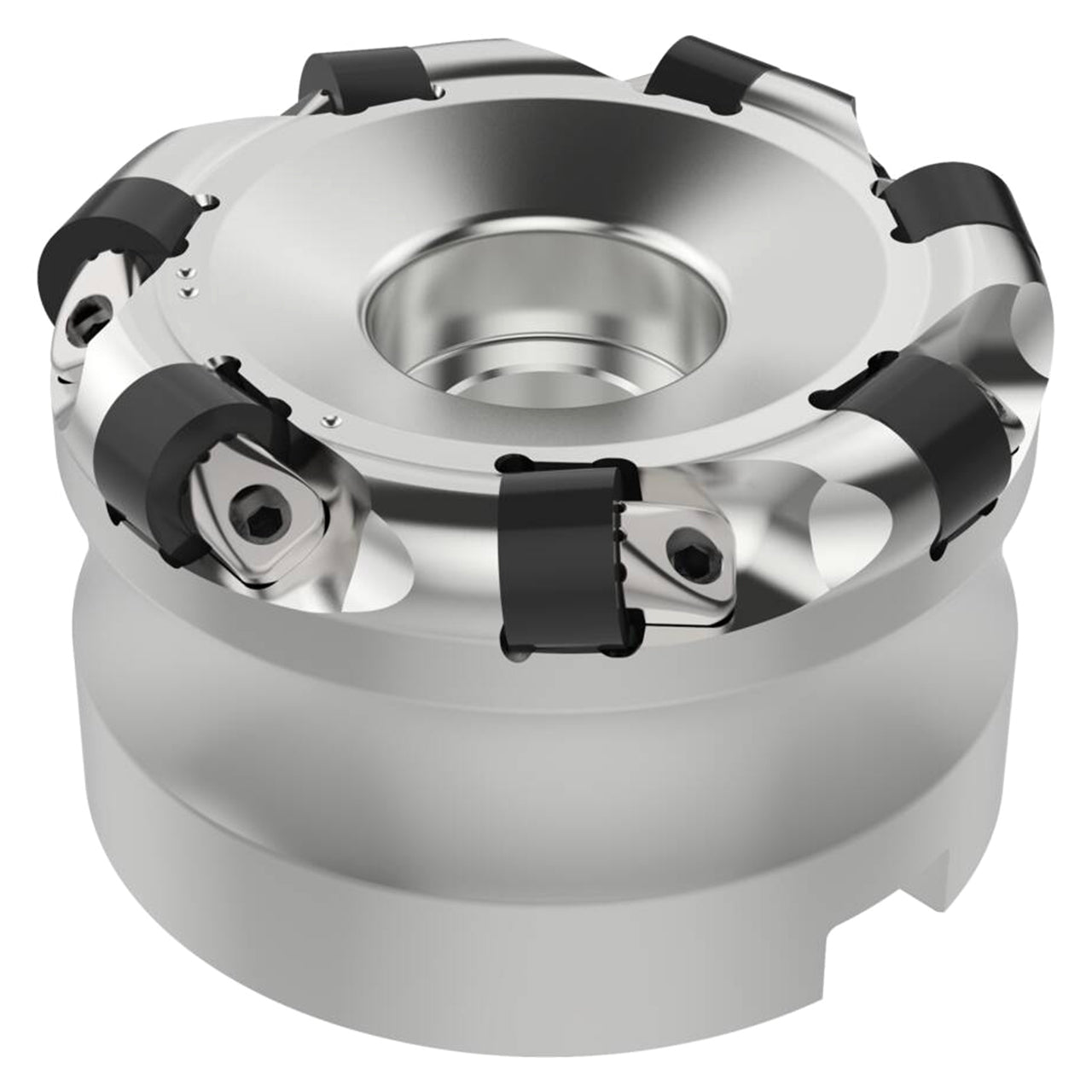

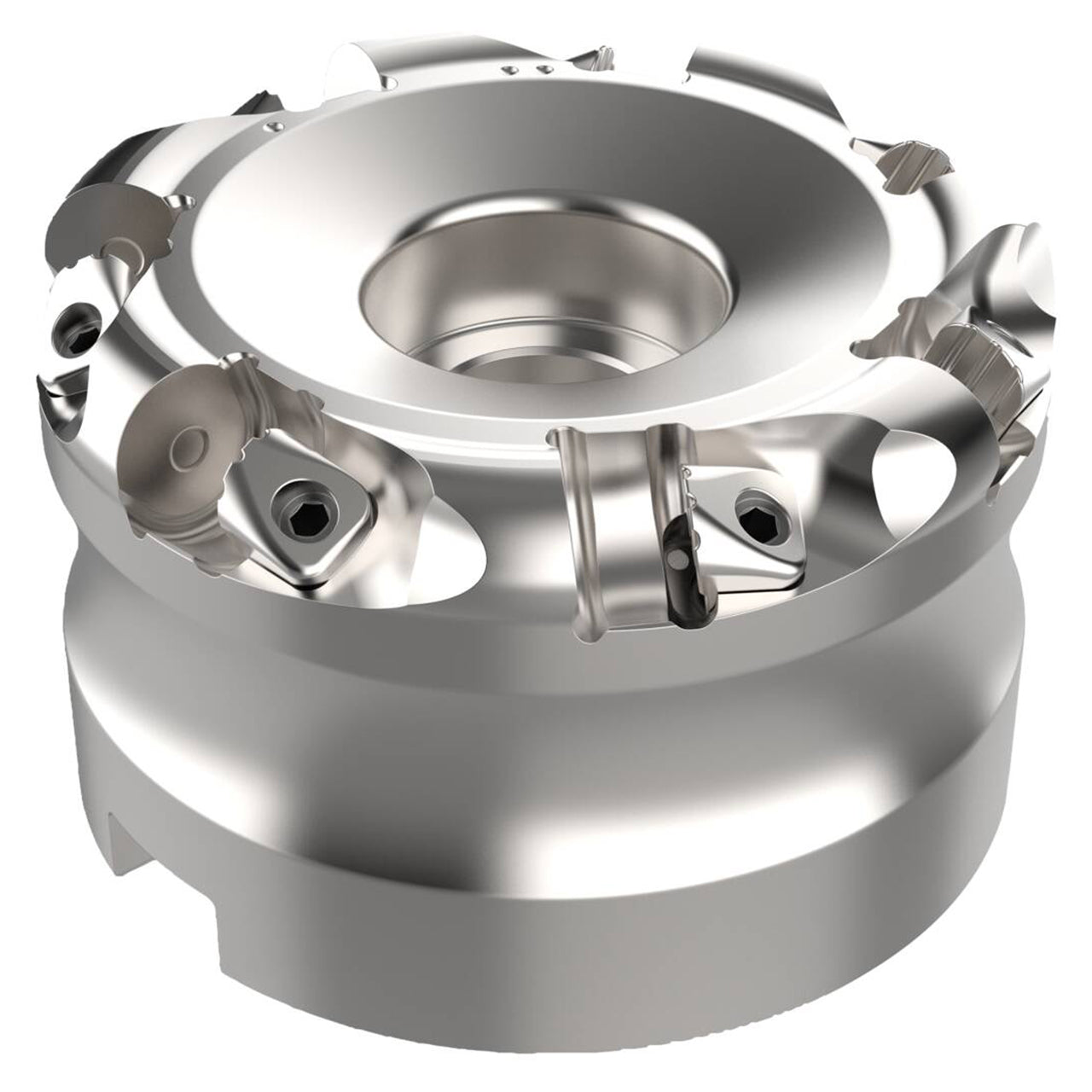

| Product Type | Indexable Copy Face Mill |
