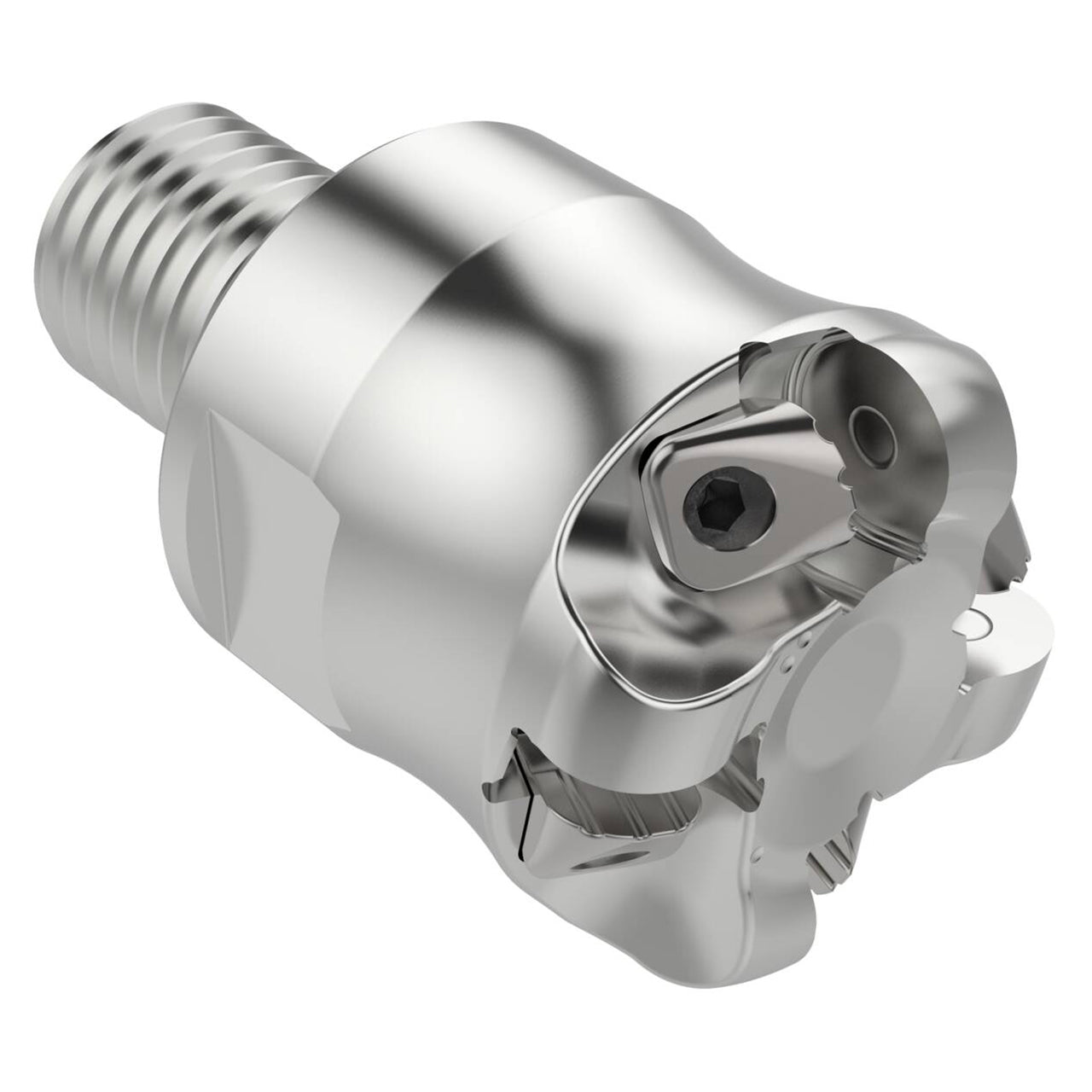

Product Specifications
| Manufacturer Part Number | 03115679 |
| Cutting Diameter (mm) | 27.42mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (mm) | 79.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 67.40mm |
| Functional Length (mm) | 40.00mm |
| Overall Length (mm) | 67.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Maximum Ramping Angle (Degree) | 3.2 Degree |
| Maximum Rotational Speed (rpm) | 18600 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |
| Product Type | Indexable Copy Face Mill |
