Product Specifications
| Manufacturer Part Number | 03099167 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.260" |
| Body Diameter 2 (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.472" |
| Connection Bore Diameter (mm) | 12.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Minimum Connection Bore Diameter (mm) | 12.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (mm) | 12.00mm |
| Thread Diameter Size | M10x1 |
| Body Length (Decimal Inch) | 2.598" |
| Body Length (mm) | 66.00mm |
| Functional Length (Decimal Inch) | 2.323" |
| Functional Length (mm) | 59.00mm |
| Minimum Functional Length (Decimal Inch) | 1.929" |
| Protruding Length (Decimal Inch) | 3.740" |
| Protruding Length (mm) | 95.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 5.709" |
| Overall Length (mm) | 145.00mm |
| Connection Bore Depth (mm) | 48.00mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.512" |
| Radial Location (mm) | 13.00mm |

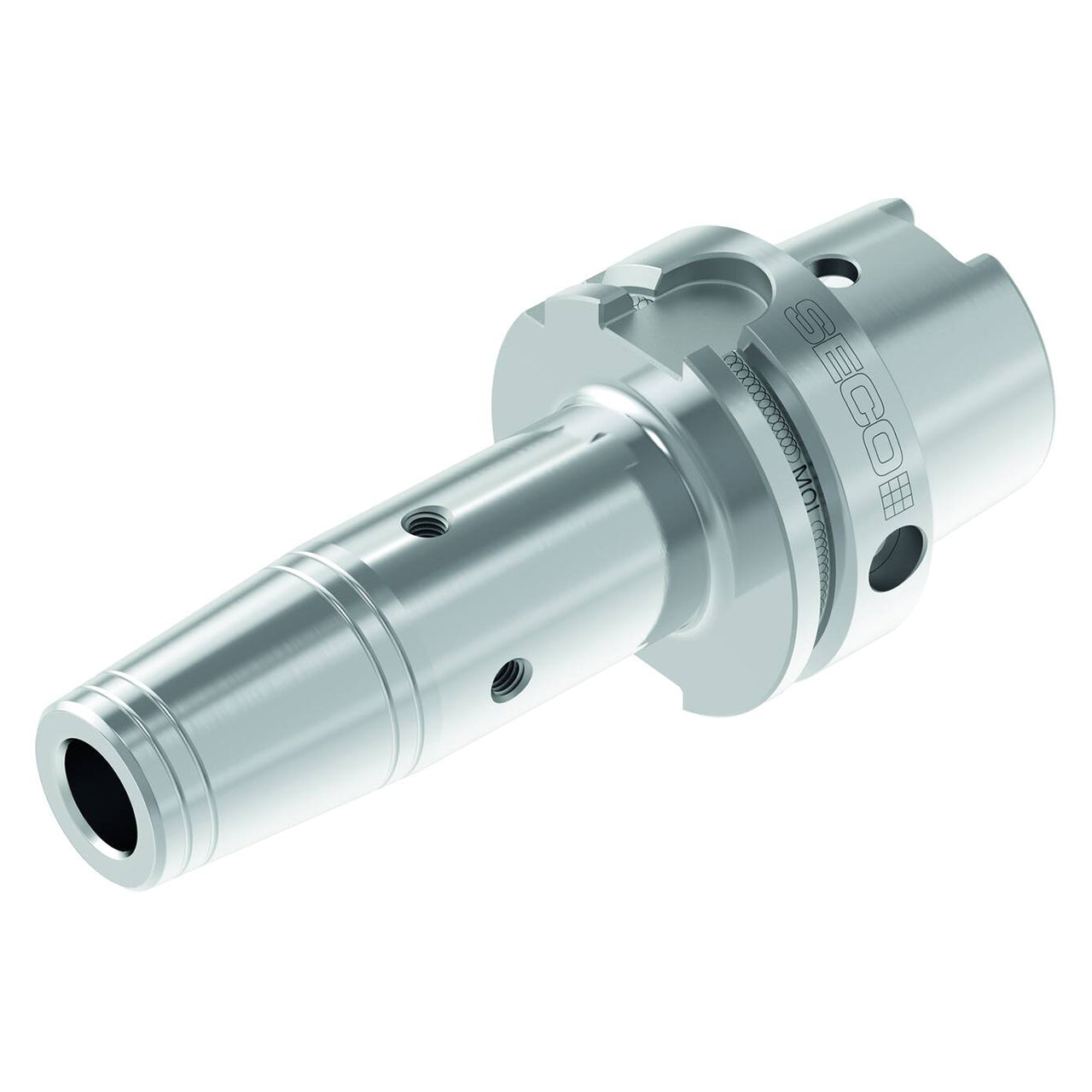

| Product Type | Shrink-Fit Tool Holder |
