Product Specifications
| Manufacturer Part Number | 03098585 |
| Body Diameter 1 (Decimal Inch) | 0.827" |
| Body Diameter 1 (mm) | 21.00mm |
| Body Diameter 2 (Decimal Inch) | 1.063" |
| Body Diameter 2 (mm) | 27.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (mm) | 8.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Thread Diameter Size | M6x1 |
| Body Length (Decimal Inch) | 2.205" |
| Body Length (mm) | 56.00mm |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Clamping Length (Decimal Inch) | 1.024" |
| Clamping Length (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 5.315" |
| Overall Length (mm) | 135.00mm |
| Connection Bore Depth (mm) | 38.00mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.413" |
| Radial Location (mm) | 10.50mm |

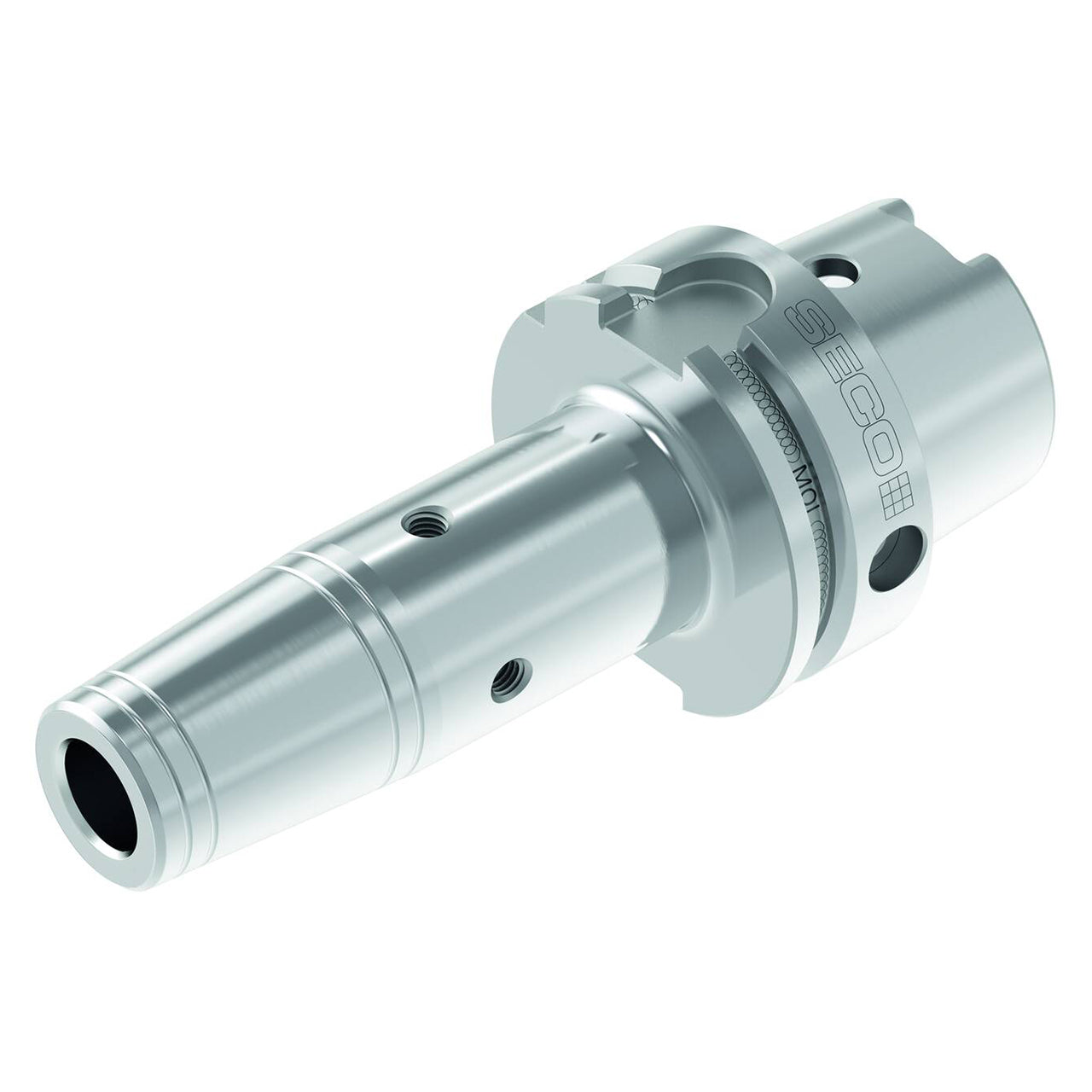

| Product Type | Shrink-Fit Tool Holder |
