Product Specifications
| Manufacturer Part Number | 03098422 |
| Body Diameter 1 (Decimal Inch) | 1.299" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.654" |
| Body Diameter 2 (mm) | 42.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Thread Diameter Size | M10x1 |
| Body Length (Decimal Inch) | 5.276" |
| Body Length (mm) | 134.00mm |
| Protruding Length (Decimal Inch) | 6.299" |
| Protruding Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 7.559" |
| Overall Length (mm) | 192.00mm |
| Connection Bore Depth (mm) | 55.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.709" |
| Radial Location (mm) | 18.00mm |

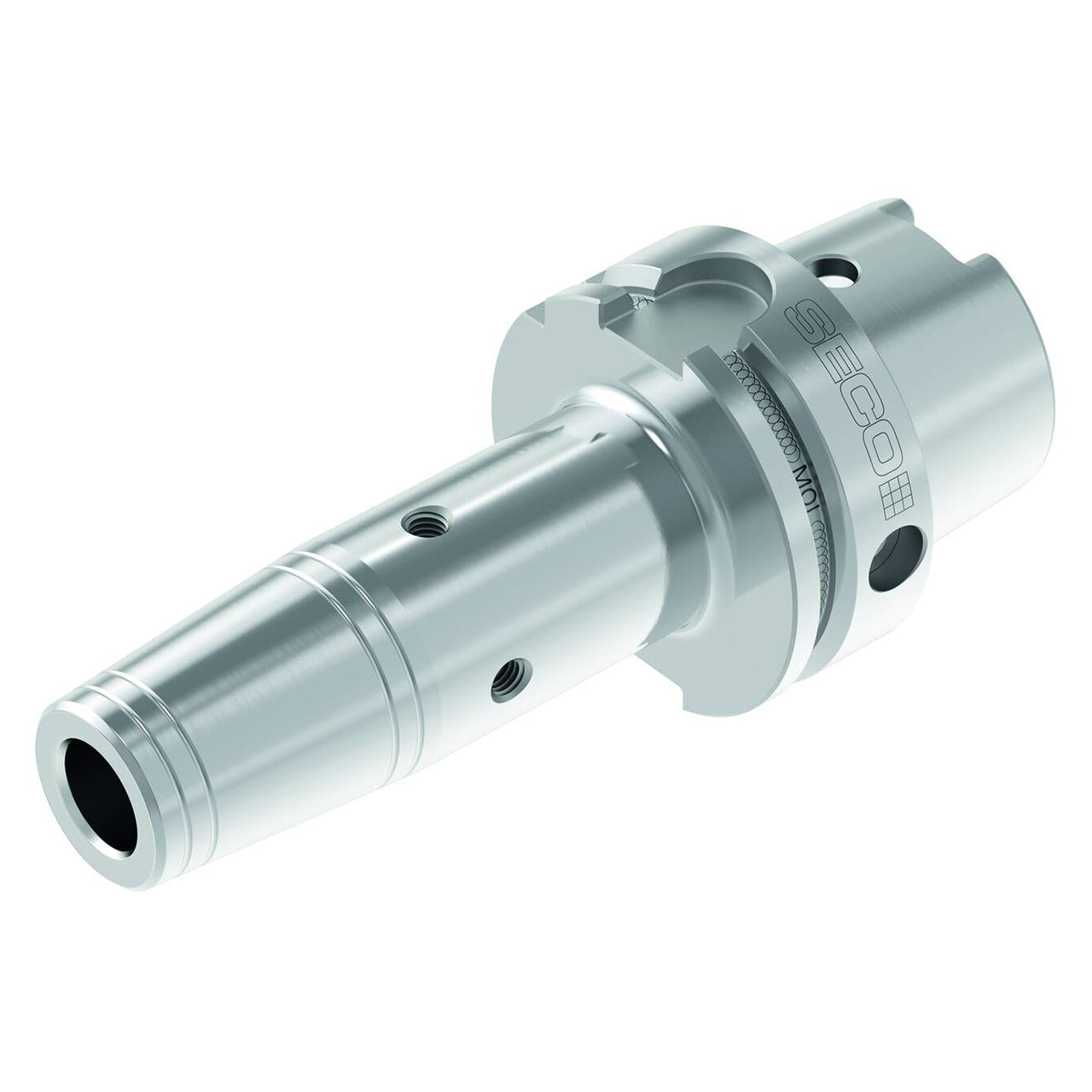

| Product Type | Shrink-Fit Tool Holder |
