Product Specifications
| Manufacturer Part Number | 03080773 |
| Cutting Diameter (Decimal Inch) | 2.125" |
| Cutting Diameter (mm) | 53.98mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.086" |
| Minimum Cutting Diameter Internal (mm) | 52.98mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 2.164" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Flange Diameter (Decimal Inch) | 2.337" |
| Flange Diameter (mm) | 59.35mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Length (Decimal Inch) | 2.625" |
| Shank Length (mm) | 66.68mm |
| Usable Length (Decimal Inch) | 4.250" |
| Usable Length (mm) | 107.95mm |
| Overall Length (Decimal Inch) | 8.056" |
| Overall Length (mm) | 204.63mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.020" |
| Adjustment Limit Minimum (mm) | 0.50mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.020" |
| Adjustment Limit Maximum (mm) | 0.50mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

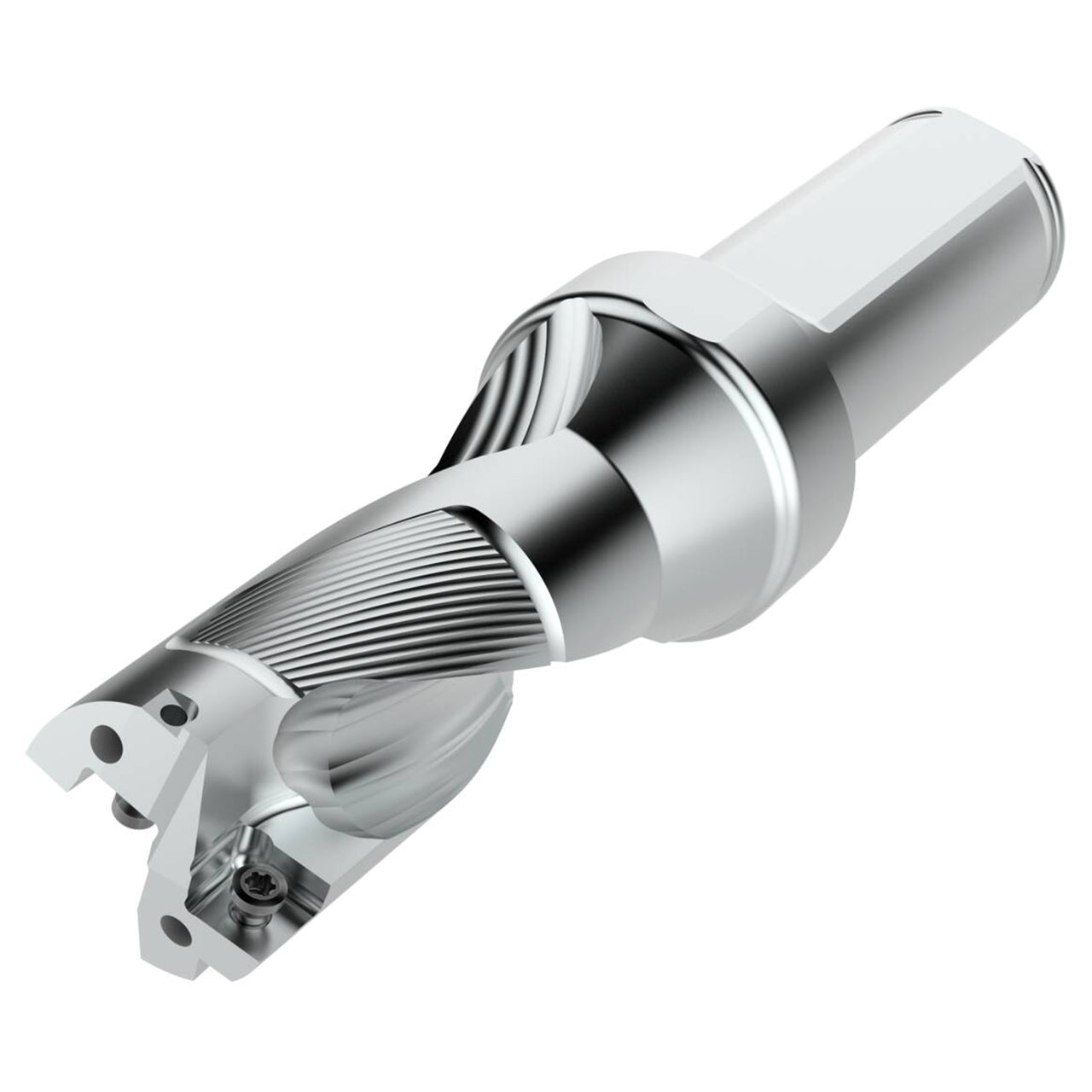

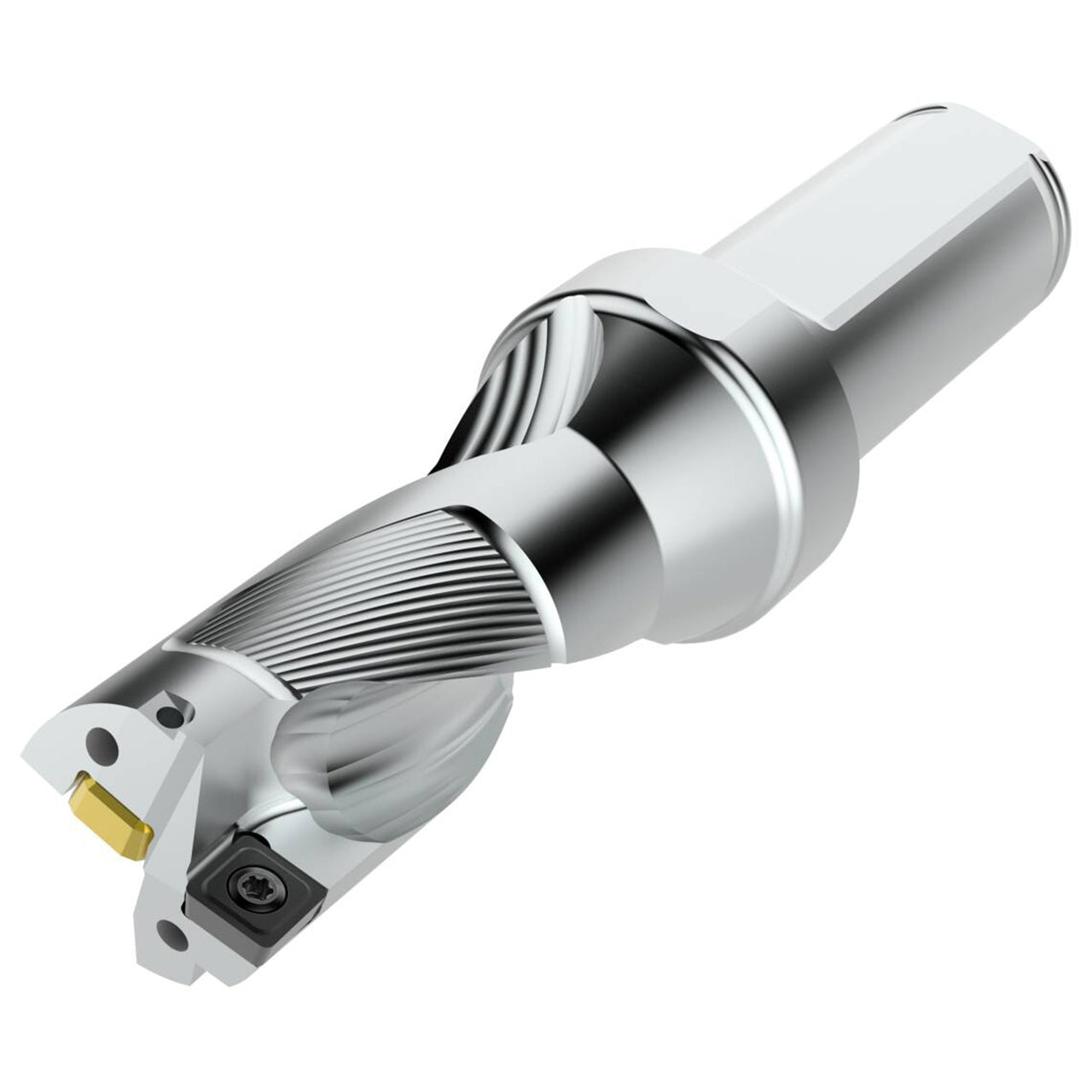

| Product Type | Indexable Insert Drill |
