Product Specifications
| Manufacturer Part Number | 03080577 |
| Cutting Diameter (Decimal Inch) | 1.875" |
| Cutting Diameter (mm) | 47.63mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.836" |
| Minimum Cutting Diameter Internal (mm) | 46.63mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.914" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Flange Diameter (Decimal Inch) | 1.969" |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Length (Decimal Inch) | 2.625" |
| Shank Length (mm) | 66.68mm |
| Usable Length (Decimal Inch) | 5.630" |
| Usable Length (mm) | 143.00mm |
| Overall Length (Decimal Inch) | 9.436" |
| Overall Length (mm) | 239.68mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.020" |
| Adjustment Limit Minimum (mm) | 0.50mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.020" |
| Adjustment Limit Maximum (mm) | 0.50mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

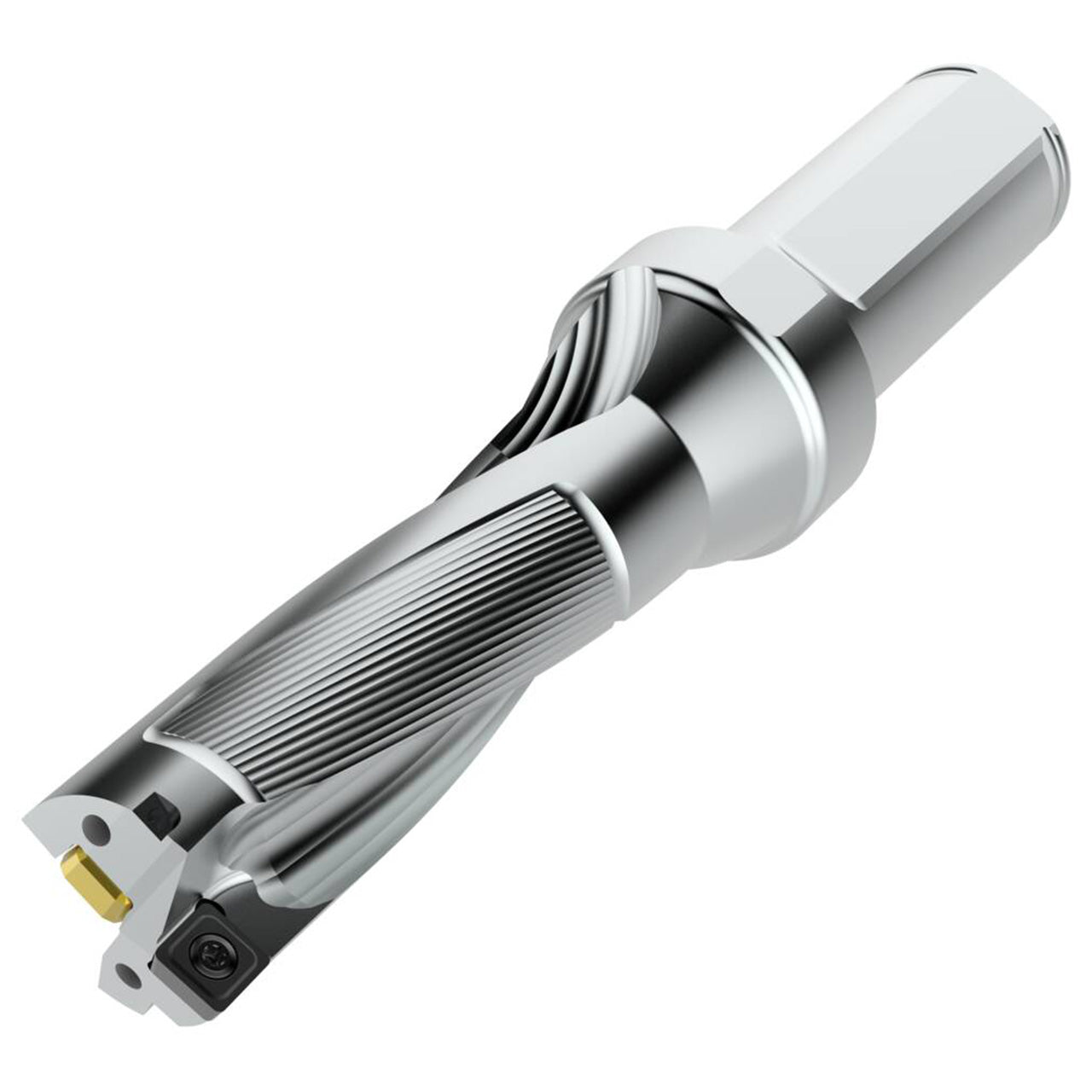

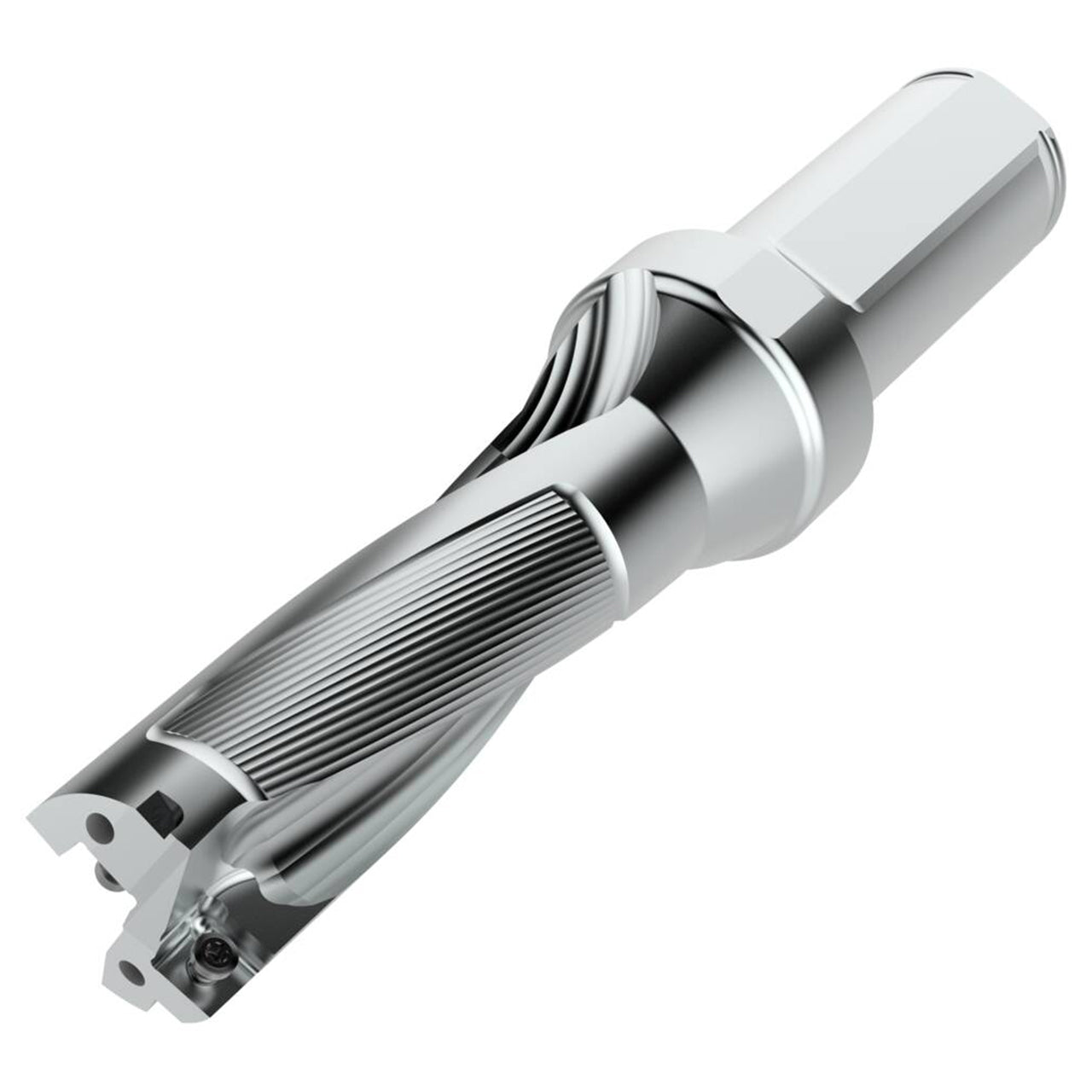

| Product Type | Indexable Insert Drill |
