Product Specifications
| Manufacturer Part Number | 03080488 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.615" |
| Minimum Cutting Diameter Internal (mm) | 15.62mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 0.656" |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Flange Diameter (Decimal Inch) | 1.378" |
| Flange Diameter (mm) | 35.00mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Shank Length (Decimal Inch) | 2.250" |
| Shank Length (mm) | 57.15mm |
| Usable Length (Decimal Inch) | 1.880" |
| Usable Length (mm) | 47.75mm |
| Overall Length (Decimal Inch) | 5.311" |
| Overall Length (mm) | 134.90mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.005" |
| Adjustment Limit Minimum (mm) | 0.13mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.015" |
| Adjustment Limit Maximum (mm) | 0.39mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

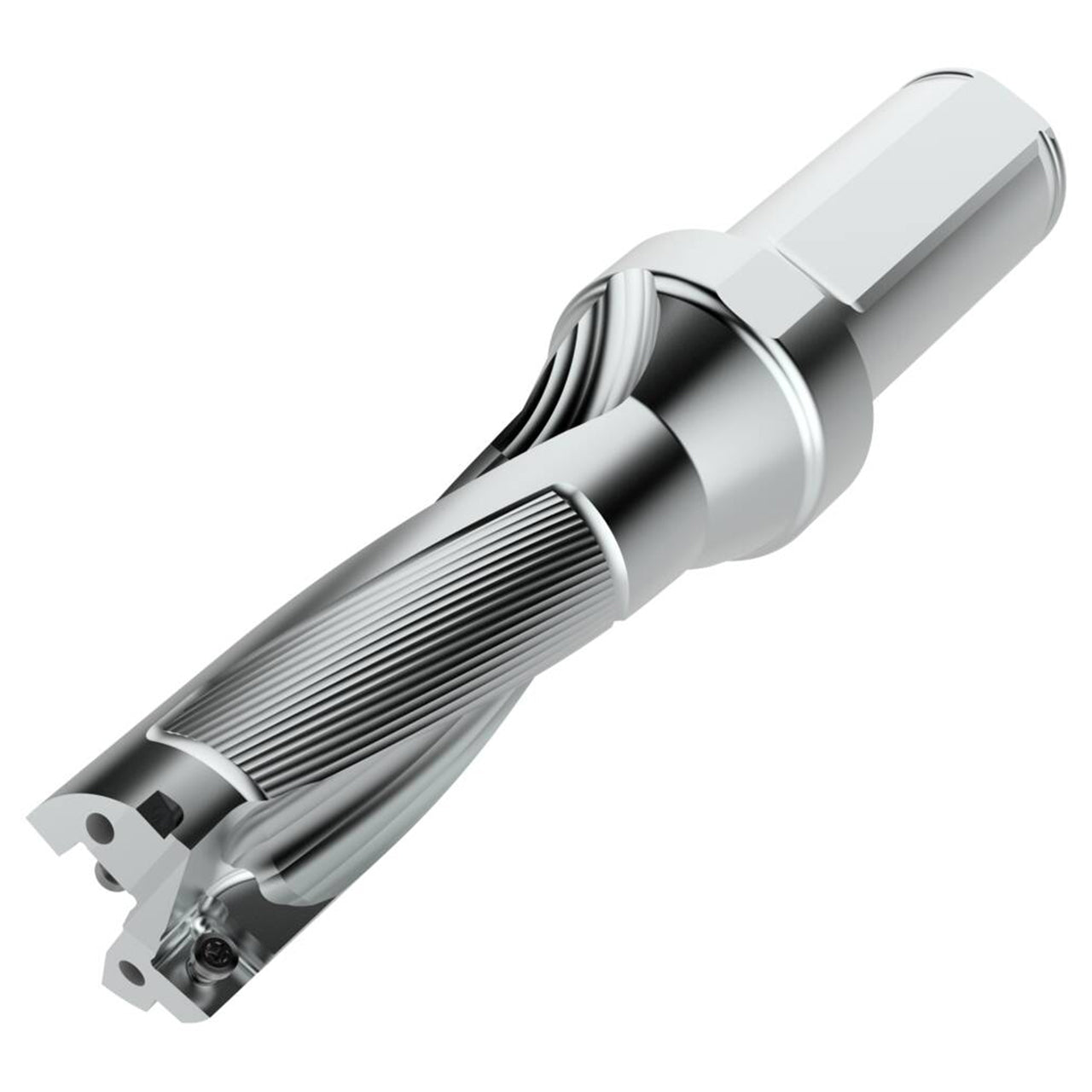

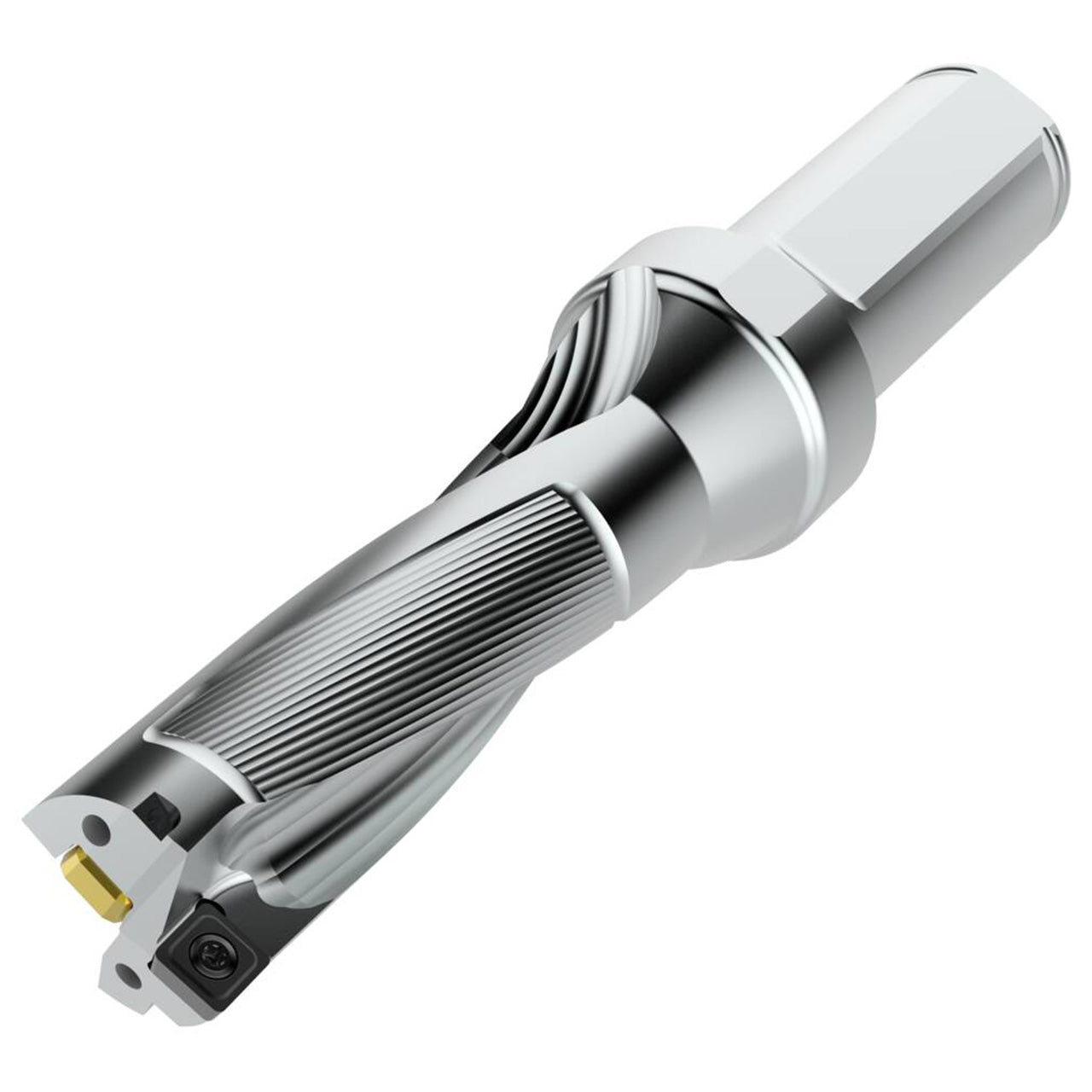

| Product Type | Indexable Insert Drill |
