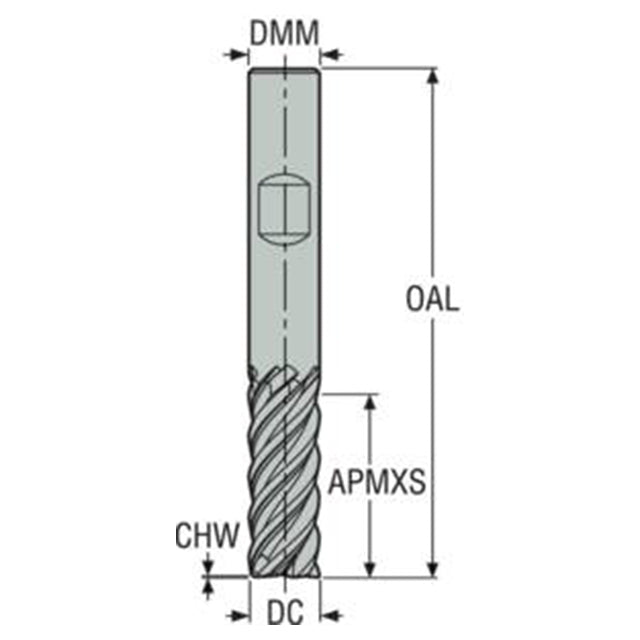

Product Specifications
| Manufacturer Part Number | 03067398 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter 1 (mm) | 12.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.69mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Overall Length (mm) | 83.00mm |
| Cutting Edge Effective Length (mm) | 30.00mm |
| Corner Chamfer Width (mm) | 0.25mm |
| Maximum Depth of Cut (mm) | 30.00mm |
| Shank Type | Weldon |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | JS565 |
| Cutting Geometry Type Technical | JS565 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 48 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 8 Degree |
| Axial Rake Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 5 |
| Material | Carbide |
| Coating | NXT |

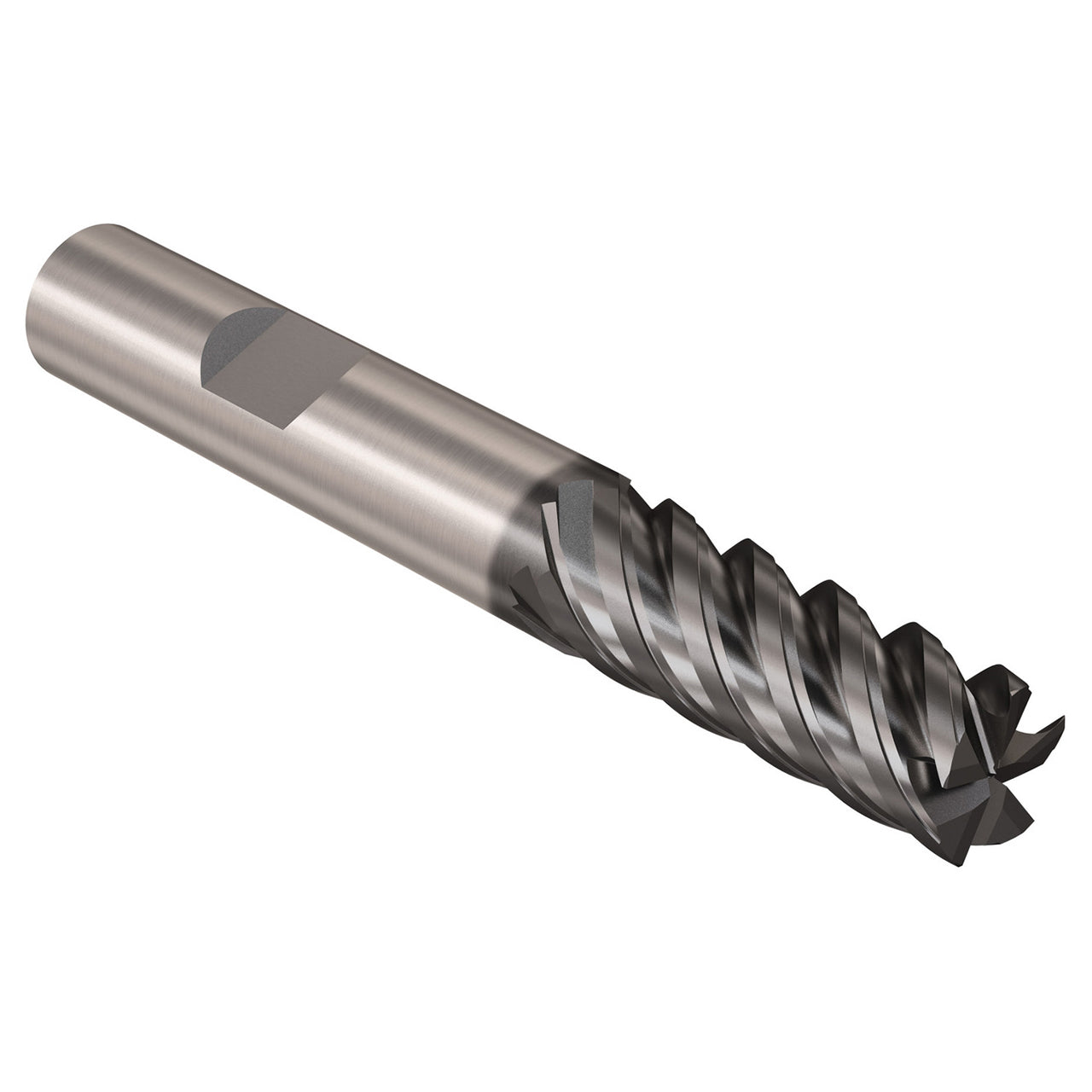

| Product Type | Corner Chamfer End Mill |
