Product Specifications
| Manufacturer Part Number | 03062826 |
| Body Diameter (Decimal Inch) | 2.362" |
| Body Diameter (mm) | 60.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.362" |
| Connection Diameter Machine Side (mm) | 60.00mm |
| Shank Diameter (Decimal Inch) | 2.362" |
| Shank Diameter (mm) | 60.00mm |
| Thread Diameter Size | G 3/4 |
| Body Length (Decimal Inch) | 11.850" |
| Body Length (mm) | 301.00mm |
| Functional Length (Decimal Inch) | 21.299" |
| Functional Length (mm) | 541.00mm |
| Shank Length (Decimal Inch) | 9.449" |
| Shank Length (mm) | 240.00mm |
| Overall Length (Decimal Inch) | 21.299" |
| Overall Length (mm) | 541.00mm |
| Coolant Entry Thread Size | G 3/4 |

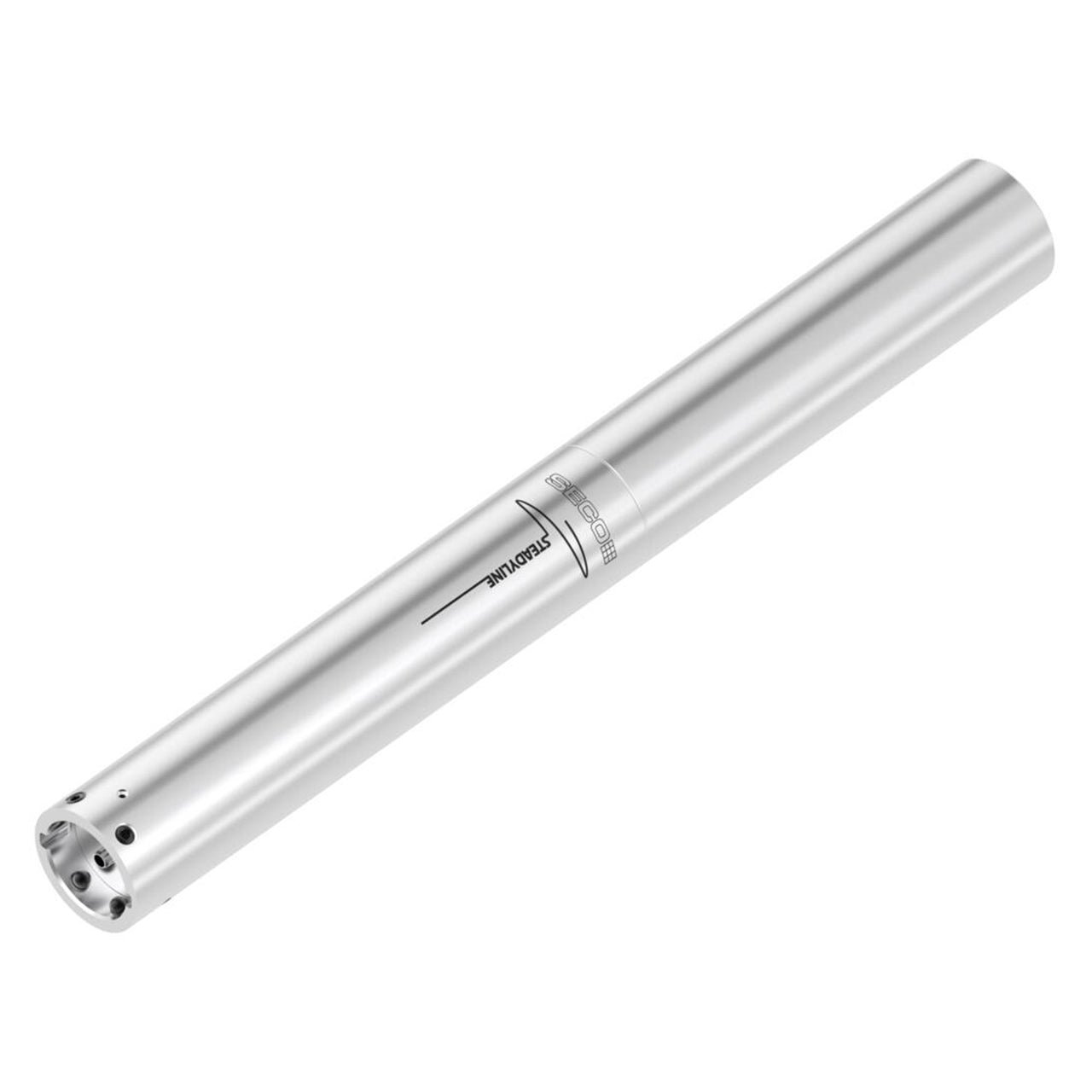

| Product Type | Shrink-Fit Tool Holder |
